Table 52 describes the two configurations of this connector/jumper block.

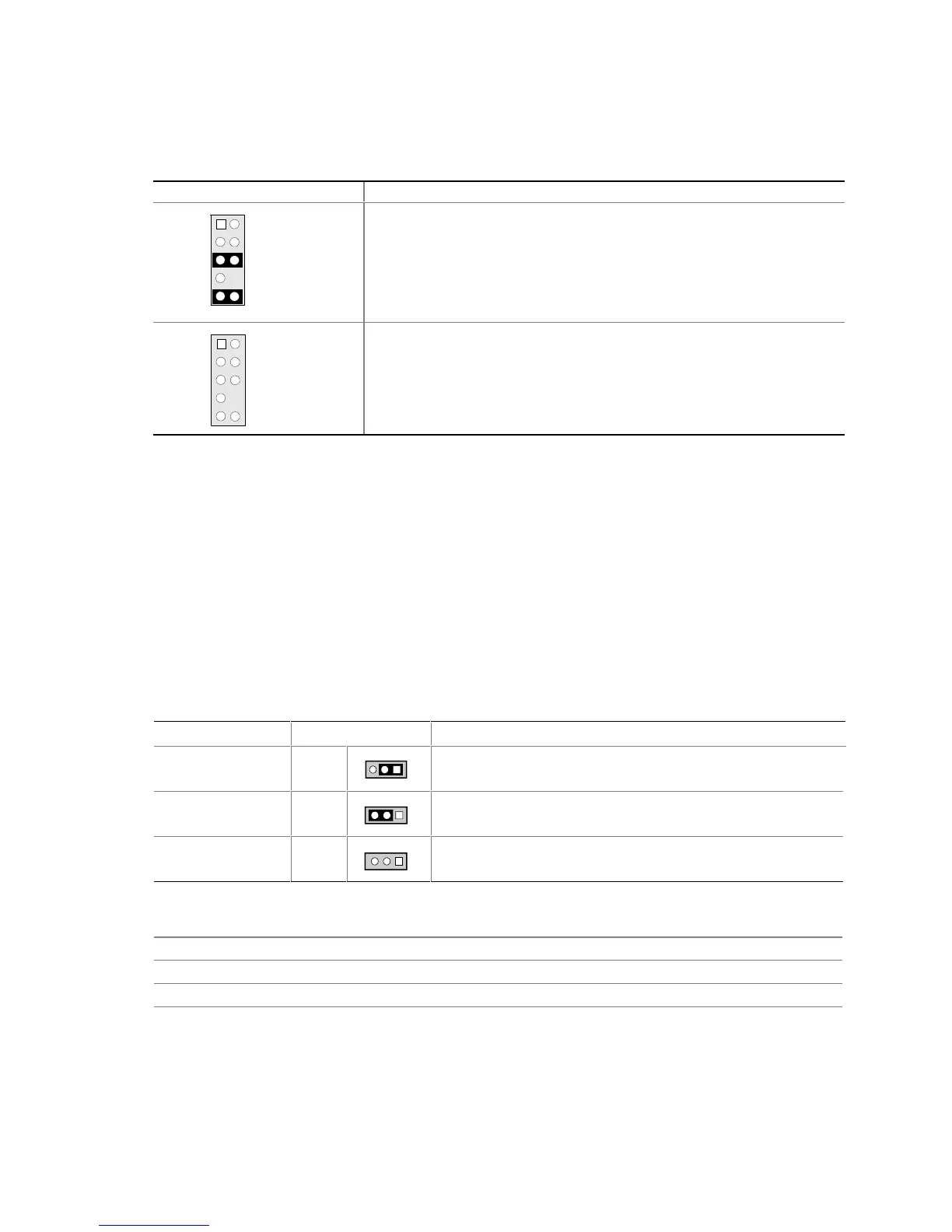

Table 52. Front Panel Audio Connector or Jumper Block
Jumper Setting Configuration
1
34
6
9
7
5
2
10
5 and 6
9 and 10
Front out signals if 6-channel audio (line out signals if 2-channel audio)
are routed to the back panel line out connector. The back panel audio line
out connector is shown in Figure 11 on page 52.
1
34
6
9
7
5
2
10
No jumpers
installed
Mic in and front out signals if 6-channel audio (line out signals if 2-channel
audio) are available for connection to front panel audio connectors. Table
45 on page 69 lists the names of the signals available on this connector
when no jumpers are installed.
✏
NOTE
When the jumpers are removed and this connector is used for front panel audio, the back panel
audio line out and mic in connectors are disabled.
2.9.2 BIOS Setup Configuration Jumper Block
The 3-pin jumper block determines the BIOS Setup program’s mode. Table 53 describes the
jumper settings for the three modes: normal, configure, and recovery. When the jumper is set to
configuration mode and the computer is powered-up, the BIOS compares the processor version and
the microcode version in the BIOS and reports if the two match.
Table 53. BIOS Setup Configuration Jumper Settings
Function/Mode Jumper Setting Configuration
Normal
1-2
13
The BIOS uses current configuration information and
passwords for booting.
Configure
2-3
13
After the POST runs, Setup runs automatically. The
maintenance menu is displayed.
Recovery
None
13
The BIOS attempts to recover the BIOS configuration. A
recovery diskette is required.
For information about Refer to
How to access the BIOS Setup program Section 4.1, page 97
The maintenance menu of the BIOS Setup program Section 4, page 97
BIOS recovery Section 3.7, page 92
