2.8.3 External I/O Connectors

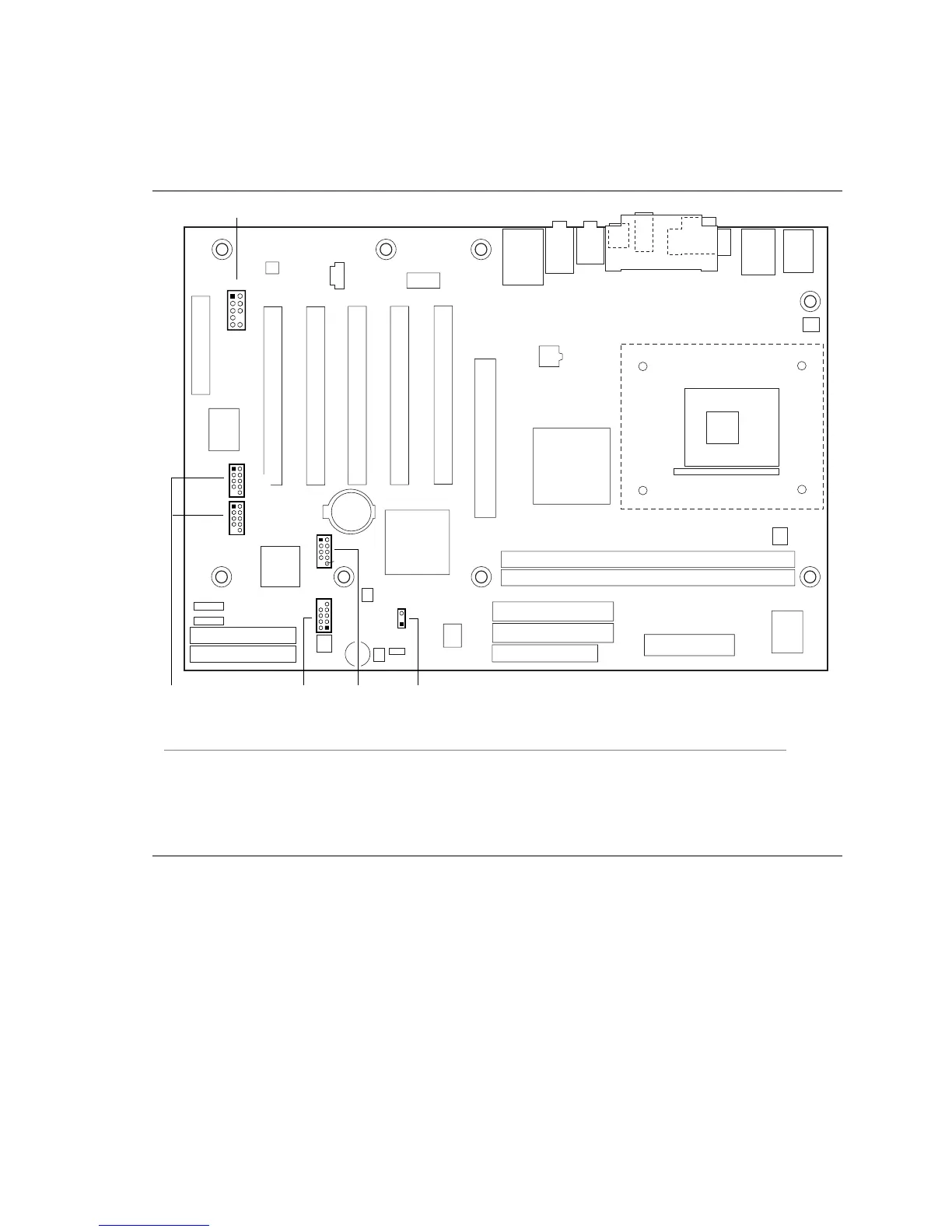

Figure 15 shows the locations of the external I/O connectors.
OM15035
A
2
10
9
1
1
8
2
2
10
1
7
CD
B
1
9
2
10
1
7
2
10
1
7
E
1
Item Description For more information see:
A Front panel audio Table 45
B Auxiliary front panel power/sleep/message-waiting LED Table 51
C Front panel USB [black] Table 46
D Front panel Table 48
E Front panel IEEE 1394a-2000 [white] (optional) Table 47
Figure 15. External I/O Connectors
