Intel Desktop Board D845PEBT2 Technical Product Specification
70
2.8.3.1 Front Panel Connector
This section describes the functions of the front panel connector. Table 48 lists the signal names
of the front panel connector.
Table 48. Front Panel Connector
Pin Signal In/Out Description Pin Signal In/Out Description
Hard Drive Activity LED Power LED
1 HD_PWR Out Hard disk LED pull-up
(330 Ω) to +5 V
2 HDR_BLNK_
GRN
Out Front panel green
LED
3 HAD# Out Hard disk active LED 4 HDR_BLNK_
YEL
Out Front panel yellow
LED
Reset Switch On/Off Switch
5 Ground Ground 6 FPBUT_IN In Power switch
7 FP_RESET# In Reset switch 8 Ground Ground
Power Not Connected
9 +5 V Power 10 N/C Not connected
OM15075
3
5
7
9
2
4
6
8
1
Hard Drive
Activity LED
Reset
Switch
+5 V DC
N/C
Power
Switch
Power
LED

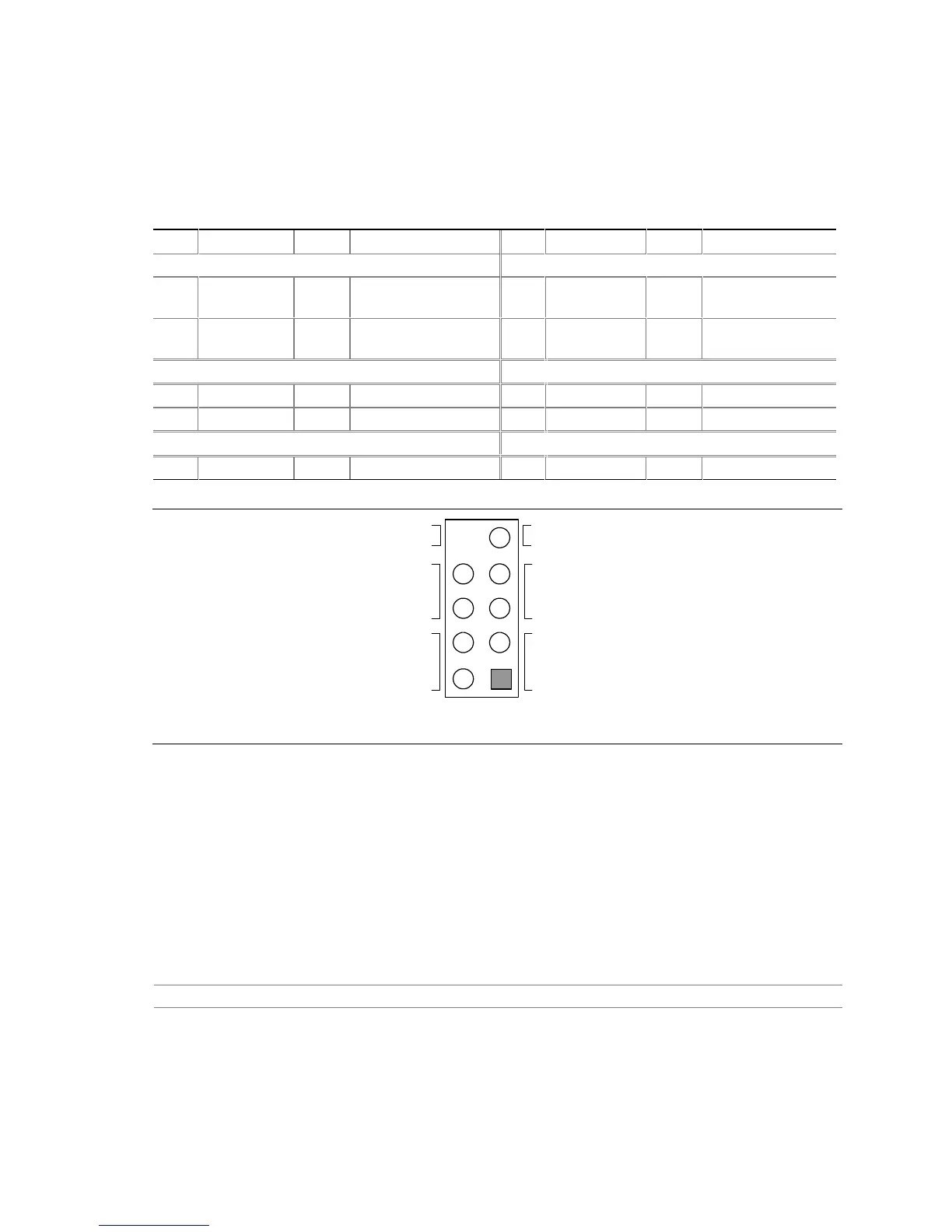

Figure 16. Front Panel Connector Pins
2.8.3.1.1 SCSI Hard Drive Activity LED Connector
Pins 1 and 3 can be connected to an LED to provide a visual indicator that data is being read from
or written to a hard drive. Proper LED function requires one of the following:
• An SATA hard drive connected to an onboard SATA connector
• An IDE hard drive connected to an onboard IDE connector
• A add-in hard drive connected to the SCSI hard drive activity LED connector
For information about Refer to
The SCSI hard drive activity LED connector Section 1.7.3.2, page 26
