Desktop Board Features
17
Legacy Input/Output (I/O) Controller
The Winbond 83627DHG-P legacy I/O controller features the following:
• Low pin count (LPC) interface
• One serial port interface via an onboard header
• Serial IRQ interface compatible with serialized IRQ support for PCI systems
• Intelligent power management, including a programmable wake up event interface
• PCI power management support
LAN Subsystem
The LAN subsystem includes:
• Intel ICH7
• Realtek 8111D Gigabit Ethernet Controller for operation at 10/100/1000 Mb/s
• RJ-45 LAN connector with integrated status LEDs
The subsystem features:
• CSMA/CD protocol engine
• LAN connect interface between ICH7 and the LAN controller
• PCI bus power management
Related Links:
Go to the following link for information about LAN software and drivers:
http://support.intel.com/support/motherboards/desktop
RJ-45 LAN Connector LEDs
Two LEDs are built into the RJ-45 LAN connector located on the back panel (see
Figure 2). These LEDs indicate th
e status of the LAN.

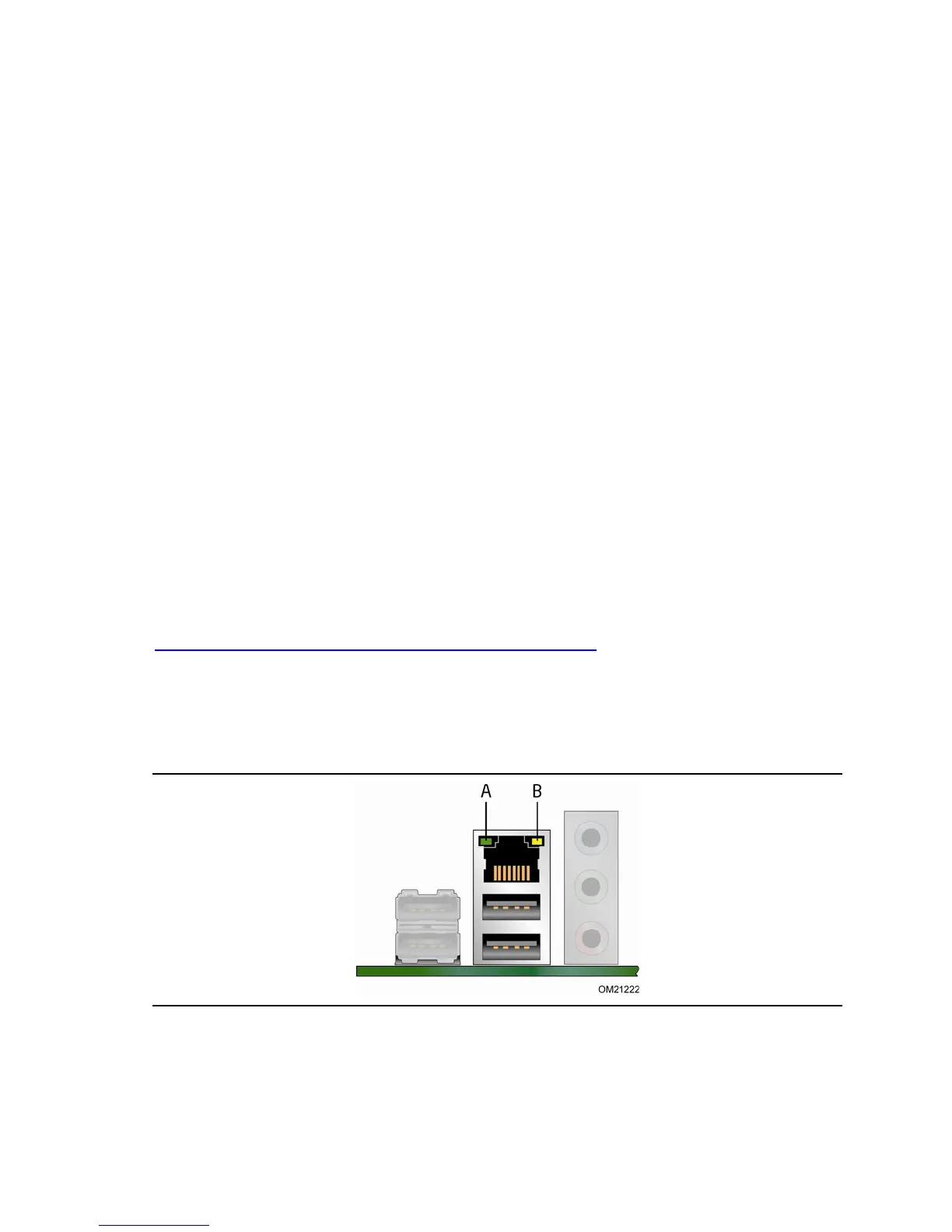

Figure 2. LAN Connector LEDs
