Intel DG41TY Product Guide

Intel Desktop Board DG41TY Product Guide
38
To install a DIMM, follow these steps:
1. Observe the precautions in "Before You Begin" on page 27.
2. Turn off all peripheral devices connected to the
computer. Turn off the computer
and disconnect the AC power cord.
3. Remove the computer’s cover and locate the DIMM sockets (see Figure 15).

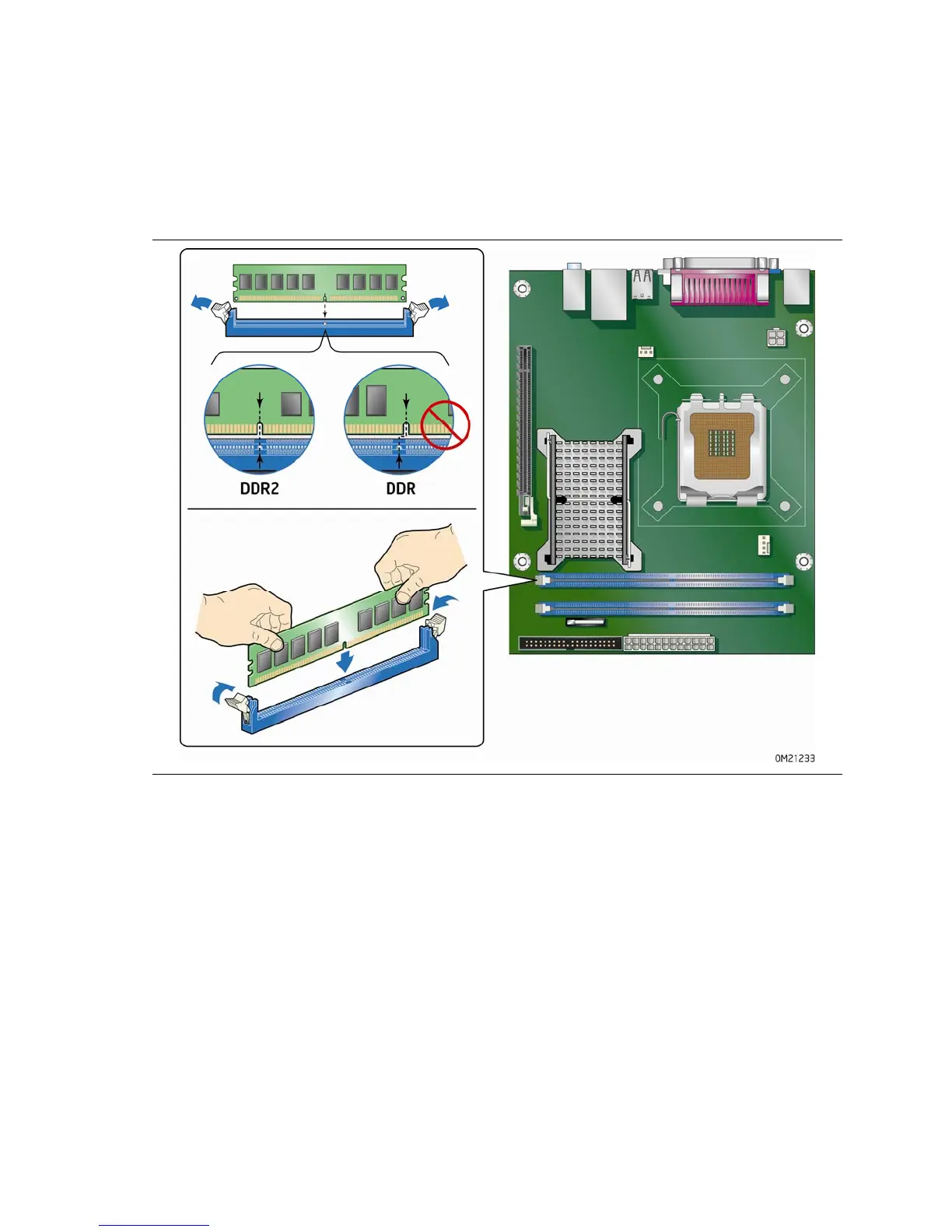

Figure 15. Installing a DIMM
4. Make sure the clips at either end of the DIMM socket(s) are pushed outward to the
open position.
5. Holding the DIMM by the edges, remove it from its anti-static package.
6. Position the DIMM above the socket. Align the small notch at the bottom edge of
the DIMM with the keys in the socket (see inset in Figure 15).

Intel DG41TY Specifications

General

Form Factor	MicroATX
Socket	LGA 775
Memory Type	DDR2
Memory Slots	2
Maximum Memory	8 GB
Graphics	Intel Graphics Media Accelerator X4500
LAN	10/100/1000 Mbps
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 1 x PCI
Storage Interface	4 x SATA 3.0 Gb/s
USB Ports	8 x USB 2.0
Video Outputs	VGA
RAID Support	No
IDE Ports	1 x IDE
Chipset	Intel G41 Express
