Intel DG41TY Product Guide

Installing and Replacing Desktop Board Components
35
Connecting the Processor Fan Heat Sink Cable
Connect the processor fan heat sink cable to the 4-pin processor fan header (see
Figure 12). A fan with a 4-pi
n connector as shown in Figure 12, A is recommended;
however, a fan with a 3-pin connector (Figure 12, B) can be used. However, since the
fan
with a 3-pin connector cannot use the onboard fan control, the fan will always
operate at full speed.

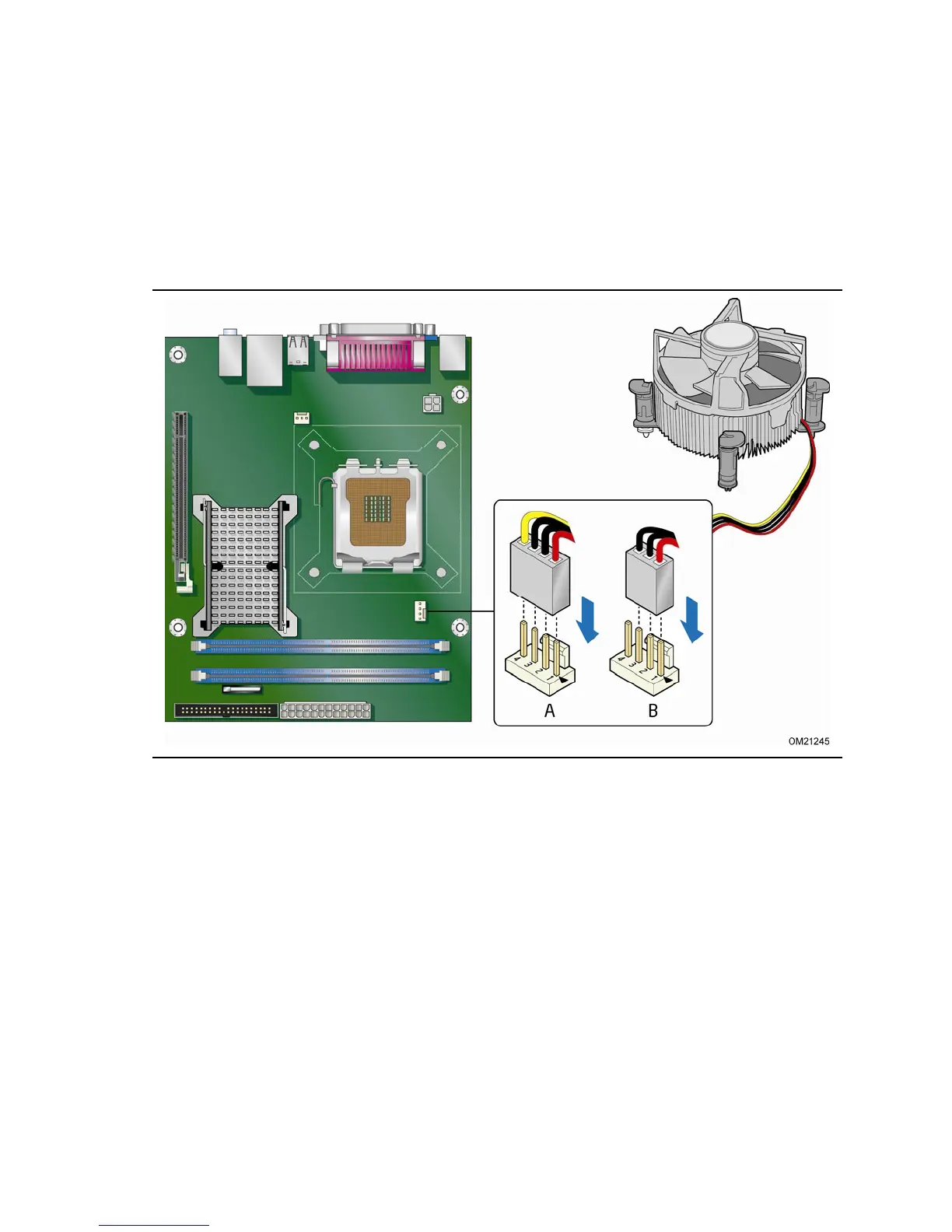

Figure 12. Connecting the Processor Fan Heat Sink Cable to the
Processor Fan Header

Intel DG41TY Specifications

General

Form Factor	MicroATX
Socket	LGA 775
Memory Type	DDR2
Memory Slots	2
Maximum Memory	8 GB
Graphics	Intel Graphics Media Accelerator X4500
LAN	10/100/1000 Mbps
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 1 x PCI
Storage Interface	4 x SATA 3.0 Gb/s
USB Ports	8 x USB 2.0
Video Outputs	VGA
RAID Support	No
IDE Ports	1 x IDE
Chipset	Intel G41 Express
