Intel DG41TY - Connecting to the Internal Headers and Connectors; Internal Headers and Connectors

Installing and Replacing Desktop Board Components
45
Connecting to the Internal Headers and
Connectors
Before connecting cables to the internal headers and connectors, observe the
precautions in “Before You Begin” on page 27. Figure 21 shows the location of the
internal headers and
connectors for Intel Desktop Board DG41TY.

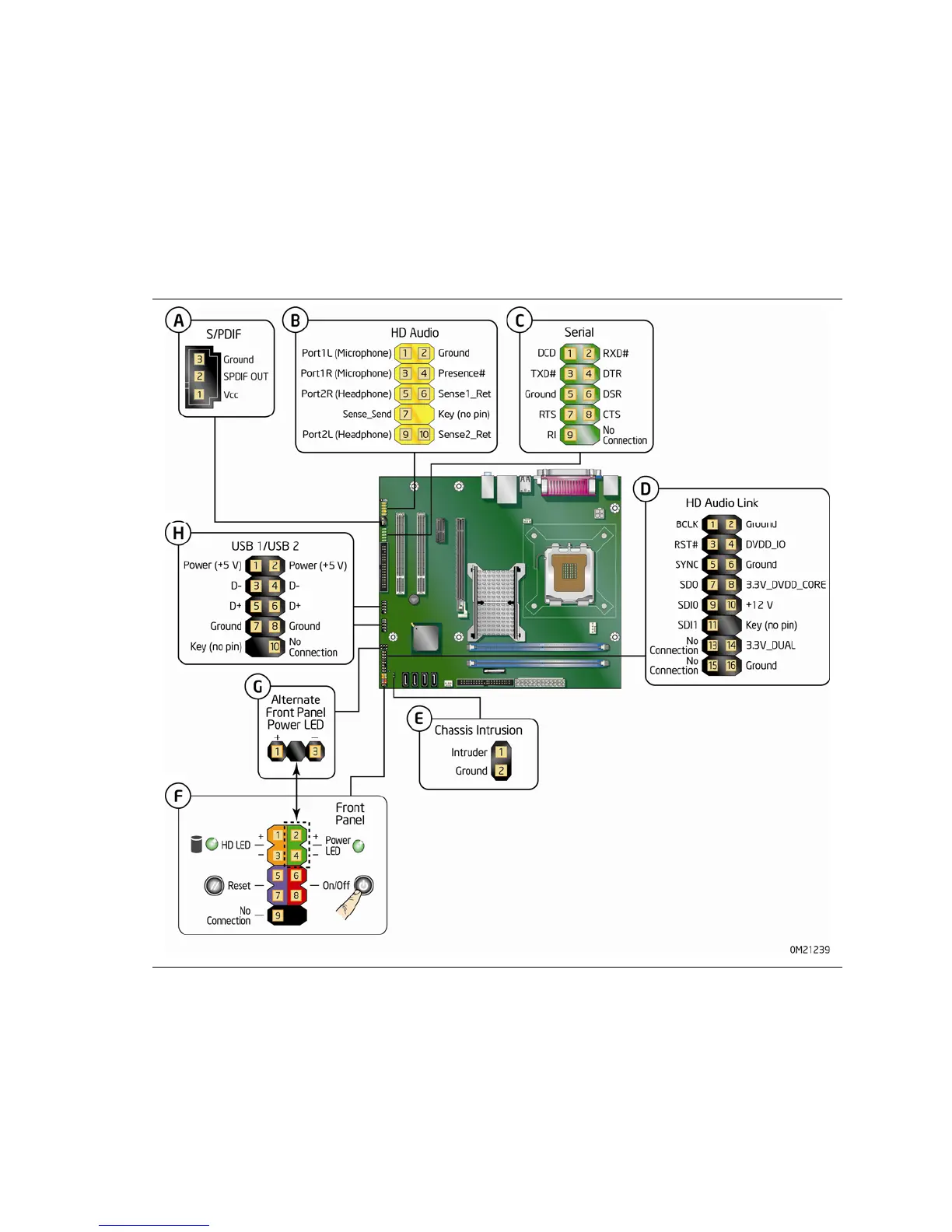

Figure 21. Internal Headers and Connectors
