Intel DG41TY Product Guide

Installing and Replacing Desktop Board Components
31
Installing and Removing a Processor
Instructions on how to install the processor to the Desktop Board are given below.
Installing a Processor
CAUTION
Before installing or removing the processor, make sure the AC power has been
removed by unplugging the power cord from the computer; the standby power LED
should not be lit (see Figure 3 on page 23). Failure to do so could damage the
processor and the boar
d.
To install a processor, follow these instructions:
1. Observe the precautions in "Before You Begin" on page 27.
2. Open the so
cket lever by pushing the lever down and away from the socket
(Figure 6, A and B).

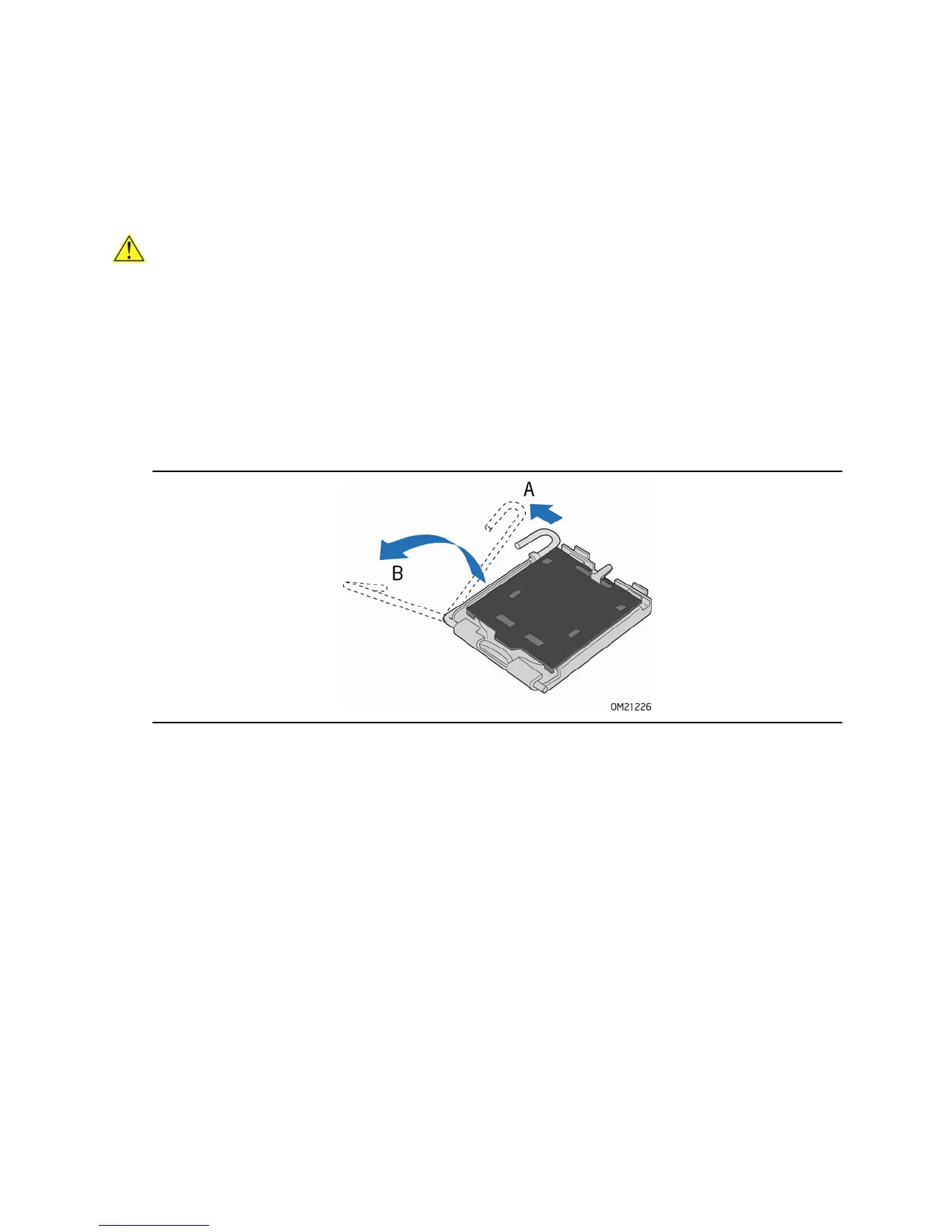

Figure 6. Lift the Socket Lever

Intel DG41TY Specifications

General

Form Factor	MicroATX
Socket	LGA 775
Memory Type	DDR2
Memory Slots	2
Maximum Memory	8 GB
Graphics	Intel Graphics Media Accelerator X4500
LAN	10/100/1000 Mbps
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 1 x PCI
Storage Interface	4 x SATA 3.0 Gb/s
USB Ports	8 x USB 2.0
Video Outputs	VGA
RAID Support	No
IDE Ports	1 x IDE
Chipset	Intel G41 Express
