Installing and Replacing Desktop Board Components
51
Connecting Chassis Fan and Power Supply
Cables
Connecting Chassis Fan Cables
Connect chassis fan cables to the 3-pin chassis fan headers on the Desktop Board.
Figure 23 shows the location of the chassis fa
n headers.

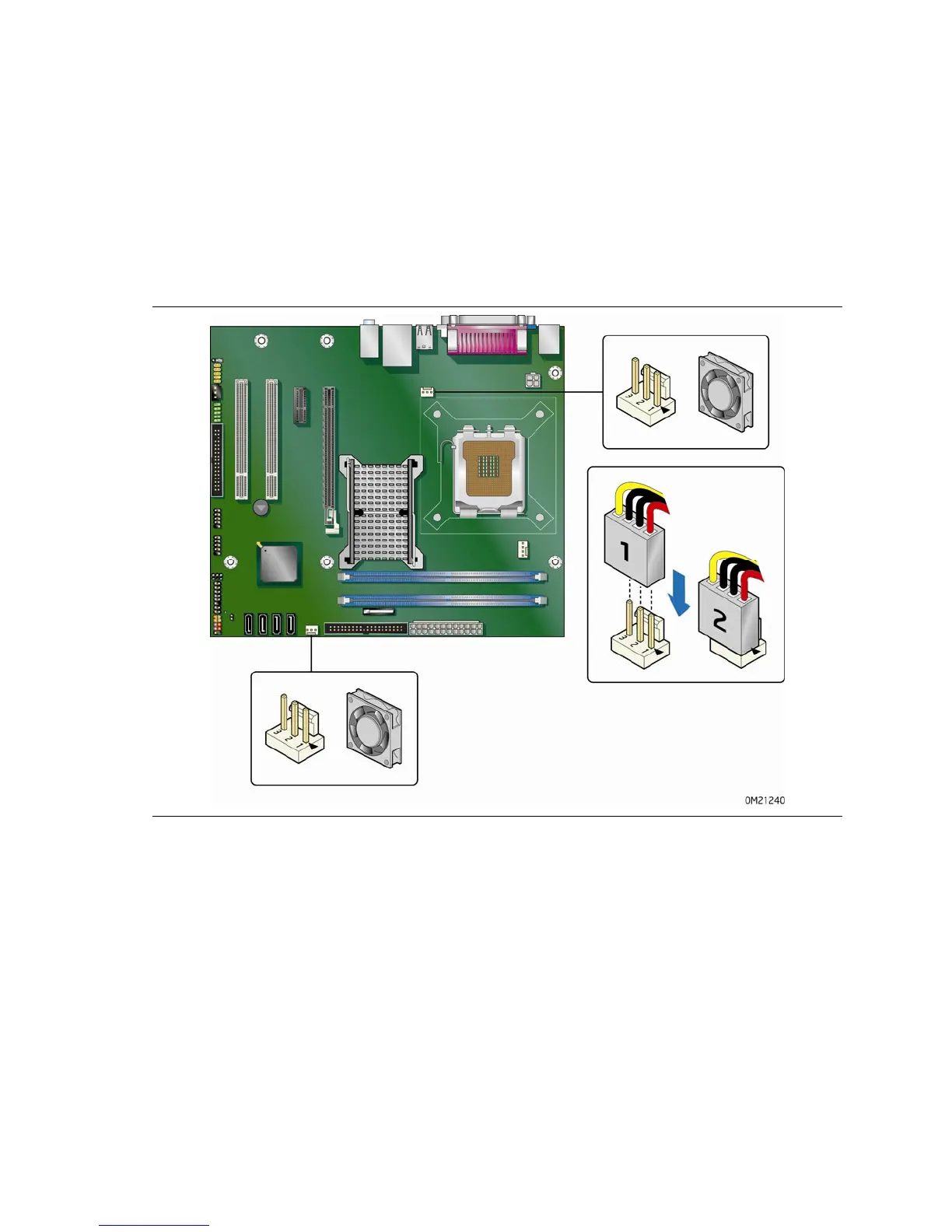

Figure 23. Location of the Chassis Fan Headers
