Connecting to the Back Panel Audio
Connectors
After installing the audio driver from the Intel Express Installer CD-ROM, the multi-
channel audio feature can be enabled. Figure 22 shows the back panel audio
connectors
. The default connector assignments are shown in the figure. Refer to
Table 3 on page 16 for audio connector retasking information.
Item Description
A Line In
B Line Out
C Mic In

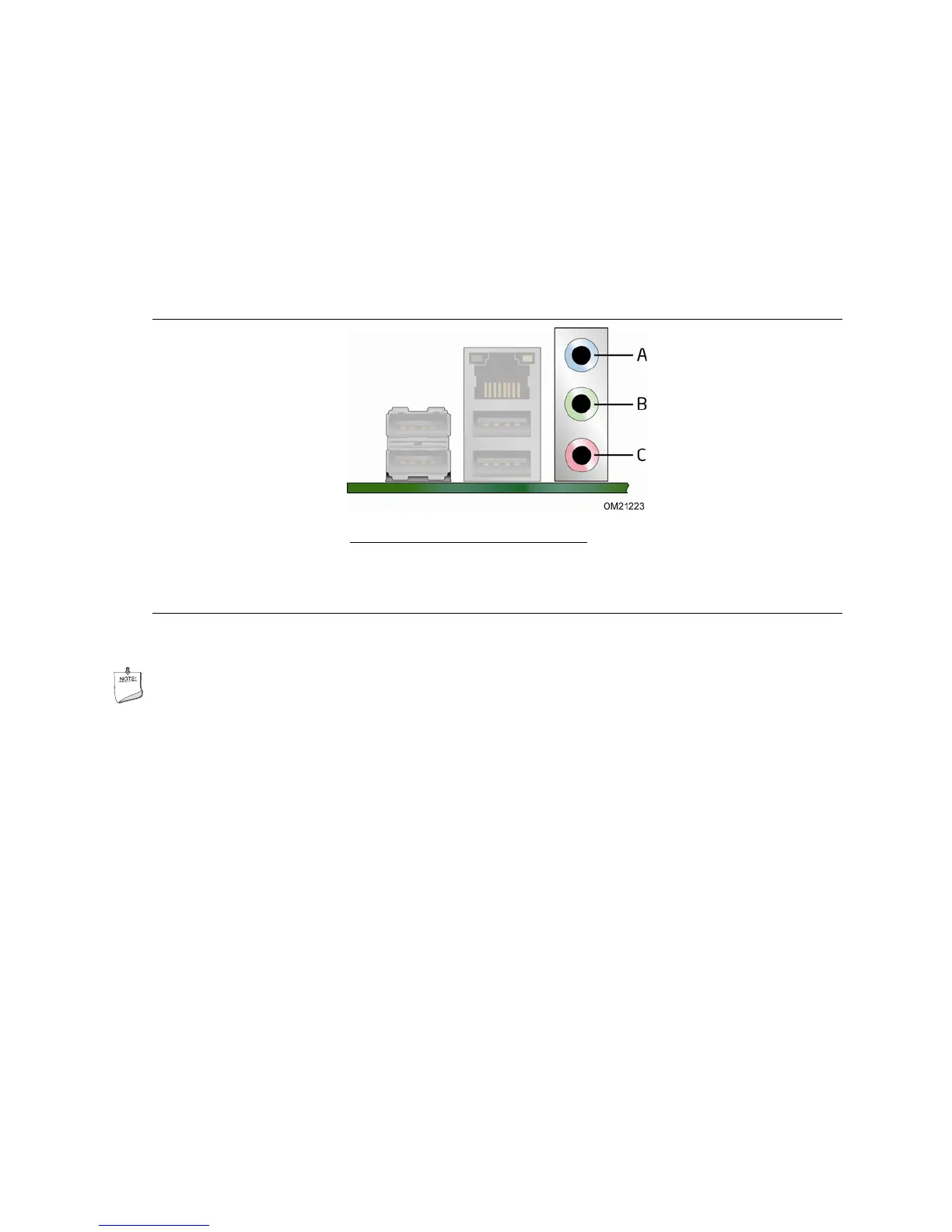

Figure 22. Back Panel Audio Connectors
NOTE
The back panel line out connector is designed to power either headphones or amplified
speakers only. Poor audio quality may occur if passive (non-amplified) speakers are
connected to this output.

Intel DG41TY Specifications

General

Form Factor	MicroATX
Socket	LGA 775
Memory Type	DDR2
Memory Slots	2
Maximum Memory	8 GB
Graphics	Intel Graphics Media Accelerator X4500
LAN	10/100/1000 Mbps
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 1 x PCI
Storage Interface	4 x SATA 3.0 Gb/s
USB Ports	8 x USB 2.0
Video Outputs	VGA
RAID Support	No
IDE Ports	1 x IDE
Chipset	Intel G41 Express
