Intel Desktop Board DG41TY Product Guide
42
Connecting the Diskette Drive Cable
The diskette drive cable can be used to connect a single diskette drive to the Desktop
Board.
For correct function of the cable:
1. Observe the precautions in "Before You Begin" on page 27.
2. Attach
the cable end labeled P1 to the diskette drive connector on the Intel
Desktop Board (Figure 18, A).
3. Attach the c
able end labeled P2 to the diskette drive (Figure 18, B).

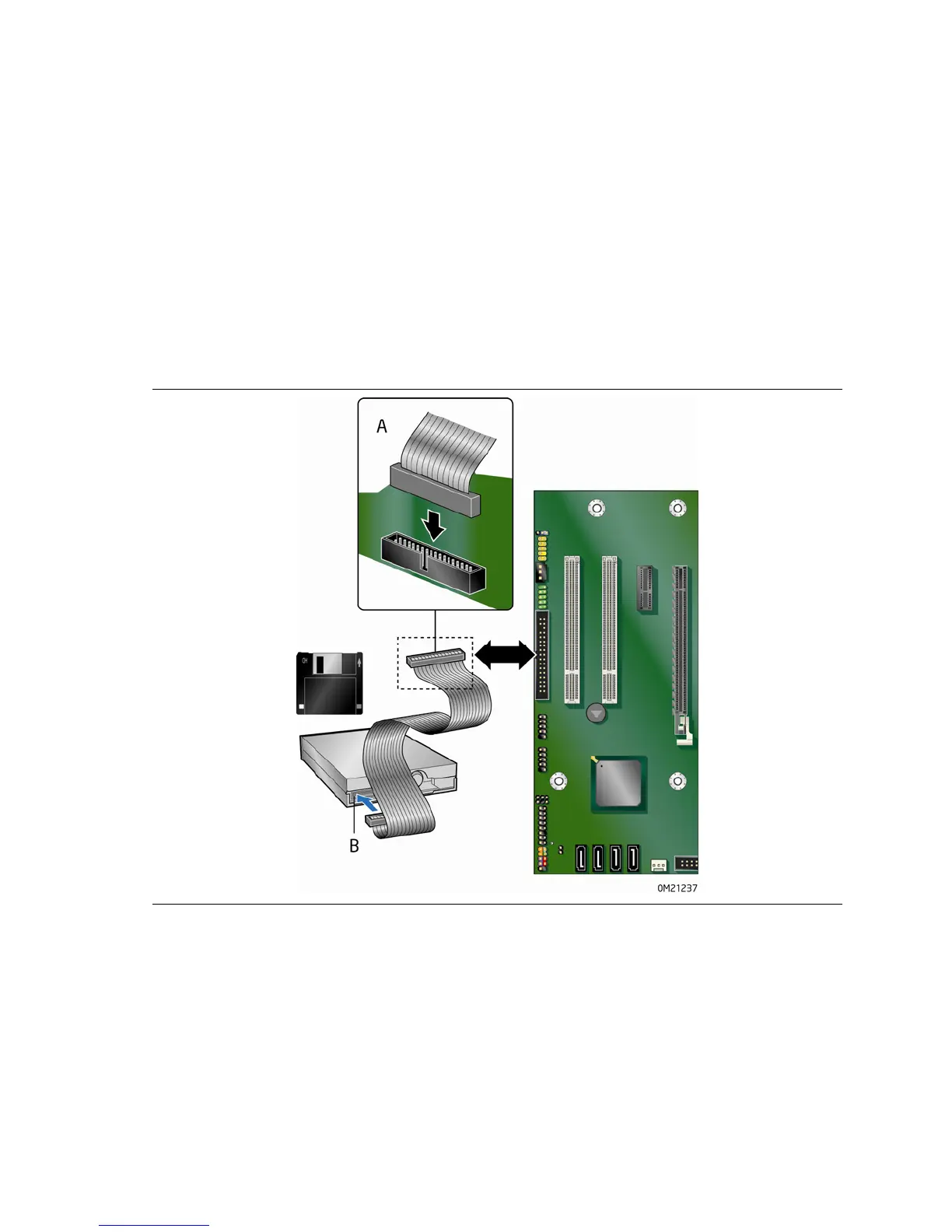

Figure 18. Connecting the Diskette Drive Cable

Intel DG41TY Specifications

General

Form Factor	MicroATX
Socket	LGA 775
Memory Type	DDR2
Memory Slots	2
Maximum Memory	8 GB
Graphics	Intel Graphics Media Accelerator X4500
LAN	10/100/1000 Mbps
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 1 x PCI
Storage Interface	4 x SATA 3.0 Gb/s
USB Ports	8 x USB 2.0
Video Outputs	VGA
RAID Support	No
IDE Ports	1 x IDE
Chipset	Intel G41 Express
