Intel DG41TY Product Guide

Installing and Replacing Desktop Board Components
37
Installing DIMMs

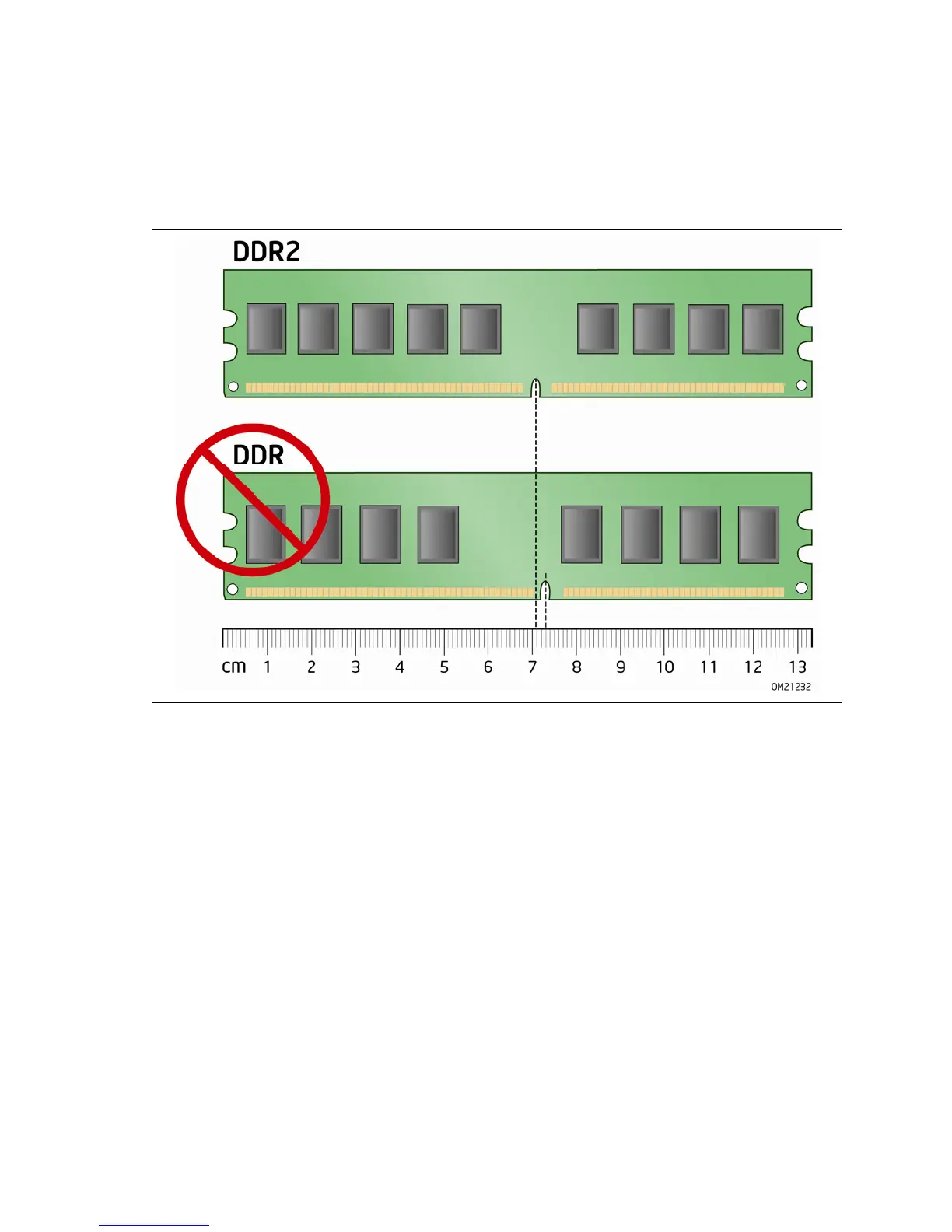

To make sure you have the correct DIMM, place it on the illustration of the DDR2
DIMM in Figure 14. All the notches should match with the DDR2 DIMM.
Figure 14. Use DDR2 DIMMs

Intel DG41TY Specifications

General

Form Factor	MicroATX
Socket	LGA 775
Memory Type	DDR2
Memory Slots	2
Maximum Memory	8 GB
Graphics	Intel Graphics Media Accelerator X4500
LAN	10/100/1000 Mbps
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 1 x PCI
Storage Interface	4 x SATA 3.0 Gb/s
USB Ports	8 x USB 2.0
Video Outputs	VGA
RAID Support	No
IDE Ports	1 x IDE
Chipset	Intel G41 Express
