Intel DG41TY Product Guide

Installing and Replacing Desktop Board Components
53
Setting the BIOS Configuration Jumper
NOTE
Always turn off the power and unplug the power cord from the computer before
moving the jumper. Moving the jumper with the power on may result in unreliable
computer operation.
Figure 25 shows the location of the Desktop Board’s BIOS confi
guration jumper block.

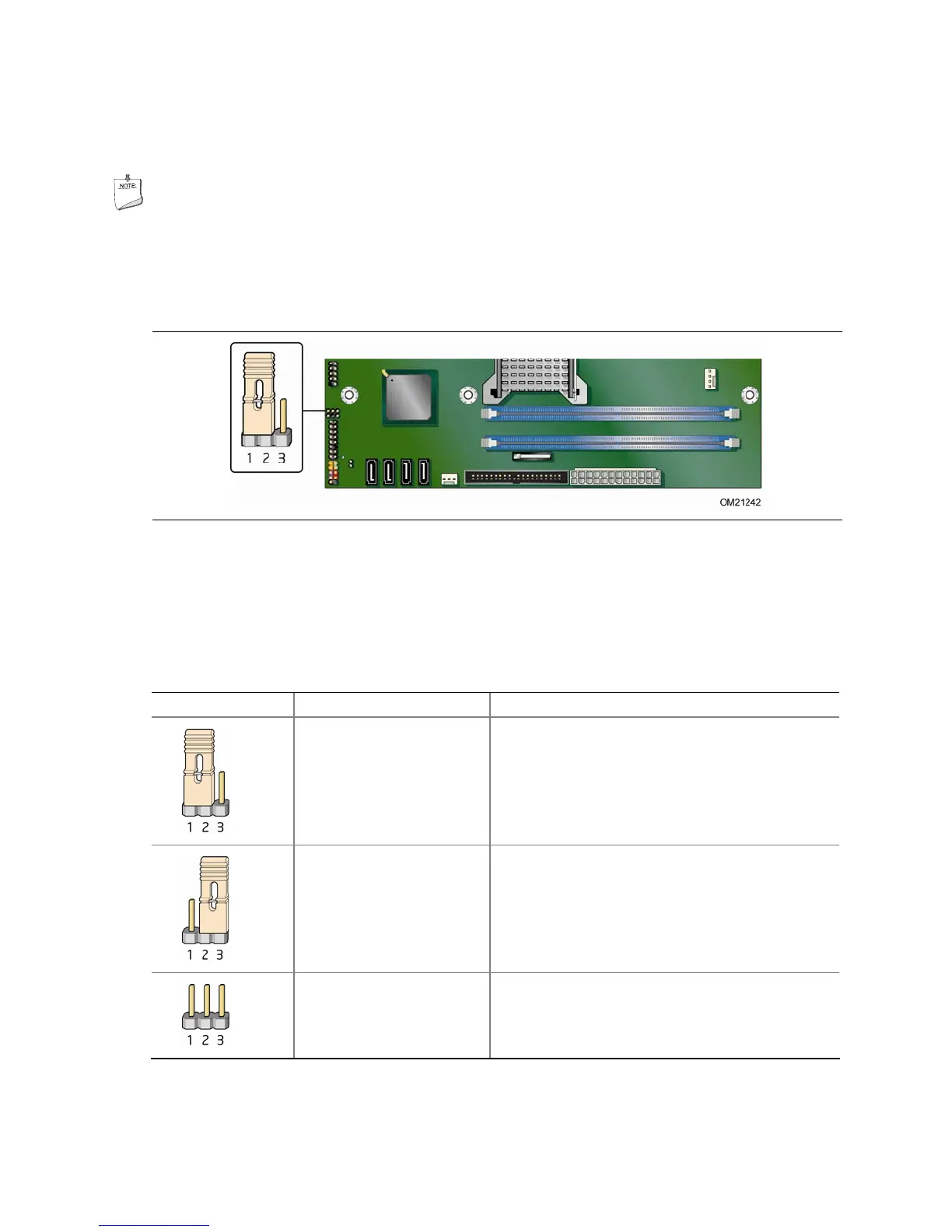

Figure 25. Location of the BIOS Configuration Jumper Block
The three-pin BIOS jumper block enables all board configurations to be done in the
BIOS Setup program. Table 15 shows the jumper setti
ngs for the BIOS Setup
program modes.
Table 15. Jumper Settings for the BIOS Setup Program Modes
Jumper Setting Mode Description
Normal (default) (1-2) The BIOS uses the current configuration and
passwords for booting.
Configure (2-3) After the Power-On Self-Test (POST) runs, the
BIOS displays the Maintenance Menu. Use this
menu to clear passwords.
Recovery (None) The BIOS recovers data in the event of a failed
BIOS update.

Intel DG41TY Specifications

General

Form Factor	MicroATX
Socket	LGA 775
Memory Type	DDR2
Memory Slots	2
Maximum Memory	8 GB
Graphics	Intel Graphics Media Accelerator X4500
LAN	10/100/1000 Mbps
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 1 x PCI
Storage Interface	4 x SATA 3.0 Gb/s
USB Ports	8 x USB 2.0
Video Outputs	VGA
RAID Support	No
IDE Ports	1 x IDE
Chipset	Intel G41 Express
