Intel Desktop Board DQ57TML Product Guide
12
Desktop Board Components

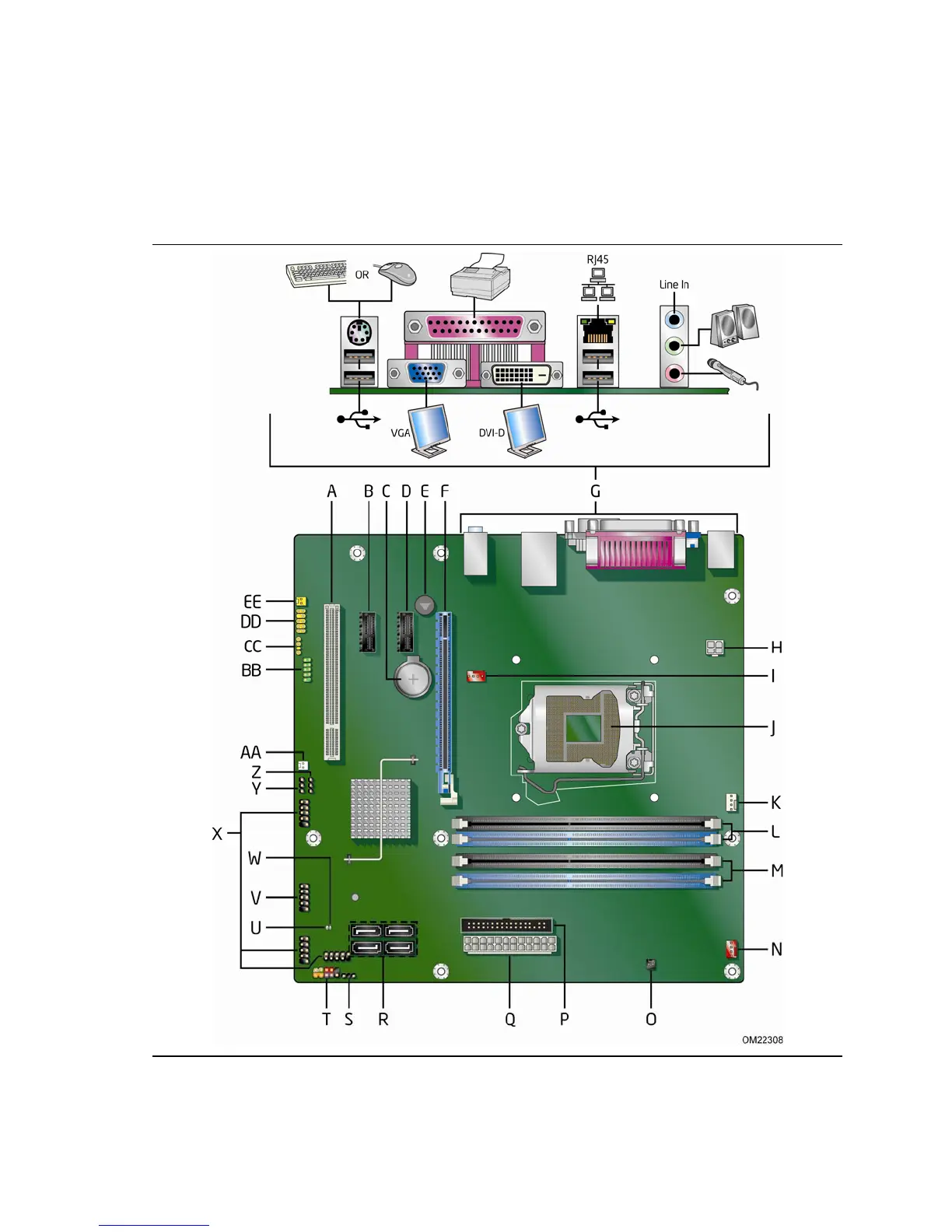

Figure 1 shows the approximate location of the major components on Intel Desktop
Board DQ57TML.
Figure 1. Intel Desktop Board DQ57TML Components
