Installing and Replacing Desktop Board Components
63
Setting the BIOS Configuration Jumper
NOTE
Always turn off the power and unplug the power cord from the computer before
moving the jumper. Moving the jumper with the power on may result in unreliable
computer operation.
Figure 30 shows the location of the Desktop Board’s BIOS confi
gurati
on jumper block.

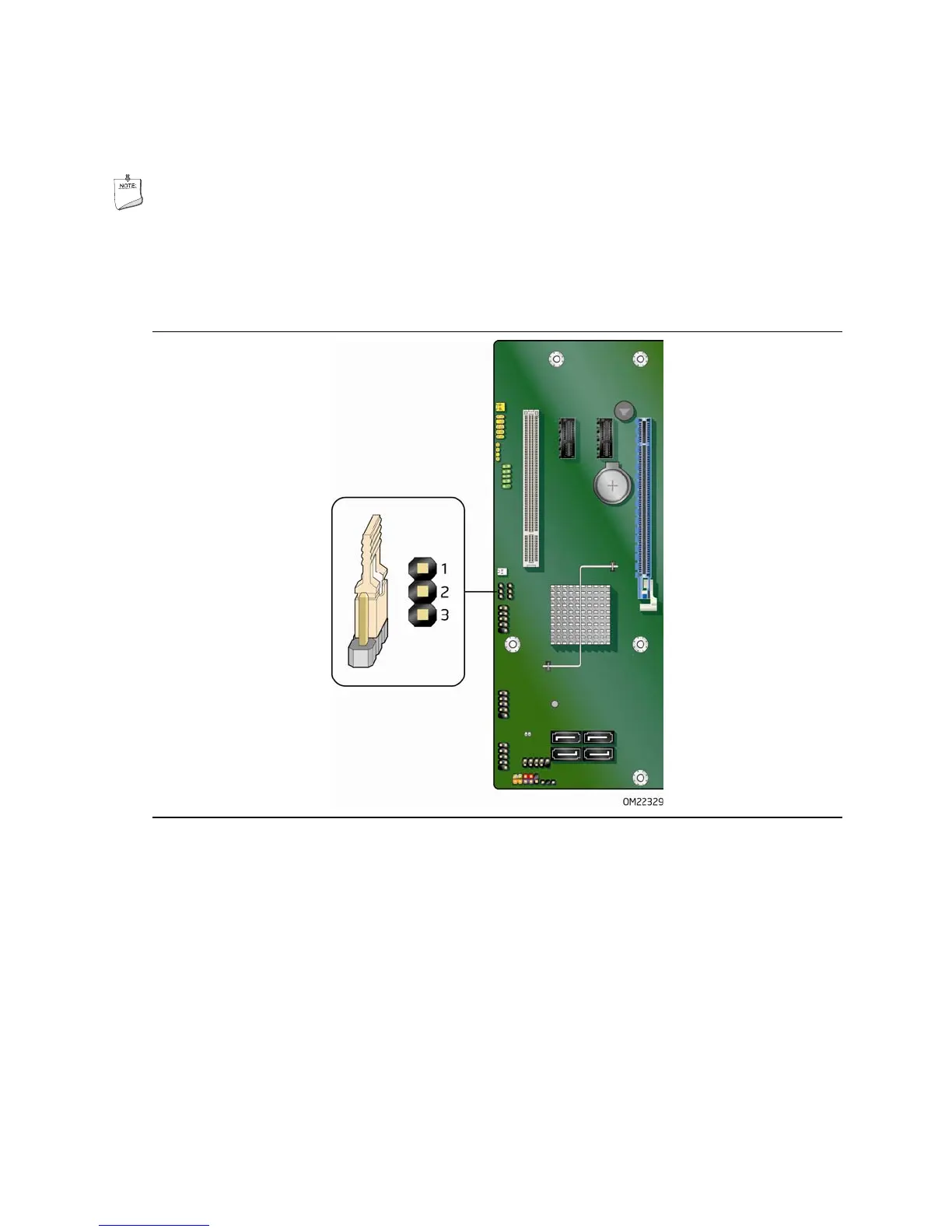

Figure 30. Location of the BIOS Configuration Jumper Block
