Intel DQ57TM Product Guide

Installing and Replacing Desktop Board Components
47
Installing DIMMs

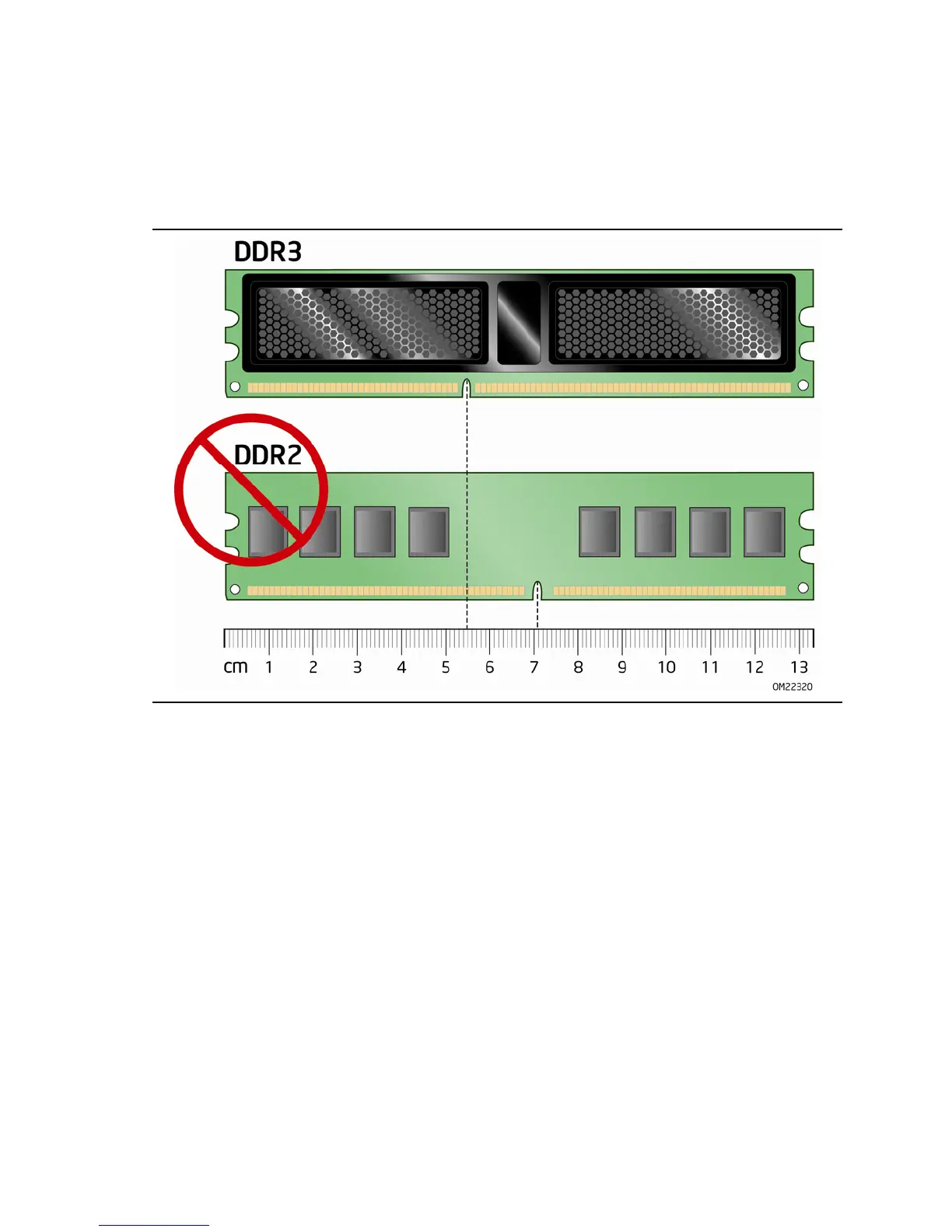

To make sure you have the correct DIMM, place it on the illustration of the DDR3
DIMM in Figure 19. All the notches should match with the DDR3 DIMM.
Figure 19. Use DDR3 DIMMs

Intel DQ57TM Specifications

General

Form Factor	Micro ATX
Chipset	Intel Q57
Socket	LGA 1156
Memory Type	DDR3
Memory Slots	4
Maximum Memory	16 GB
PCI Express x16 Slots	1
PCI Express x1 Slots	2
PCI Slots	1
SATA Ports	6
eSATA	1
USB Ports	12
Ethernet	Gigabit Ethernet
RAID Support	RAID 0, 1, 5, 10
Video Output	DVI, VGA
Audio	Realtek ALC888S
