Intel Desktop Board DQ57TML Product Guide
18
LAN Subsystem
The LAN subsystem includes:
• Intel 82578DM Gigabit (10/100/1000 Mb/s) Ethernet LAN controller with support
for:
⎯ Intel AMT 6.0
⎯ ASF 2.0
• RJ-45 LAN connector with integrated status LEDs
LAN software and drivers are available at http://downloadcenter.intel.com/
.

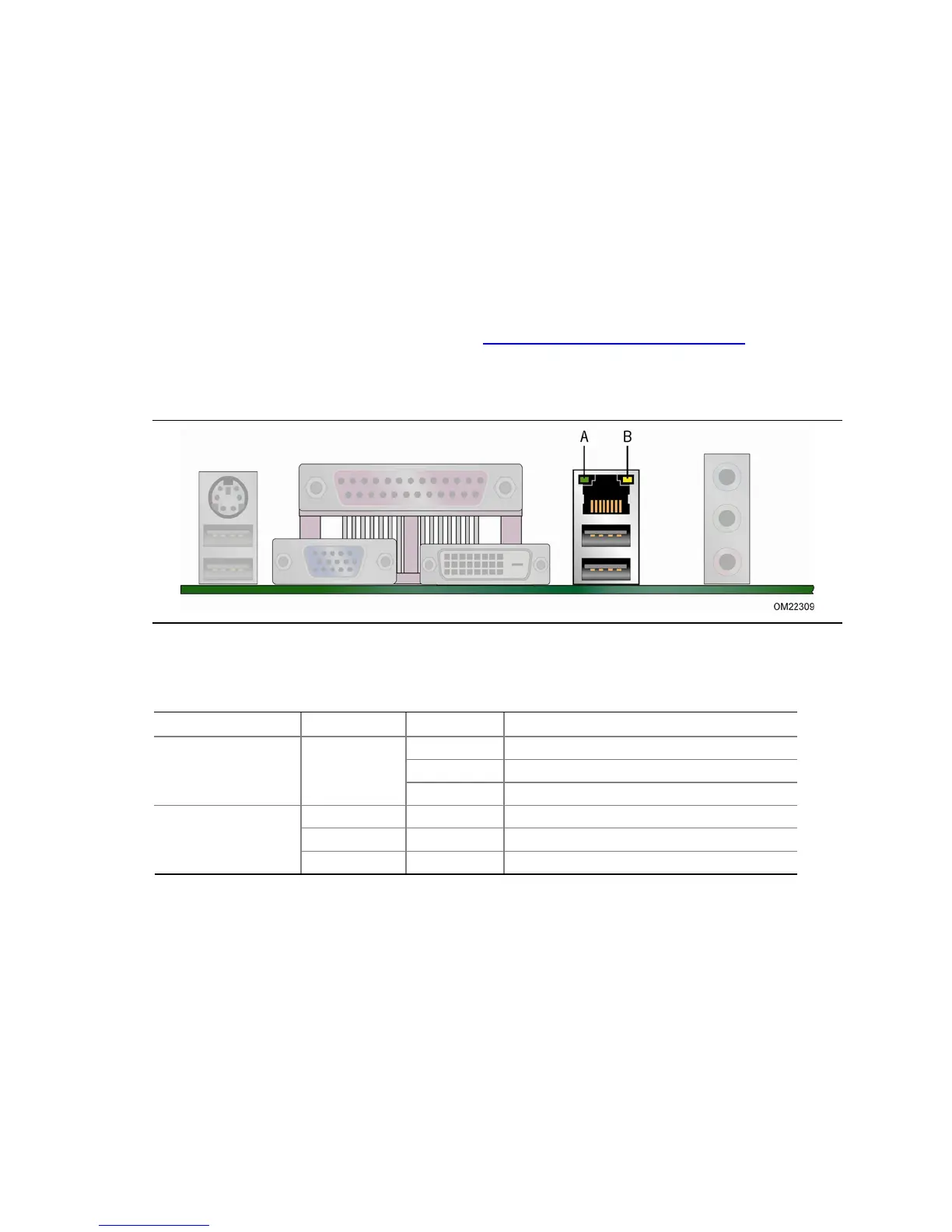

Two LEDs are built into the RJ-45 LAN connector located on the back panel (see
Figure 2). These LEDs indicate the status of the LAN as shown in Table 3.
Figure 2. LAN Status LEDs
Table 3. LAN Status LEDs States
LED LED Color LED State Indicates
A (Link/Activity) Off LAN link is not established Green
On LAN link is established
Blinking LAN activity is occurring
N/A Off 10 Mb/s data rate
Green On 100 Mb/s data rate
B (Link Speed)
Yellow On 1000 Mb/s data rate

Intel DQ57TM Specifications

General

Form Factor	Micro ATX
Chipset	Intel Q57
Socket	LGA 1156
Memory Type	DDR3
Memory Slots	4
Maximum Memory	16 GB
PCI Express x16 Slots	1
PCI Express x1 Slots	2
PCI Slots	1
SATA Ports	6
eSATA	1
USB Ports	12
Ethernet	Gigabit Ethernet
RAID Support	RAID 0, 1, 5, 10
Video Output	DVI, VGA
Audio	Realtek ALC888S
