Installing and Replacing Desktop Board Components
53
Connecting a Diskette Drive
A diskette drive cable can be used to connect a single diskette drive to the Desktop
Board.
For correct function of the diskette drive:
1. Observe the precautions in "Before You Begin" on page 35.
2. Attach t
he cable end labeled P1 to the diskette drive connector on the Intel
Desktop Board (Figure 24, A).
3. Attach the c
a
ble end labeled P2 to the connector on the diskette drive
(Figure 24, B).

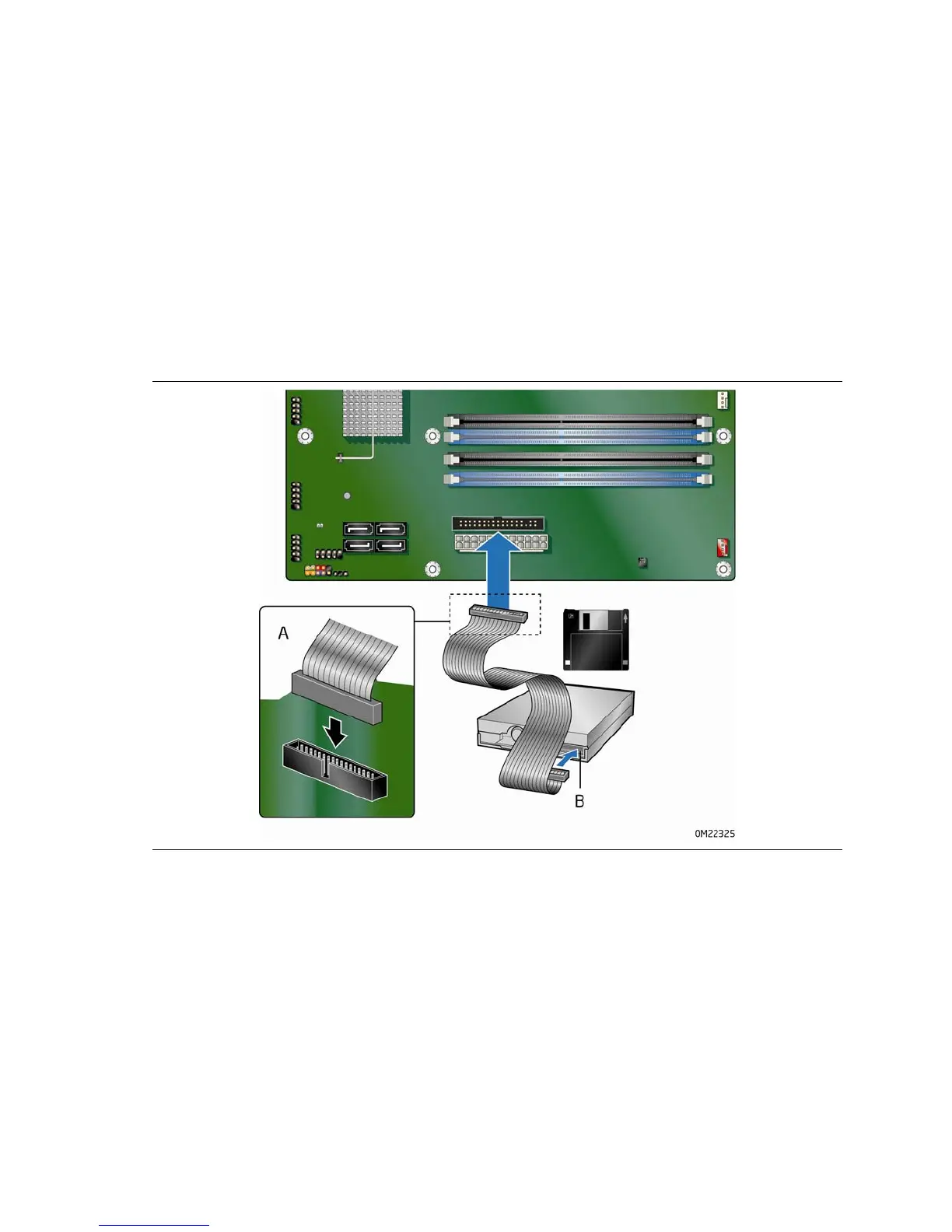

Figure 24. Connecting a Diskette Drive
