Intel DQ57TM Product Guide

Installing and Replacing Desktop Board Components
43
7. Lower the load plate over the processor while leaving the socket lever in the open
position (Figure 13).

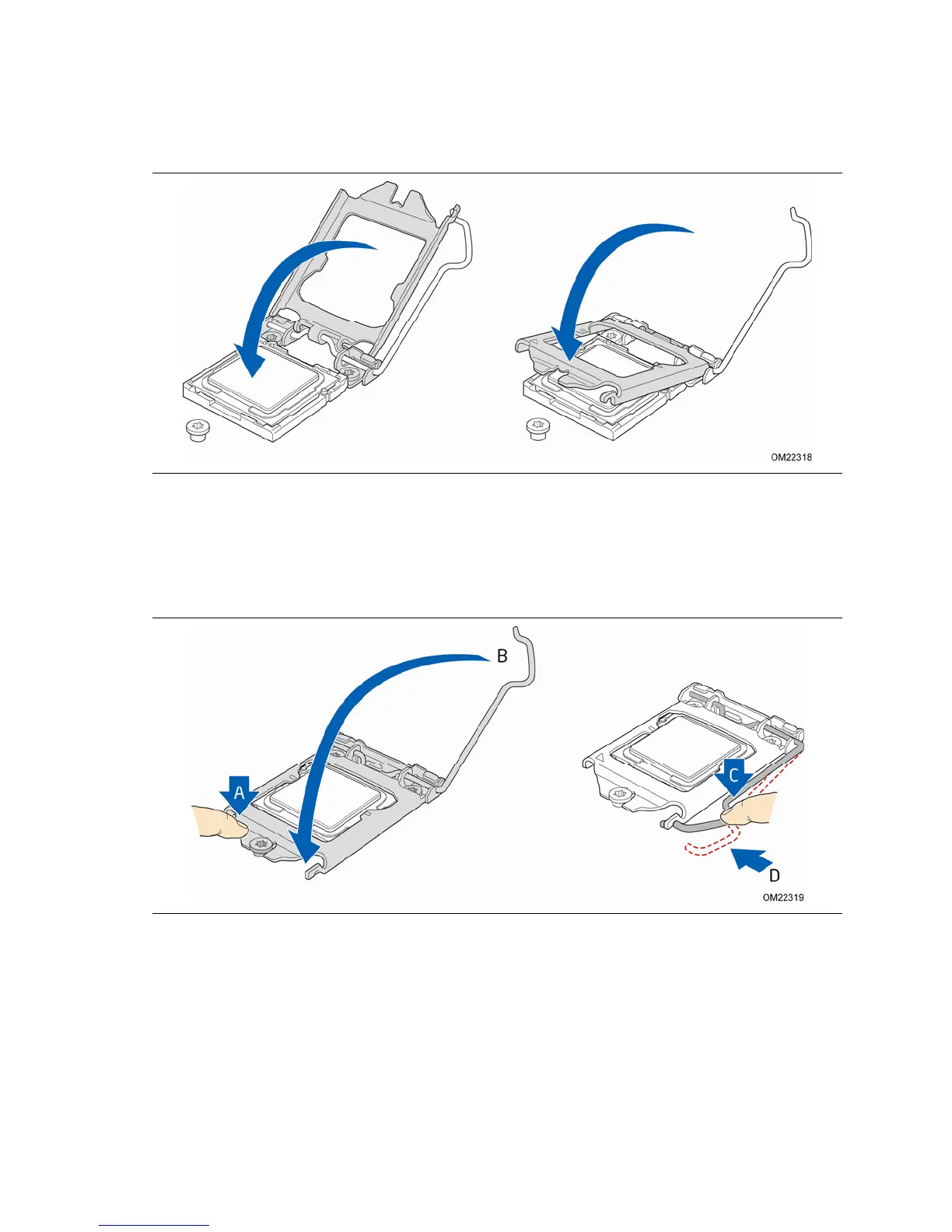

Figure 13. Lower the Load Plate
8. Lower the socket lever (Figure 14, B) while making sure that the front edge of the
load plate slides under the shoulder screw cap as the lever is lowered
(Figure 14, A). Latch the socket lever under the load plate tab (Figure 14, C, D).
Figure 14. Secure the Load Plate in Place

Intel DQ57TM Specifications

General

Brand	Intel
Model	DQ57TM
Category	Motherboard
Language	English
