Intel DQ965CO User Manual

Product Description
21
#
INTEGRATOR’S NOTE
Regardless of the memory configuration used (dual channel, single channel, or flex
mode), DIMM 0 of Channel A must always be populated. This is a requirement of the
ICH8 Manageability Engine feature.
1.4.1.1 Dual Channel (Interleaved) Mode Configurations

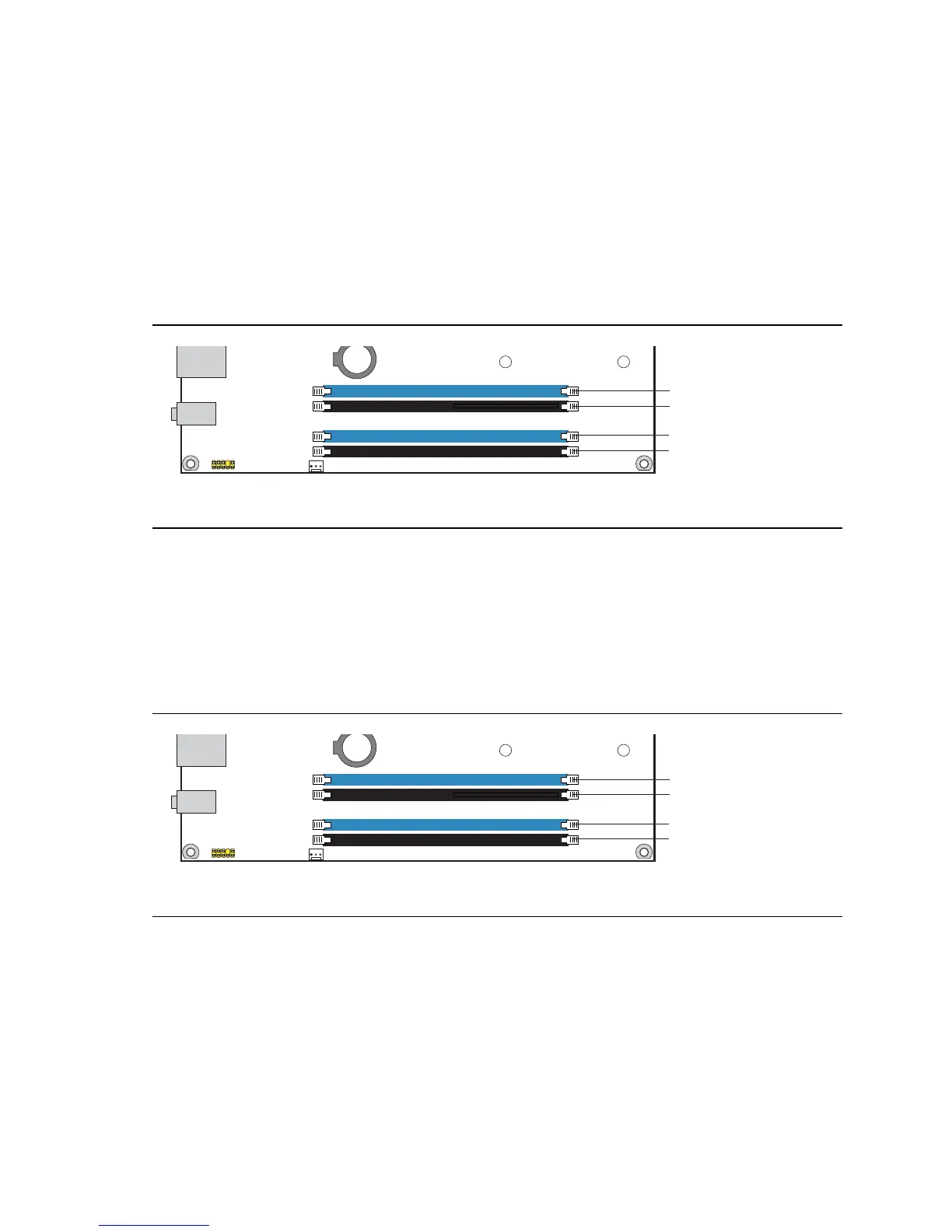

Figure 4 shows a dual channel configuration using two DIMMs. In this example, the
DIMM0 (blue) sockets of both channels are populated with identical DIMMs.
OM18323
Channel A, DIMM 0
Channel A, DIMM 1
Channel B, DIMM 0
Channel B, DIMM 1
1 GB
1 GB
Figure 4. Dual Channel (Interleaved) Mode Configuration
with Two DIMMs
Figure 5 shows a dual channel configuration using three DIMMs. In this example, the
combined capacity of the two DIMMs in Channel A equal the capacity of the single
DIMM in the DIMM0 (blue) socket of Channel B.
OM18324
Channel A, DIMM 0
Channel A, DIMM 1
Channel B, DIMM 0
Channel B, DIMM 1
256 MB
512 MB
256 MB
Figure 5. Dual Channel (Interleaved) Mode Configuration
with Three DIMMs
