2.7.1 Back Panel Connectors

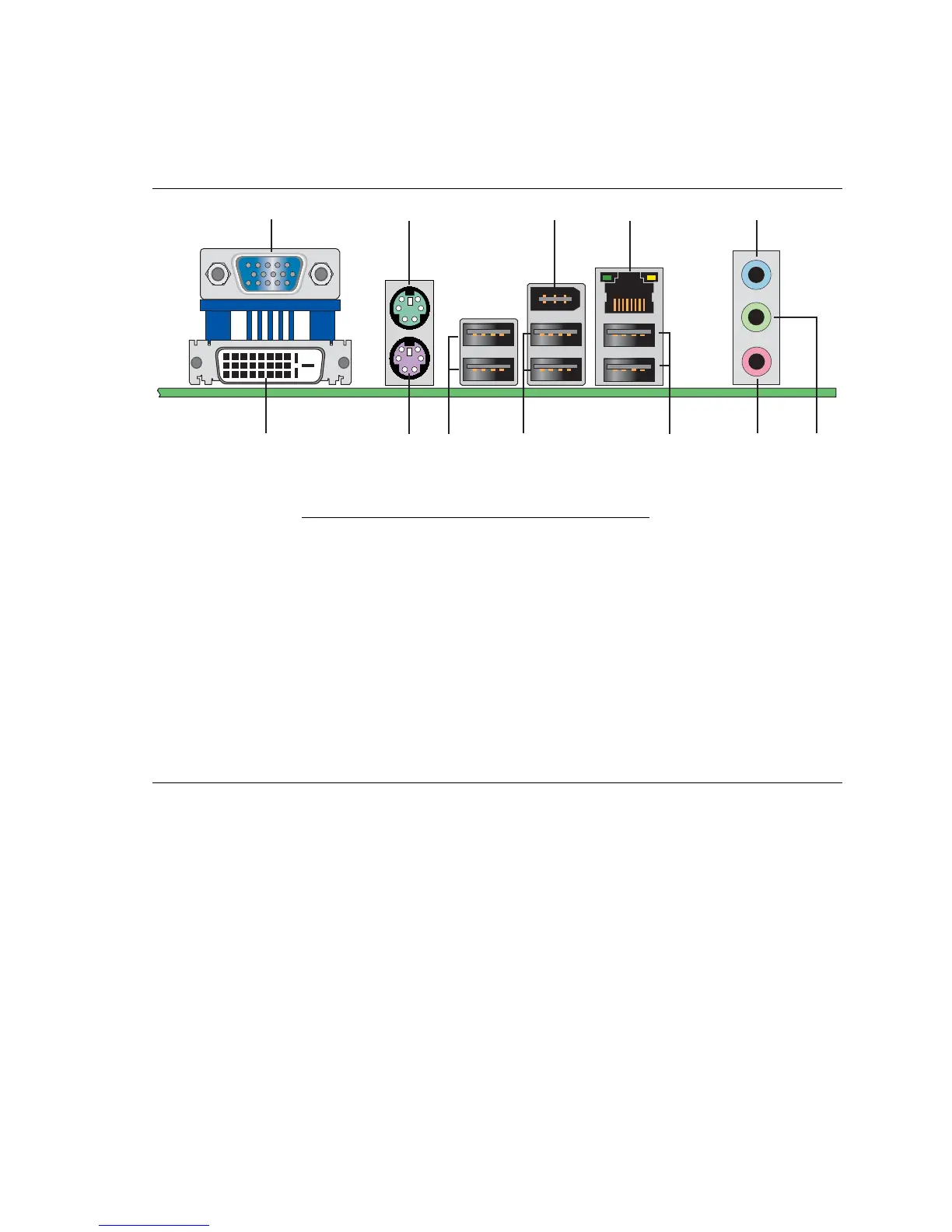

Figure 15 shows the locations of the back panel connectors.
A
G
OM18312
B
C
D
E
F
H
I
J
KL
Item Description
A VGA port
B DVI-D connector (digital output only)
C PS/2 mouse port (optional)
D PS/2 keyboard port (optional)
E USB ports [2]
F IEEE-1394a
G USB ports [2]
H LAN
I USB ports [2]
J Audio line in
K Mic in
L Audio line out
Figure 15. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
