Product Description
35
1.9.2 Audio Connectors and Headers
The board contains audio connectors and headers on both the back panel and the
component side of the board. The front panel audio header provides mic in and line
out signals for the front panel. Microphone bias is supported for both the front and
back panel microphone connectors.
The front/back panel audio connectors are configurable through the audio device
drivers. The available configurable audio ports are shown in
Figure 10.
OM18469
Line In/Retasking Jack
[Blue]
Mic In/Retasking Jack
[Pink]
Line Out/Retasking Jack
[Green]
Mic In/
Retasking Jack
[Pink]
Line Out/
Retasking Jac
[Green]
Front Panel Audio Connectors
[Routed from Front Panel Audio Header]
Back Panel Audio Connectors

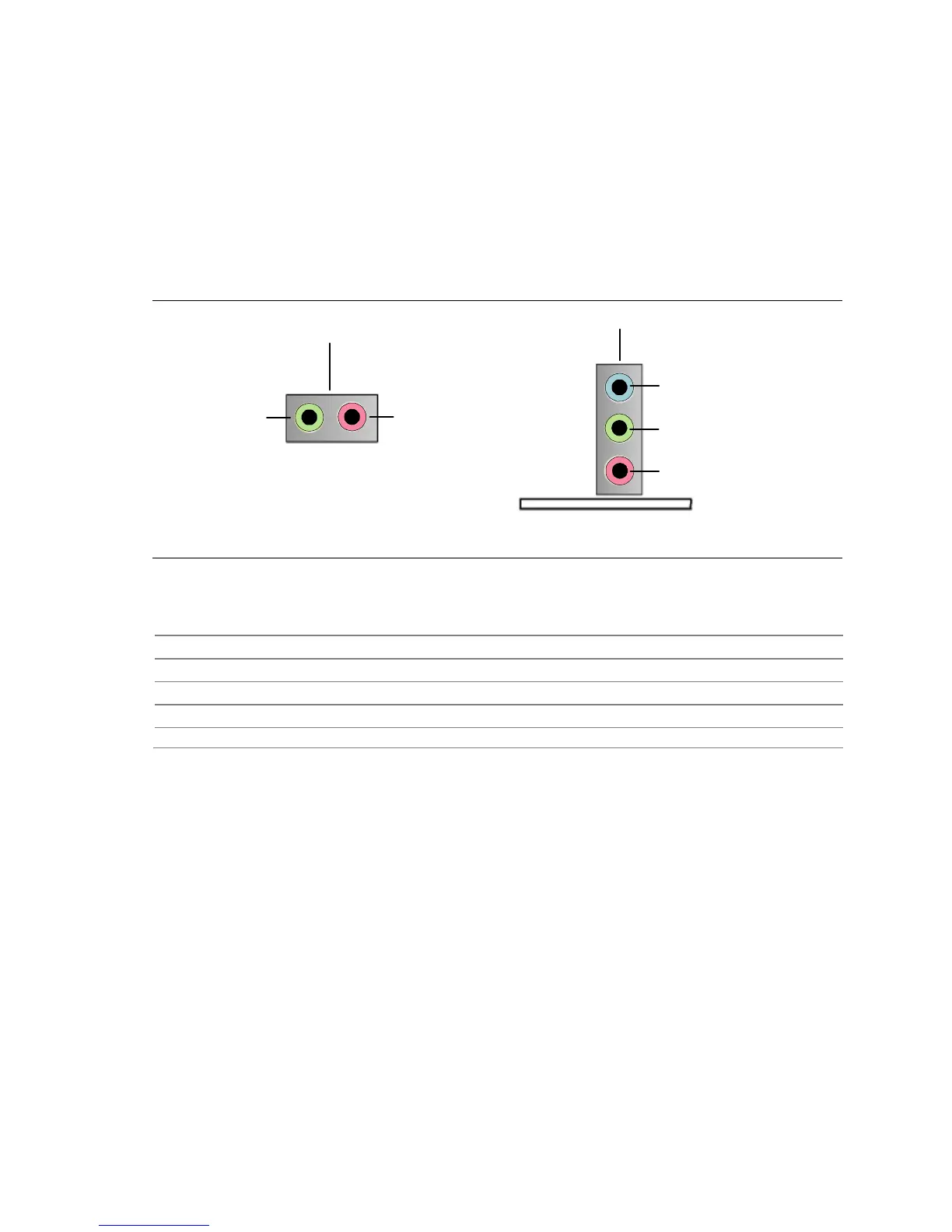

Figure 10. Front/Back Panel Audio Connector Options
For information about Refer to
The location of the front panel audio header Figure 16, page 58
The signal names of the front panel audio header Table 26, page 61
The location of the HD Audio Link header Figure 16, page 58
The signal names of the HD Audio Link header Table 19, page 60
The back panel audio connectors Section 2.7.1, page 57
