Intel Desktop Board DQ965CO Technical Product Specification
24
1.4.1.3 Flex Mode Configuration
NOTE
The use of flex mode requires DIMMs to be installed in both channels.

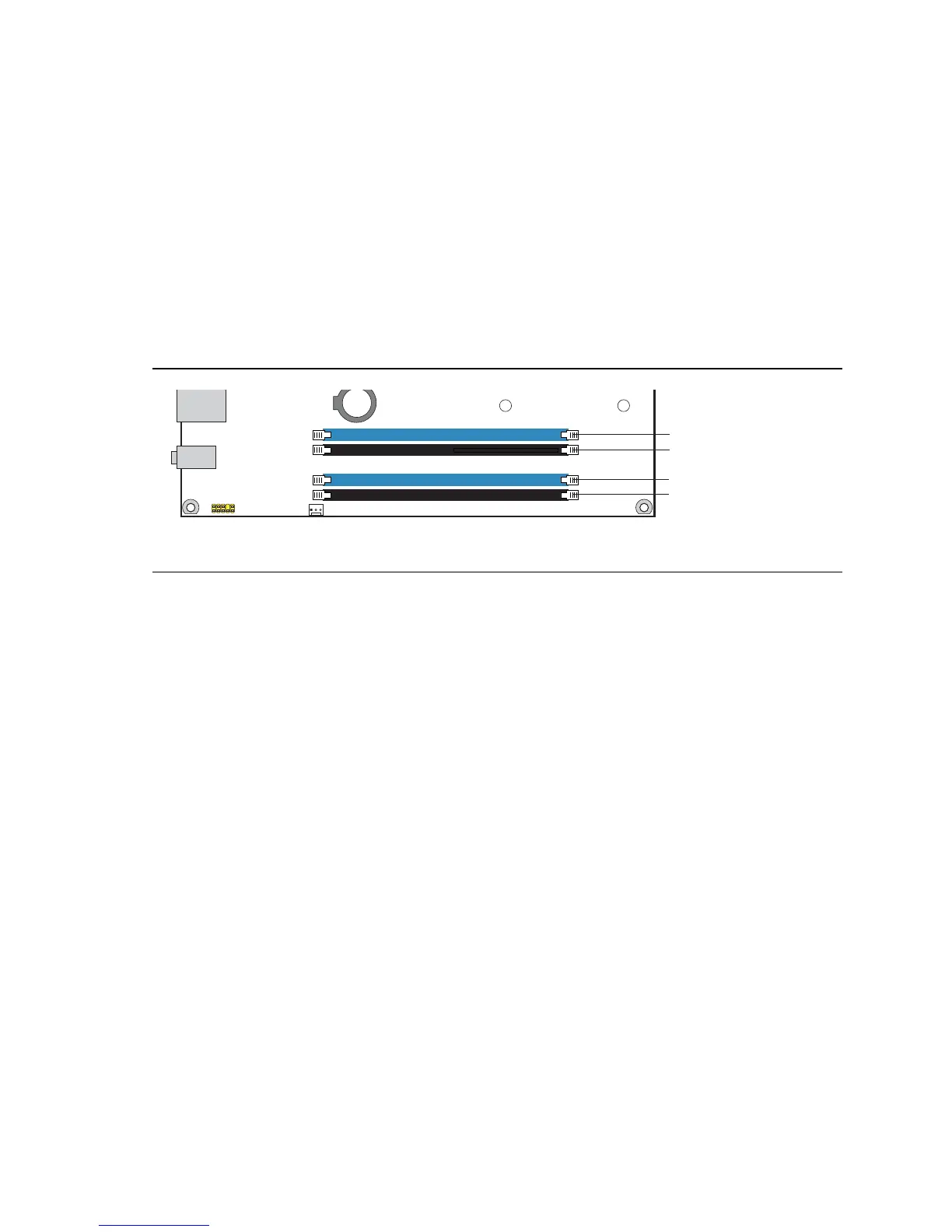

Figure 9 shows a flex mode configuration using two DIMMs. The operation is as
follows:
• The 512 MB DIMM in the Channel A, DIMM 0 socket and the lower 512 MB of the
DIMM in the Channel B, DIMM 0 socket operate together in dual channel mode.
• The remaining (upper) 512 MB of the DIMM in Channel B operates in single
channel mode.
OM18405
Channel A, DIMM 0
Channel A, DIMM 1
Channel B, DIMM 0
Channel B, DIMM 1
512 MB
1 GB
Figure 9. Flex Mode Configuration with Two DIMMs
