1.10.3 RJ-45 LAN Connector with Integrated LEDs
Two LEDs are built into the RJ-45 LAN connector (shown in Figure 11 below).
Link LED
(Green)
Data Rate LED
(Green/Yellow)
OM18329

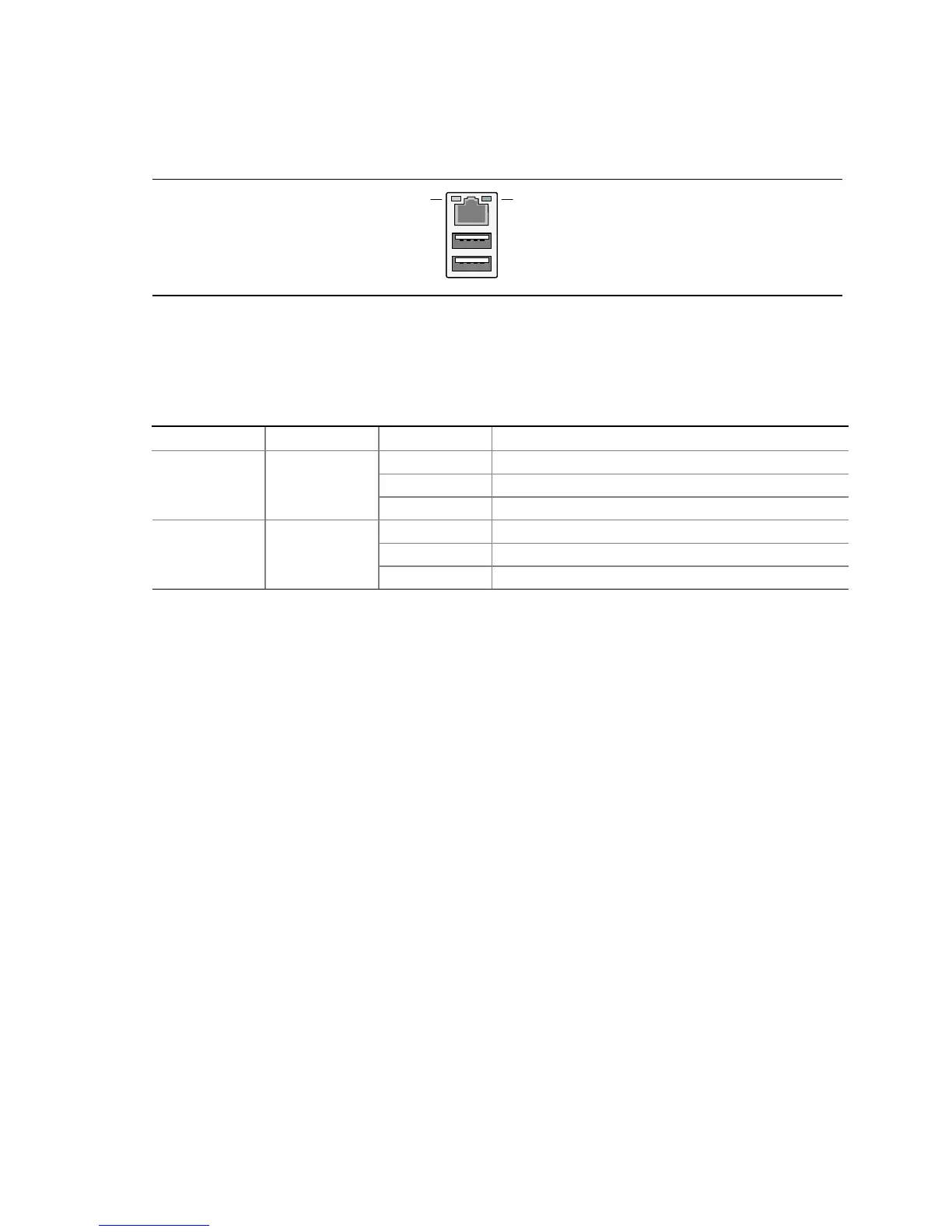

Figure 11. LAN Connector LED Locations
Table 8 describes the LED states when the board is powered up and the LAN
subsystem is operating.
Table 8. LAN Connector LED States
LED LED Color LED State Condition
Off LAN link is not established.
On LAN link is established.
Link Green
Blinking LAN activity is occurring.
Off 10 Mbits/sec data rate is selected.
Green 100 Mbits/sec data rate is selected.
Data Rate Green/Yellow
Yellow 1000 Mbits/sec data rate is selected.
1.10.4 Intel
®
Active Management Technology
(Intel
®
AMT) with System Defense Feature
Intel Active Management Technology offers IT organizations tamper-resistant and
persistent management capabilities. Specifically, Intel AMT is a hardware-based
solution that uses out of band communication to manage access client systems in
addition to offering encrypted and persistent asset management and remote
diagnostics and/or recovery capabilities for networked platforms. With Intel AMT, IT
organizations can easily get accurate platform information, and can perform remote
updating, diagnostics, debugging and repair of a system, regardless of the state of the
operating system and the power state of the system.
NOTE
Software with AMT capability is required to take advantage of Intel AMT platform
management capabilities.
The key features of Intel AMT include:
• Secure Out of Band (OOB) system management that allows remote management
of PCs regardless of system power or operating system state.
• Remote troubleshooting and recovery that can significantly reduce desk-side visits
and potentially increasing efficiency of IT technical staff.
• Proactive alerting that decreases downtime and minimizes time to repair.
