Intel Desktop Board DQ965CO Technical Product Specification
66
2.7.2.5 Front Panel USB Headers

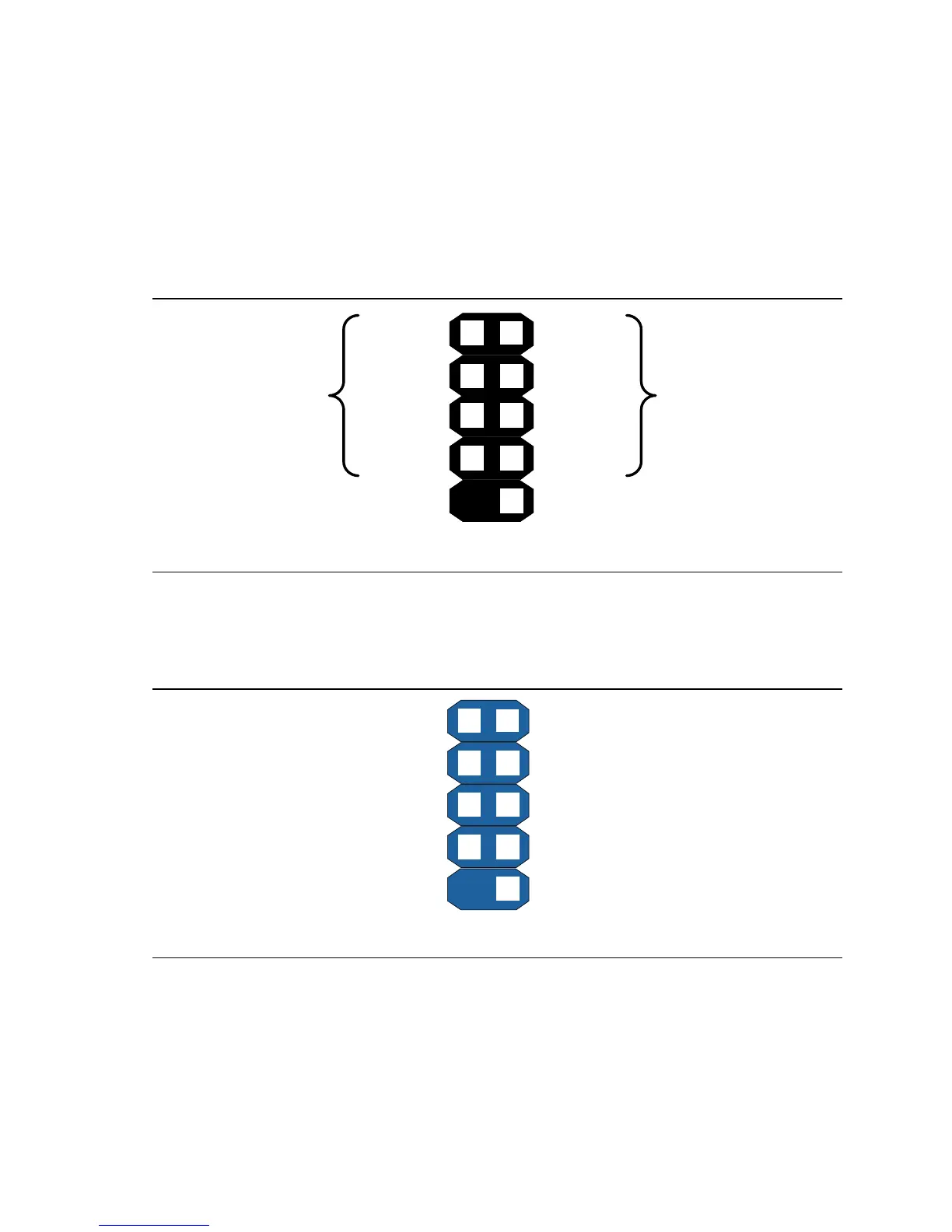

Figure 18 is a connection diagram for the front panel USB headers.
#
INTEGRATOR’S NOTES
• The +5 V DC power on the front panel USB headers is fused.
• Use only a front panel USB connector that conforms to the USB 2.0 specification
for high-speed USB devices.
OM18317
Key (no pin)
No connect
Power
(+5 V DC)
D-
D+
Ground
D+
Ground
D-
Power
(+5 V DC)
One
USB
Port
One
USB
Port
10
8
7
65
4
2
1
3
Figure 18. Connection Diagram for Front Panel USB Headers
2.7.2.6 Front Panel IEEE 1394a Header
Figure 19 is a connection diagram for the IEEE 1394a header.
OM18316
Key (no pin)
TPA+
+12 V DC
TPA-
Ground
TPB+
TPB-
Ground Ground
+12 V DC
10
87
65
4
2
1
3
Figure 19. Connection Diagram for IEEE 1394a Header
#
INTEGRATOR’S NOTES
• The +12 V DC power on the IEEE 1394a header is fused.
• The IEEE 1394a header provides one IEEE 1394a port.
