1.4.1.2 Single Channel (Asymmetric) Mode Configurations

NOTE
Dual channel (Interleaved) mode configurations provide the highest memory
throughput.

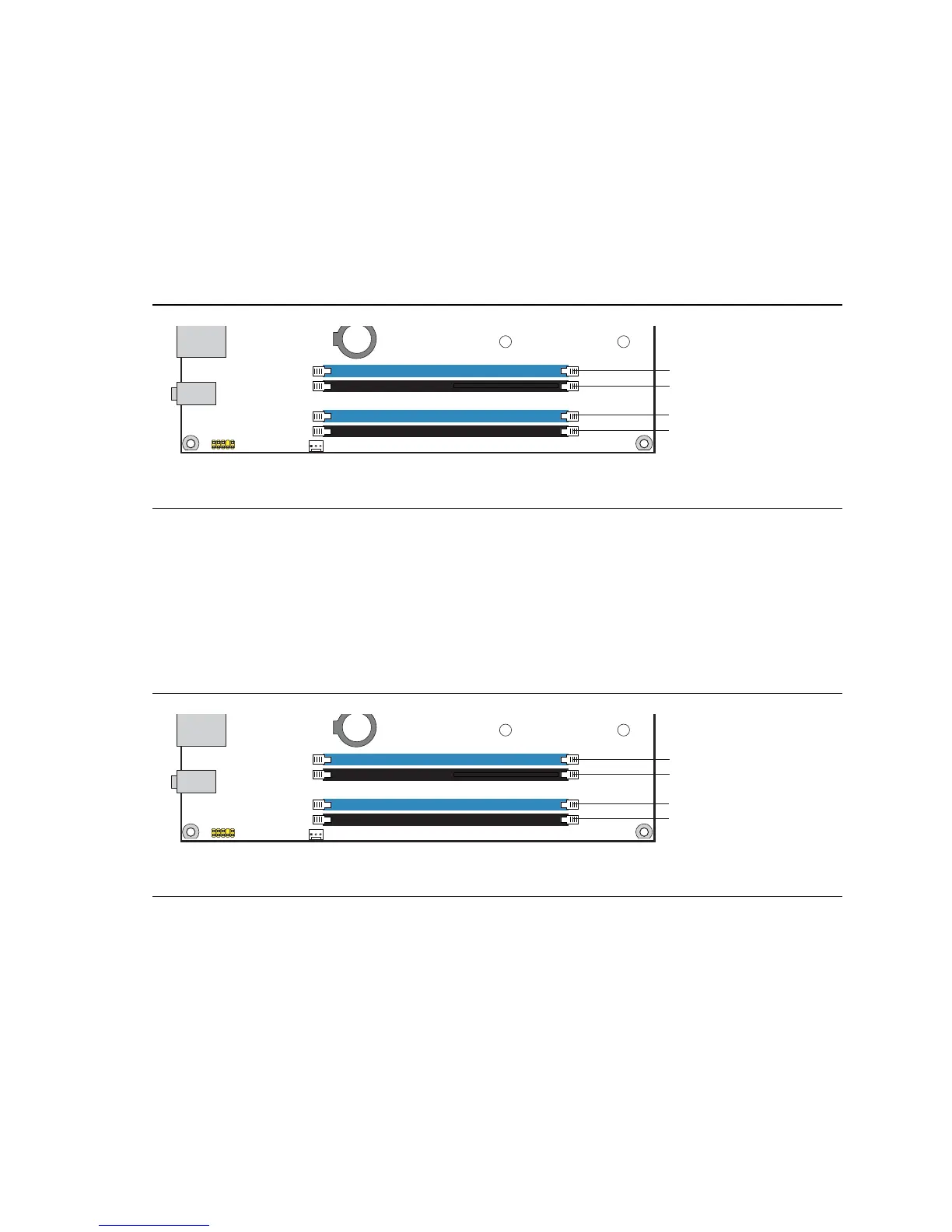

Figure 7 shows a single channel configuration using one DIMM. In this example, only
the DIMM0 (blue) socket of Channel A is populated. Channel B is not populated.
OM18326
Channel A, DIMM 0
Channel A, DIMM 1
Channel B, DIMM 0
Channel B, DIMM 1
512 MB
Figure 7. Single Channel (Asymmetric) Mode Configuration
with One DIMM
Figure 8 shows a single channel configuration using three DIMMs. In this example, the
combined capacity of the two DIMMs in Channel A does not equal the capacity of the
single DIMM in the DIMM0 (blue) socket of Channel B.
OM18327
Channel A, DIMM 0
Channel A, DIMM 1
Channel B, DIMM 0
Channel B, DIMM 1
256 MB
512 MB
512 MB
Figure 8. Single Channel (Asymmetric) Mode Configuration
with Three DIMMs
