Adapter 1 Linux software stack:
Adapter 1 configuration:
1. Run one instance of ptp4l per E810-CQDA2T:
# ptp4l -m -f config.cfg -i ens1f0 -i ens1f1 -i ens1f2 -i ens1f3
2. Run phc2sys to synchronize system time to the PHC time:
# phc2sys -s ens1f0 -c CLOCK_REALTIME -w -m

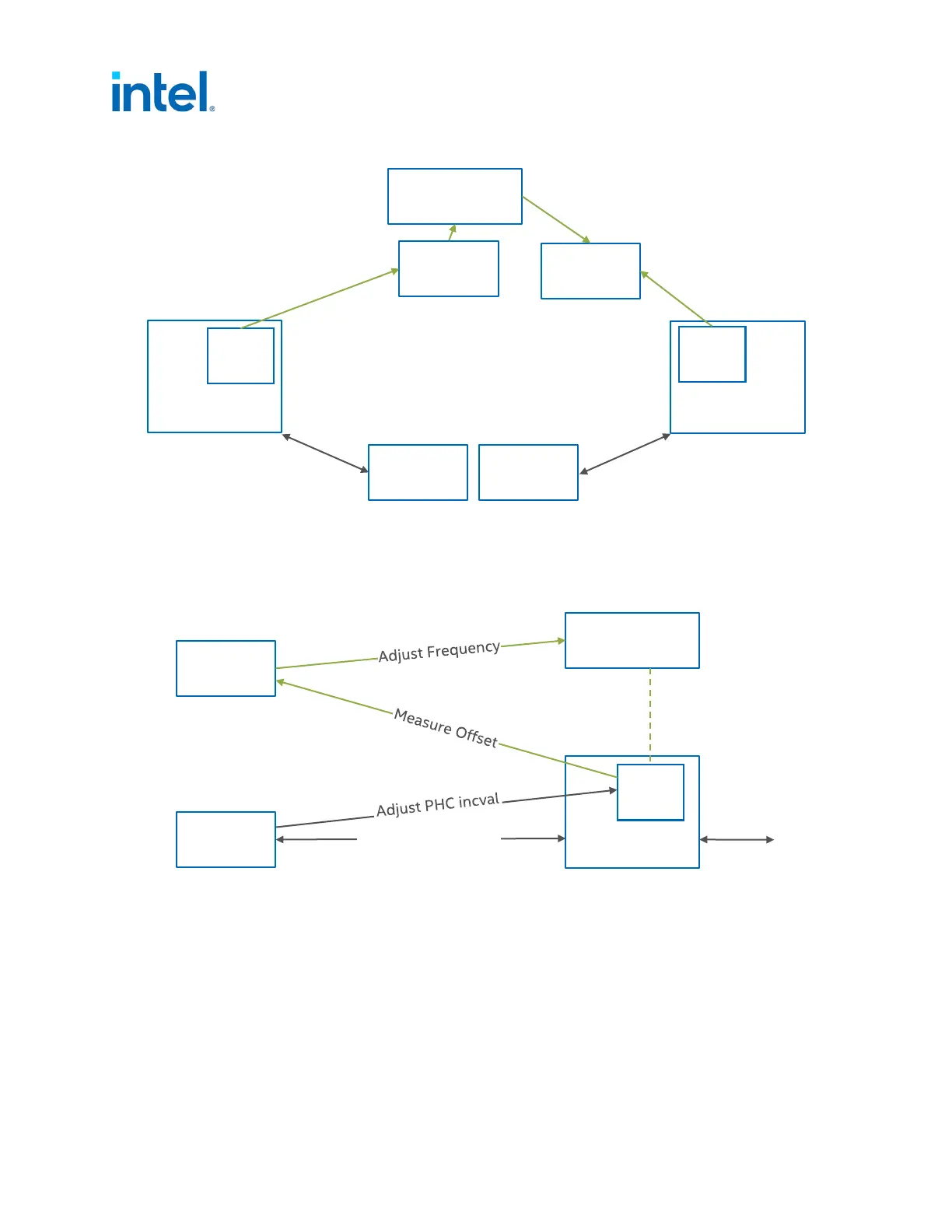

Figure 13. External Connections: Two E810-CQDA2T Adapters without GNSS Linux Software
Stack
Figure 14. External Connections: Two E810-CQDA2T Adapters without GNSS Adapter 1
Software Stack
Adapter 1
ptp4l
phc2sys
System Clock
PHC1
Network
phc_ctl
ptp4l
Adapter 2
PHC2
Adapter 1
ptp4l
phc2sys
System Clock
PHC1
Tx/Rx Timestamps
Network
