2-5 Expansion Card Installation
2-5-1 Expansion Slot
The H67/Z68 Express chipset based motherboard series offer one PCI-Express 2.0
x16 by 16 lane and one PCI-Express 2.0 x16 by 4 lane graphics slots. These two
graphics slots support the latest AMD CrossFireX Technology and nVidia SLI to
guarantee the fully operational Multi-GPUs graphics function and avoid the possible
installation error. One PCI Express 2.0 x1 slot, one Mini-PCIE slot and one 32-bit PCI
slot also guarantee the rich connectivity for the I/O of peripherals.
2-5-2 Procedure for Expansion Card Installation
1. Read the documentation for your expansion card and make any necessary
hardware or software setting for your expansion card such as jumpers.
2. Remove your computer’s cover and the bracket plate on the slot you intend to
use.
3. Align the card’s connectors and press firmly.
4. Secure the card on the slot with the screen you remove above.
5. Replace the computer system’s cover.
6. Set up the BIOS if necessary.
7. Install the necessary software driver for your expansion card.

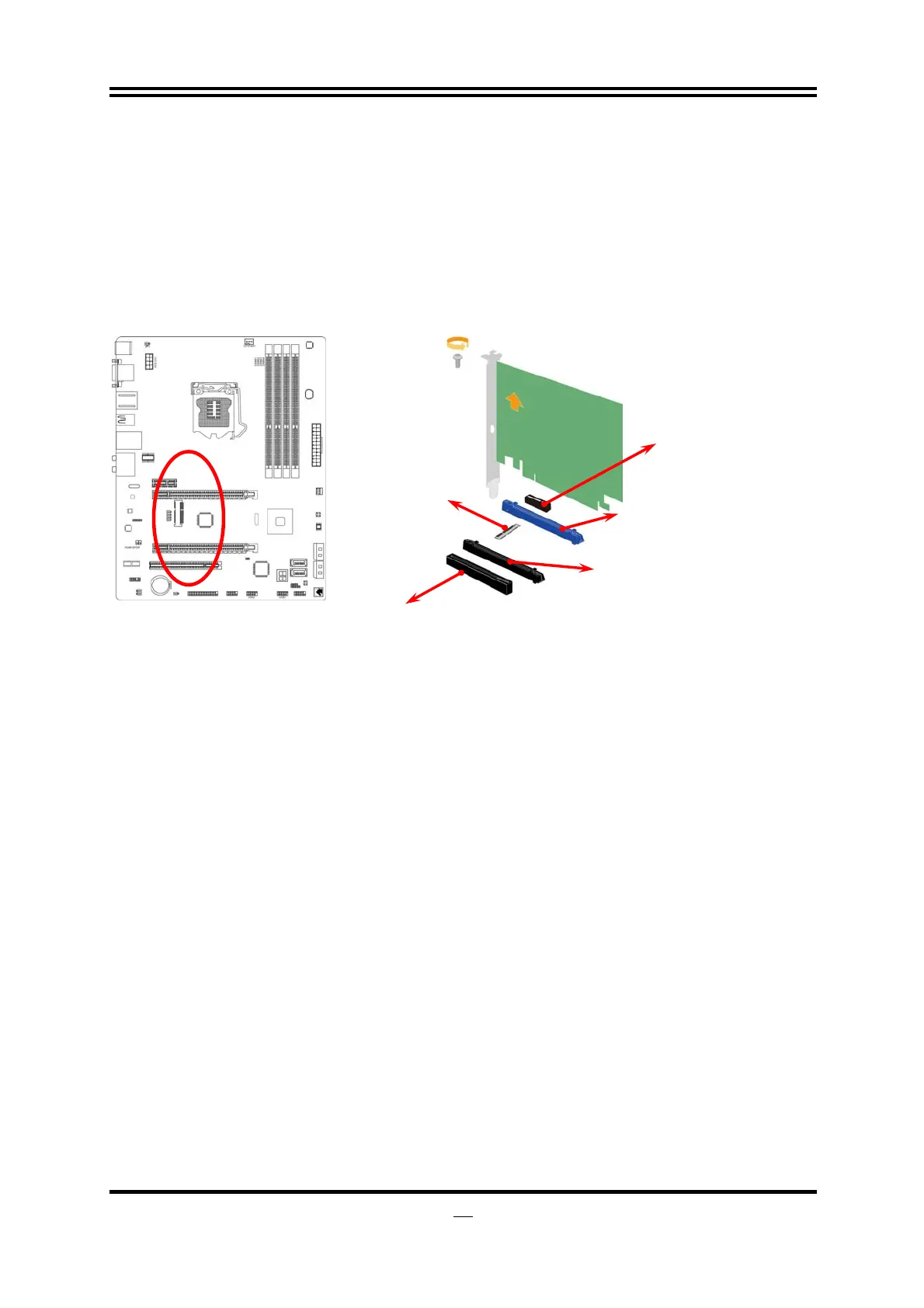

PCI-E 2.0 x16 by 16 Lane slot
PCI slot
PCI-E 2.0 x1 slot
PCI-E 2.0 x16 by 4 Lane Slot
Mini-PCI E slot
