Intel H67 User Manual

34

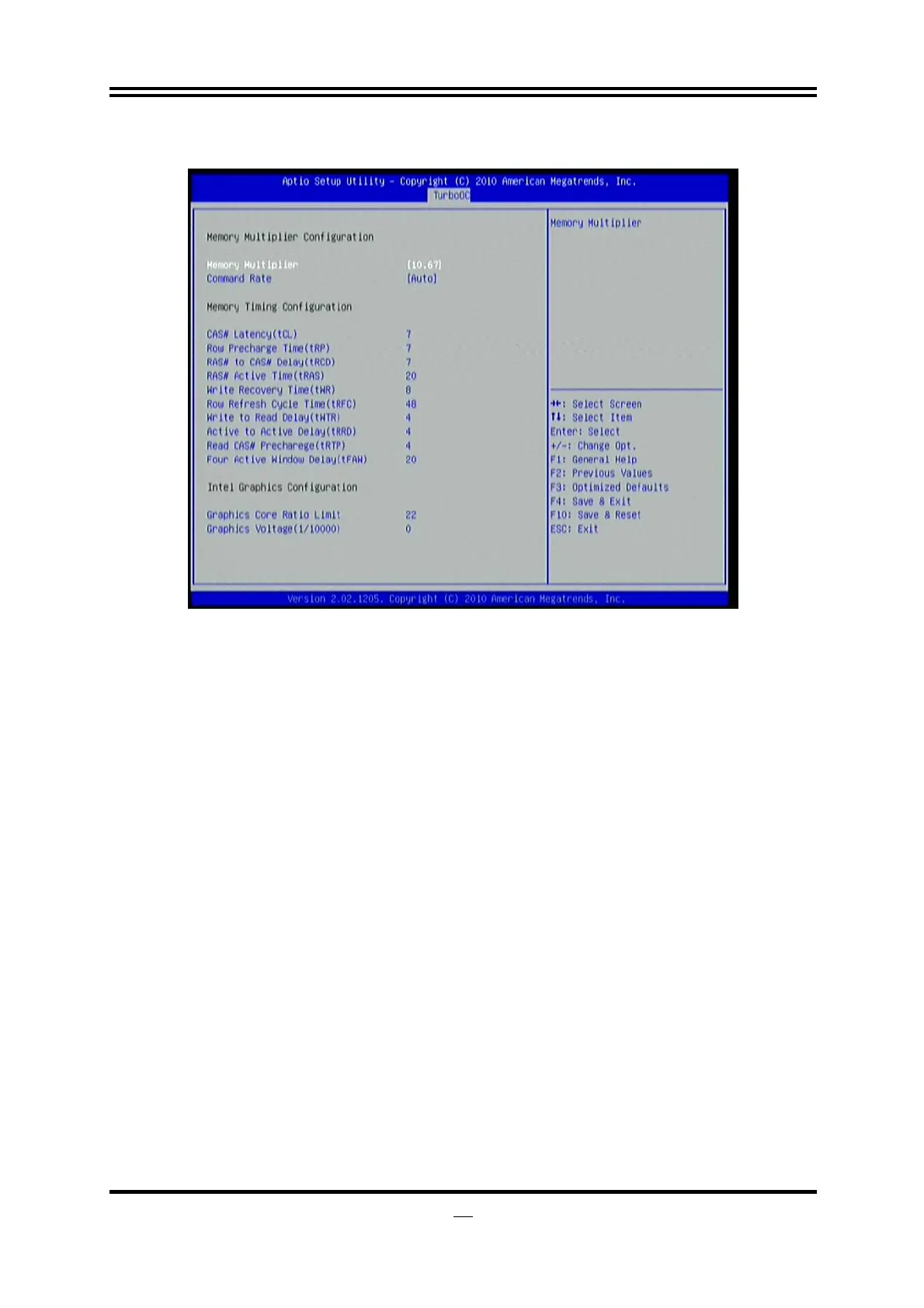

3-11-3 Memory Performance Tuning
Memory Multiplier
Use this item to select memory multiplier. The optional settings: [Auto]; [10.67];
[13.33].
Command Rate
Use this item to select memory command rate. The optional settings: [Auto]; [1T];
[2T].
CAS# Latency (tCL)
Use this item to select CAS latency (tCL).
Row Precharge Time (tRP)
Use this item to select Row Precharge Time (tRP).
RAS# to CAS# Delay (tRCD)
Use this item to set row address to column address delay
RAS# Active Time (tRAS)
Use this item to set row active time.
Write Recovery Time (tWR)
Use this item to set internal write to read command delay.
Row Refresh Cycle Time (tRFC)
Use this item to set minimum refresh recovery time.
Write to Read Delay (tWTR)
Use this item to set internal write to read command delay.

Intel H67 Specifications

General

Socket Type	LGA 1155
Memory Type	DDR3
Max Memory Size	32 GB
SATA 6Gb/s	2
SATA 3Gb/s	4
USB 2.0 ports	14
PCIe 3.0 Support	No
Chipset	Intel H67
Integrated Graphics	Yes
