Intel H67 User Manual

33

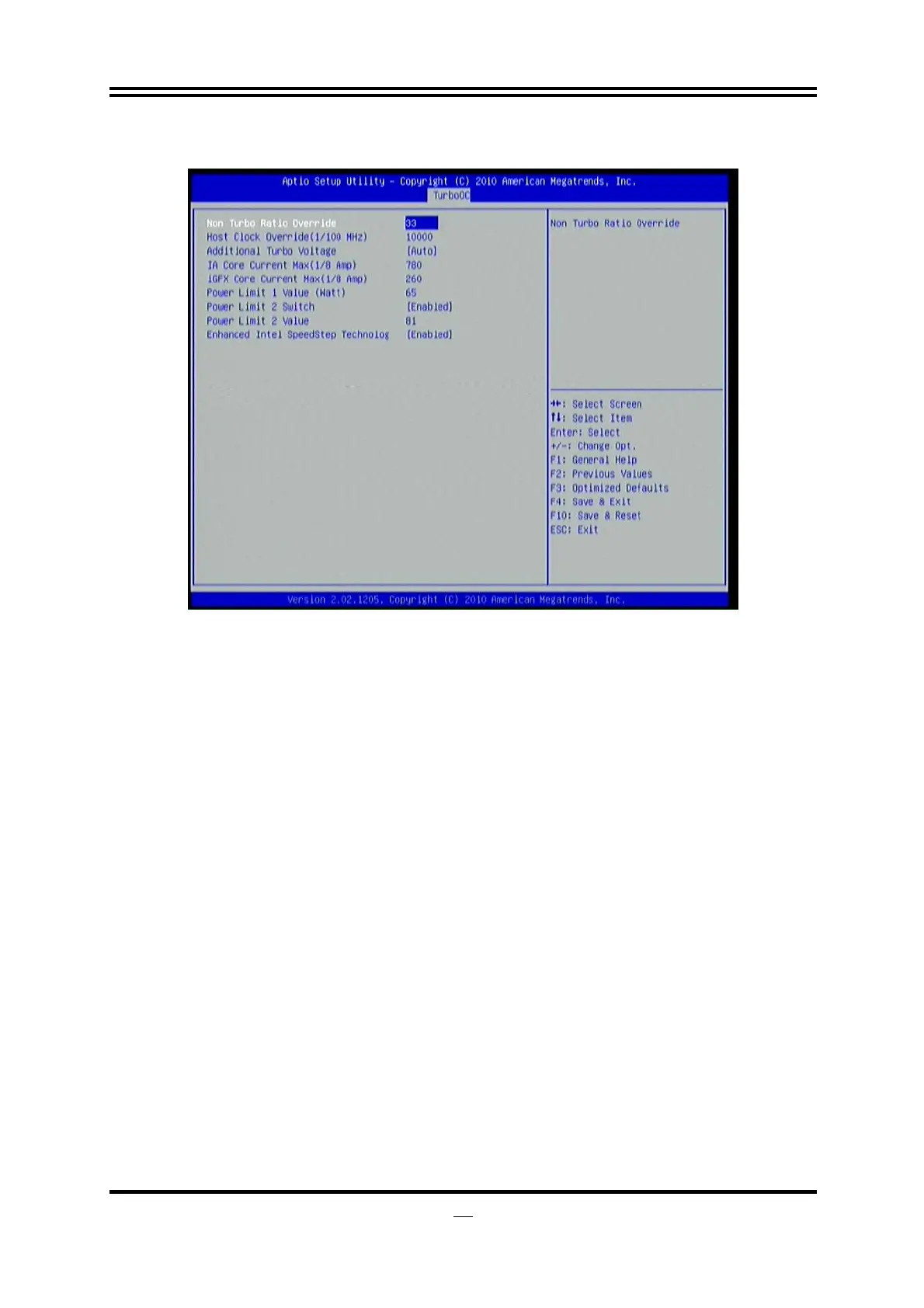

3-11-2 CPU Performance Tuning
Host Turbo Ratio Override
The setting range: 9~255.
Host Clock Override (1/100 Mhz)
The setting range: 10000~30000.
Additional Turbo Voltage
Use this item to add additional turbo voltage.
IA Core Current Max (1/8 AMP)
Use this item to set IA core current Max (1/8 AMP) from 0 to 8191.
IGFX Core Current Max (1/8 AMP)
Use this item to set IGFX core current Max (1/8 AMP) from 0 to 8191.
Power Limit 1 Value (Matt)
Use this item to set power limit 1 value (Matt) from 0 to 500.
Power Limit 2 Switch
The optional settings: [Enabled]; [Disabled].
Power Limit 2 Value
Use this item to set power limit 2 value (Matt) from 0 to 500.
Enhanced Intel SpeedStep Technology
The optional settings: [Enabled]; [Disabled].

Intel H67 Specifications

General

Socket Type	LGA 1155
Memory Type	DDR3
Max Memory Size	32 GB
SATA 6Gb/s	2
SATA 3Gb/s	4
USB 2.0 ports	14
PCIe 3.0 Support	No
Chipset	Intel H67
Integrated Graphics	Yes
