2-6 Connectors and Headers
2-6-1 I/O Back Panel Connectors
(1) PS/2 Keyboard /Mouse Connectors: from UK1
The connector is provided to connect PS/2 keyboard or mouse devices.
(2) D-Sub 15-pin Connector: VGA
VGA connector is the 15-pin D-subminiature female connector; it is for the
display devices, such as the CRT monitor, LCD monitor and so on.
(3) Digital Visual Interface: DVI1
This interface standard designed to maximize the visual quality of digital display
devices such as flat panel LCD computer displays and digital projectors.
(4) High-Definition Multimedia Interface: HDMI
This point-to-point interface is for audio and video signals designed as a
single-cable solution for home theater and consumer electronics equipment.
Notice! DVI port and HDMI port can not be used at the same time.
(5) USB 2.0 Port s: from UK1/USB/ USB20_LAN
The connectors are 4-pin USB 2.0 connectors to connect USB devices to the
system board.
(6) USB 3.0 Port s: USB 3_1
These blue connectors are 4-pin USB 3.0 connectors to connect USB devices to
the system board.
(7) LAN Port connector: RJ-45 LAN port from USB20_LAN
This connector is standard RJ-45 LAN jack for Network connection. The
connector supports 10MB/100MB/1G B/s data transfer rate.
(8) Audio Line-In, Lin-Out, MIC, RS-Out, CS-Out
，
SS-Out connector: AUDIO
These Connectors are 6 Phone-Jack for LINE-OUT, LINE-IN, MIC, RS-Out,
CS-Out
，
SS-Out audio connections.
Line-in: (BLUE) Audio input to sound chip
Line-out: (GREEN) Audio output to speaker
MIC: (PINK) Microphone Connector
RS-OUT: (BLACK) Rear-Surround audio output
CS-OUT: (ORANGE) Center/ Subwoofer audio output
SS-OUT: (GRAY) Side-Surround audio output

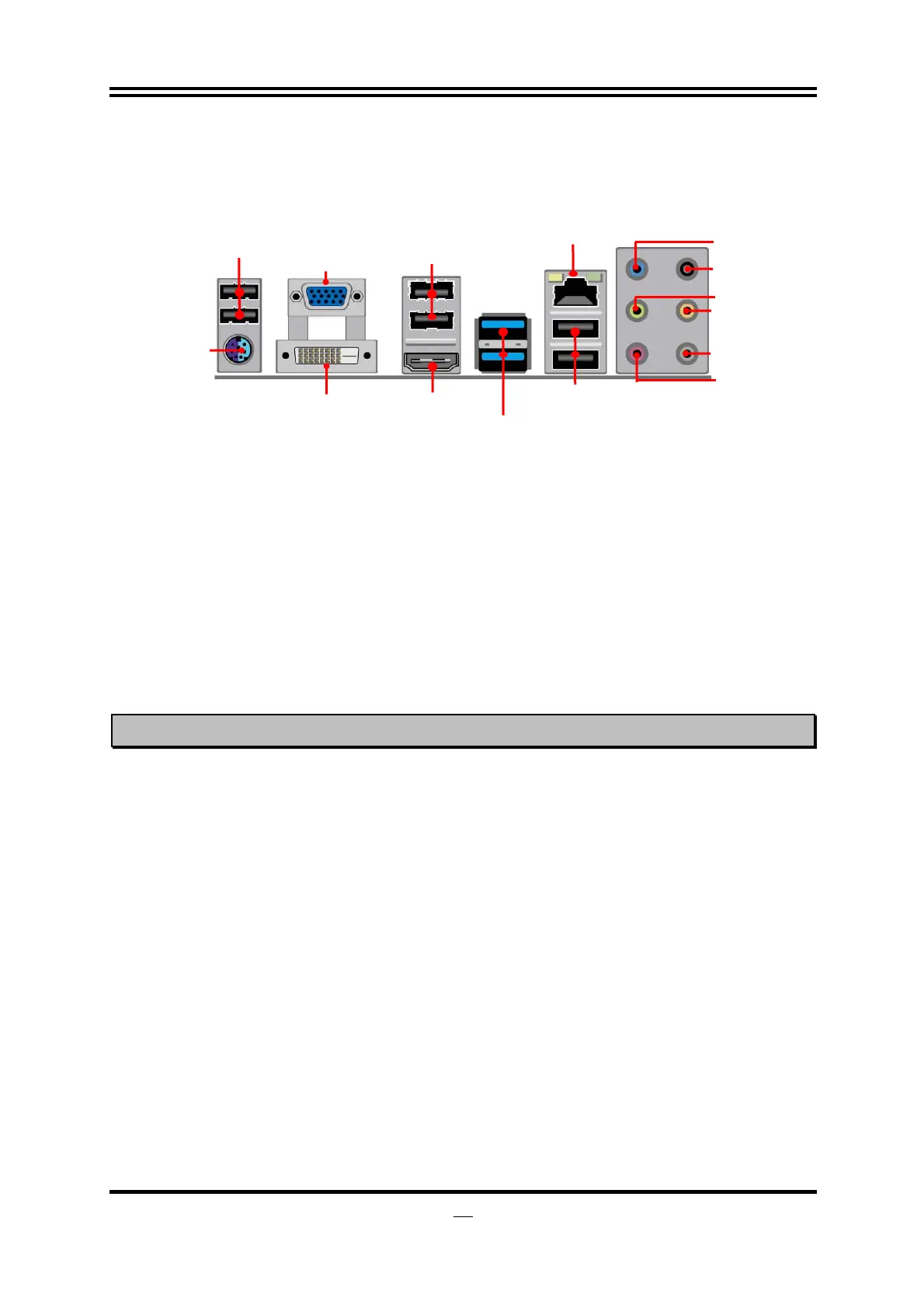

Line-OUT
RJ-45 LAN Port
Line-IN
MIC-IN
RS-OUT
CS-OUT
SS-OUT
USB 2.0 Ports
USB 3.0 Ports
PS/2 KB/MS
Port
USB 2.0 Ports
DVI Port
VGA Port
HDMI Port
USB 2.0 Ports
