Intel® Server S2600WF Product Family Configuration Guide
67

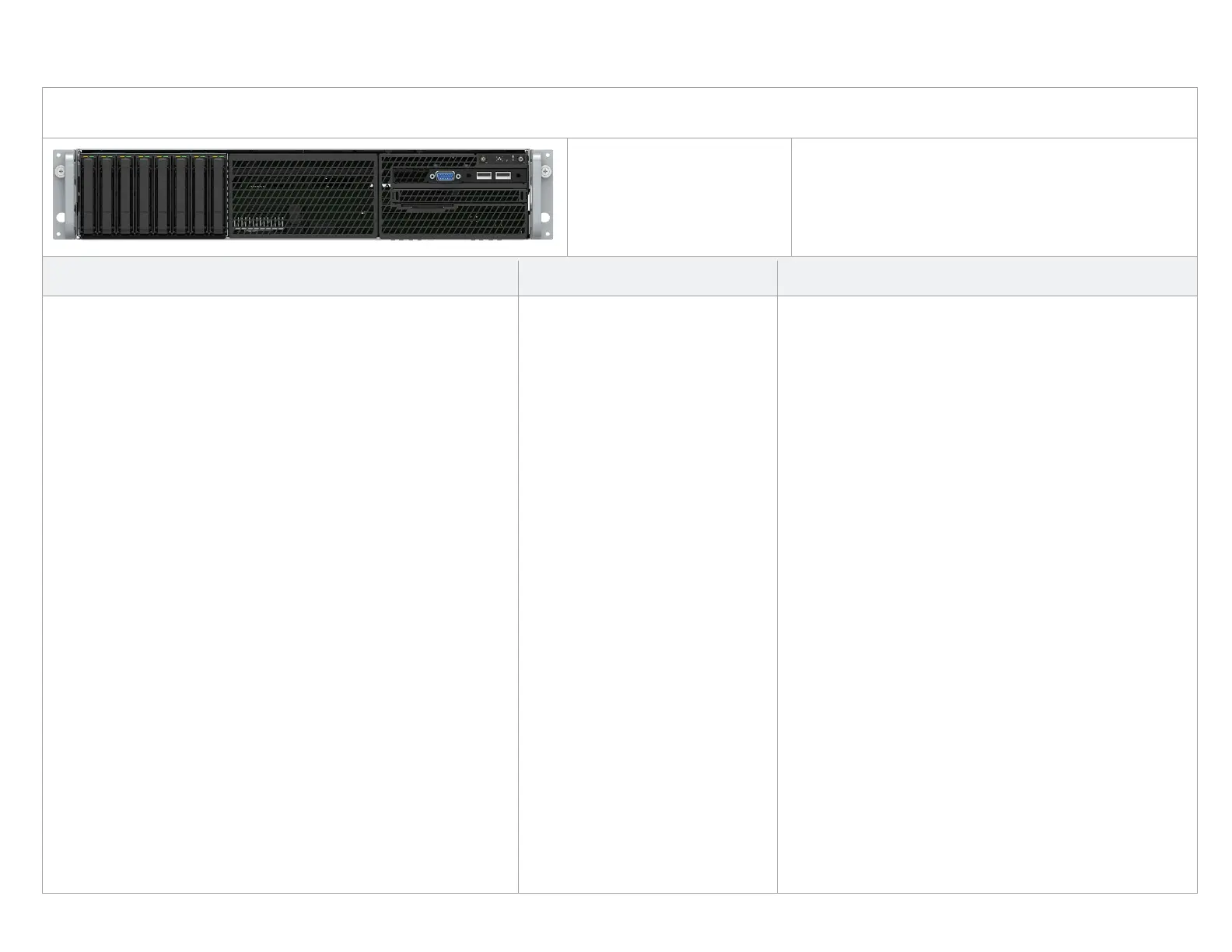

Table 32. Intel® Server System R2208WFQZSR product specifications and configuration requirements
Intel® Server System R2208WFQZSR
2U, Intel® Server Board S2600WFQR, 8 x 2.5” SATA/SAS/NVMe* front mount drives
iPC
R2208WFQZSR
MM#
986055
UPC
00735858406901
EAN
5032037151160
MOQ
1
Product type
L6 integrated system
Chassis form factor
2U rack mount
Packaged gross wt.
22.4 kg (49.2 lb)
Un-packaged net wt.
15.8 kg (34.7 lb)
Chassis dimensions
712 x 439 x 89 mm (L x W x H)
Package dimensions
983 x 577 x 260 mm (L x W x H)
Included
Required Items (sold separately)
Optional Accessories (sold separately)
(1) – 2U Chassis with Quick Reference Label affixed to top cover
(1) – Intel® Server Board S2600WFQR (Intel® QAT support) –
iPC S2600WFQR
(2) – PCIe* riser card brackets. Includes:
o (2) 3-slot PCIe* riser cards – iPC A2UL8RISER2
o (1) 2-slot low profile PCIe* riser card – iPC A2UX8X4RISER
(8) – 2.5” hot-swap drive bays with drive carriers and blanks. Includes:
o (1) SAS/NVMe combo backplane – iPC F2U8X25S3PHS
o (8) 2.5” hot-swap drive tool less carriers – iPC FXX25HSCAR3
(1) – Standard control panel assembly (board only – iPC FXXFPANEL2)
o 300 mm front panel cable – iPN H34381-xxx
(1) – Front I/O panel assembly (1 x VGA and 2 x USB)
o 620 mm USB 3.0 cable – iPN H76899-xxx
o 400 mm video cable – iPN H62114-xxx
(1) – 250 mm backplane I2C cable – iPN H91166-xxx
(1) – 290 mm Intel QAT cable – iPN J61138-xxx
(1) – 400/525/675 mm backplane power cable – iPN H82108-XXX
(1) – Standard 2U air duct – iPN H90554-xxx
(6) – Hot swap system fans – iPC FR2UFAN60HSW
(8) – DIMM slot blanks – iPN G75158-00x
(1) – 1300W AC power supply module – iPC AXX1300TCRPS
(1) – Power supply bay blank insert
(2) – AC power cord retention strap assembly – iPN H23961-00x
(2) – CPU heat sinks – iPC FXXCA78X108HS
(2) – CPU heat sink “NO CPU” Mylar* spacer insert – iPN J16115-XXX
(2) – Standard CPU carrier – iPN H72851-xxx
(1) – 3x Intel® RAID Maintenance Free Backup unit mounting bracket –
iPN H18238-00x
(1) – 250 mm fixed mount SSD power cable – iPN J29245-xxx
Spares for each screw type included
• Power cord(s) – See Section 5.6
• Rack mount kit – See Section 5.7
• (1) or (2) 1
st
or 2
nd
Intel® Xeon®
processor Scalable family
• ECC DDR4 memory (RDIMM or
LRDIMM)
Note: 4-port mini-SAS HD connectors are present on
S2600WFQ but are not configured as SATA; these cables are
used only for Intel® QAT. An add-in SAS card or module is
needed to support SATA/SAS front devices.
Note: By default the front drive bays are cabled to onboard
SATA only ports. An add-in SAS card or module is needed to
support SAS devices.
• Second 1300W AC power supply module to support power
redundancy – iPC AXX1300TCRPS
• Intel® Ethernet Network Adapter for OCP* - See Chapter 5.4
for available options
• Intel® 12G SAS RAID module and Intel® RAID Maintenance
Free Backup unit - See Chapter 5.5 for available options
• SAS data cables – Depending on the location of the SAS data
controller, new data cables may be necessary. See Chapter 4.
• PCIe* OCuLink data cables (1 per NVMe* drive) - See Chapter
4
• 8 x 2.5” drive bay module upgrade kit – See Section 4.7 for
available options
• SATA upgrade key for Intel® Embedded Server Technology 2
RAID 5 support – iPC RKSATA4R5
• Rear mount hot-swap drive bay accessory kit –
iPC A2UREARHSDK2
• Storage drives
• DDR4-compatible Intel® Optane™ DC persistent memory
module (requires an installed 2
nd
Gen Intel Xeon Scalable
processor)
See Chapters 5 and 6 for all available accessory options.
