Intel® Server S2600WF Product Family Configuration Guide
84
4.2 1U/2U Server System SAS/SATA/NVMe* Cable Kits
Product tables in this section reference specific SAS/SATA and NVMe cables. Different cable kits are offered to support specific system
configurations. The product order code for each cable kit is made up of a string of letters and numbers to identify the type of cable included in the kit.
The following table identifies the different data cable connector types and the identifiers used in the cable kit product codes.

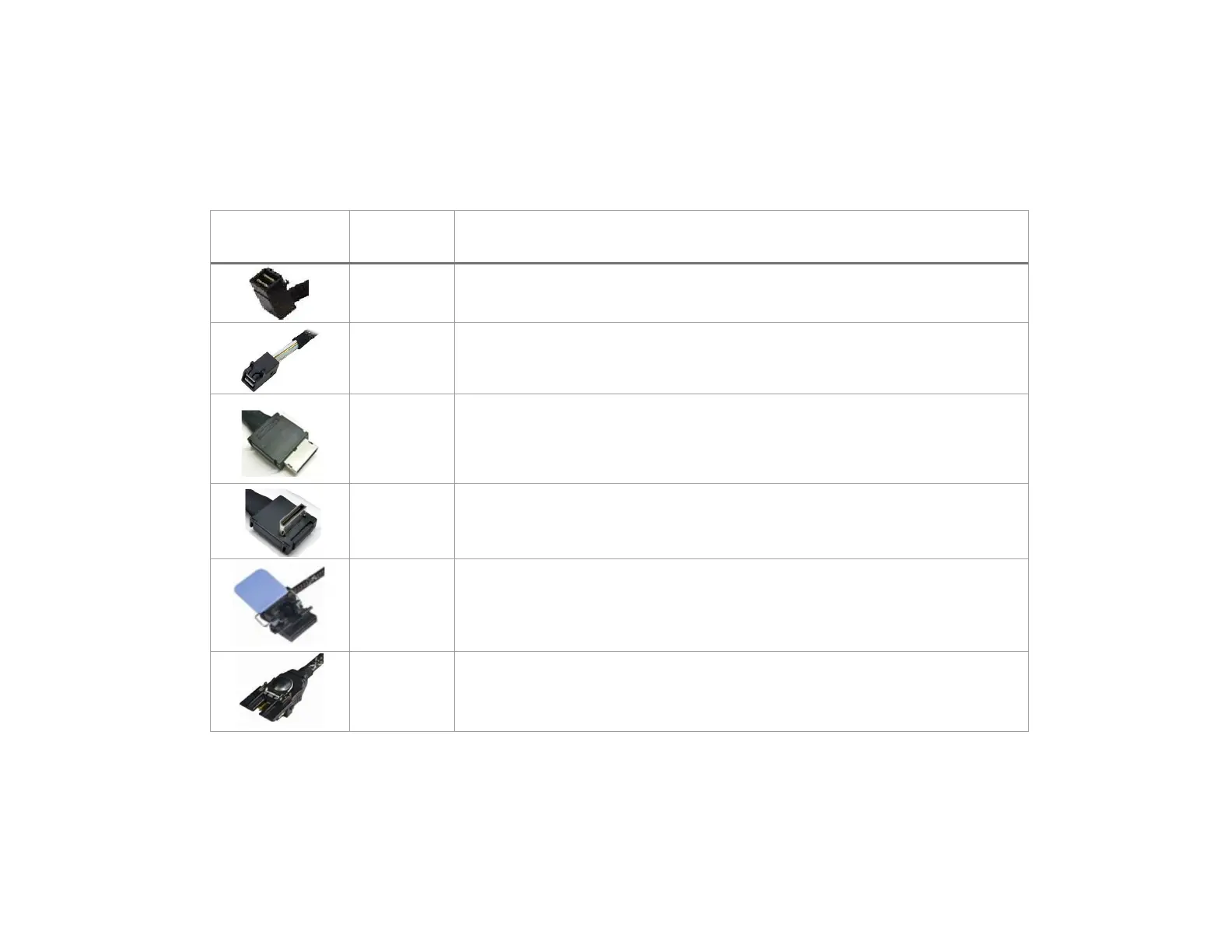

Table 51.Data cable connector identification
Connector Image
Cable Code
Description
HR
Right angle SFF-8643 mini SAS HD connector
HD
Straight SFF-8643 mini SAS HD connector
CV
Straight NVMe* OCuLink SFF-8611 connector
CR
Right angle NVMe* OCuLink SFF-8611 connector
R1
L1
IFT Carrier card to Fabric Processor (Fabric Processor side) connector
R1 = Right angle, right exit
L1 = Right angle, left exit
IFP
IFT Carrier card to Fabric Processor (Add-in Carrier Board/Mezzanine side) connector
