4.7.3 2U - 8x2.5” Drive Bay Module #3 – Cable Guide (with no SAS Expander)
4.7.3.1 Drive Bay Module # 3 - SAS/SATA Cable Guide
The following table identifies the appropriate SATA/SAS data cable kit(s) necessary to route data signals from onboard SATA ports or available SAS
RAID mezzanine and PCIe add-in options to the 8 x 2.5” backplane installed to Drive Bay Module #3.
Table 63. Drive bay module #3 SAS/SATA cable guide
System Configuration Drive Support
Cables for Onboard Multi-port
SATA Ports to Drive Bay #3
Cables for Mezzanine 12 Gb SAS ROC
Module to Drive Bay #3
Cables for 12 Gb SAS RAID PCIe*
add-in card to Drive Bay #3

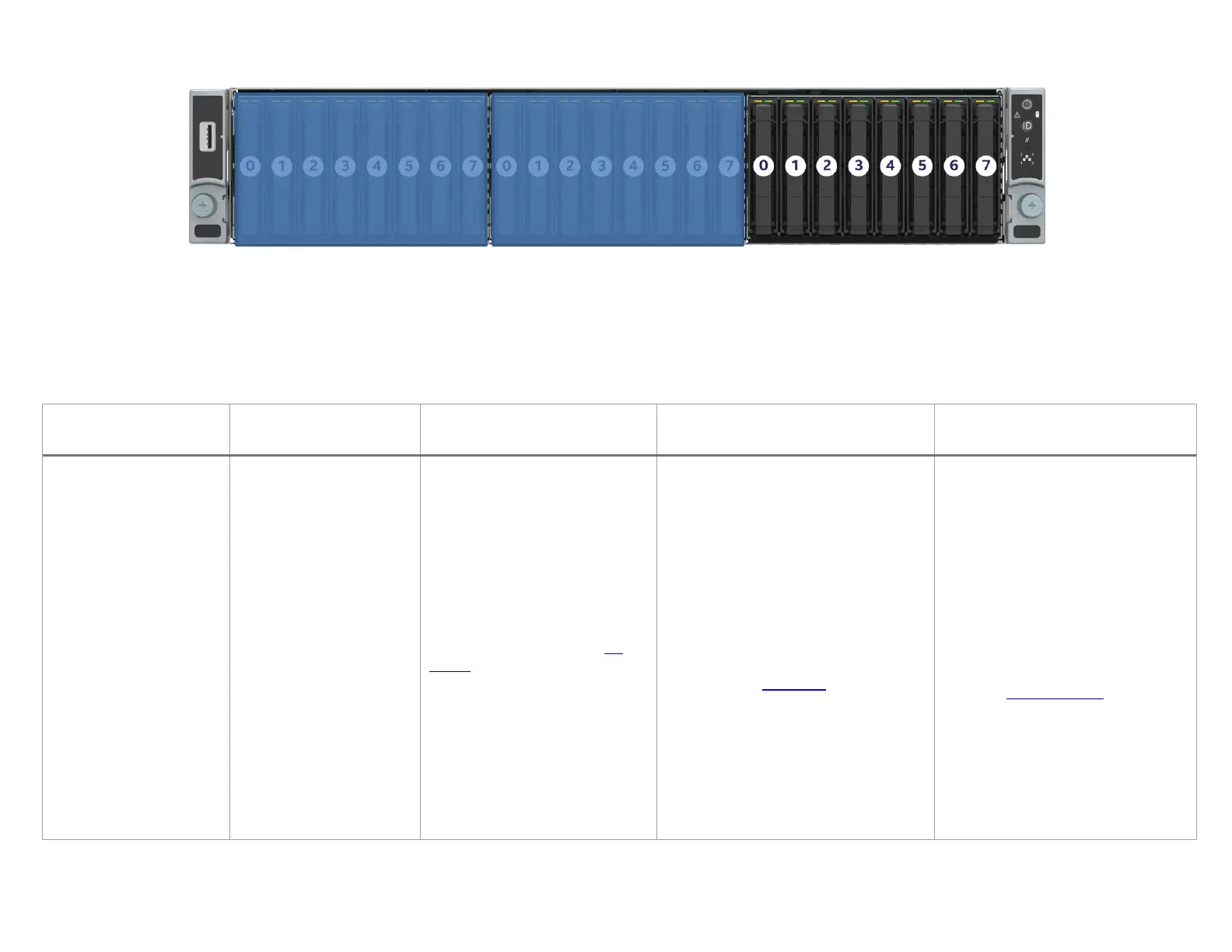

Drive Bay #3
(no SAS Expander)
R2224WF…
8 x 2.5”
SATA – All Drives
SAS – All Drives
NVMe – All Drives
SATA 0-3

BP 0-3
800mm HD -- HD
SATA 4-7

BP 4-7
730mm HD -- HD
From data above, select
appropriate cable kits from list
below:
AXXCBL730HDHD
(2) 730mm cables Included in all
2.5” L6
AXXCBL800HDHD
SAS Mezz

BP 0-3
730mm HD -- HD
SAS Mezz

BP 4-7
730mm HD -- HD
From data above, select appropriate
cable kits from list below:
AXXCBL730HDHD
(2) 730mm cables Included in all 2.5” L6)
From Riser #1:
SAS PCIe

BP 0-3
1
730 or 875mm HD -- HD
SAS PCIe

BP 4-7
1
800 or 950mm HD -- HD
From Riser #2:
SAS PCIe

BP 0-3
1
730 or 875mm HD -- HD
SAS PCIe

BP 4-7
1
650 or 800mm HD -- HD
From data above, select appropriate
cable kits from list below:
AXXCBL650HDHD
AXXCBL730HDHD
(2) 730mm Included in all 2.5” L6
AXXCBL800HDHD
AXXCBL875HDHD
(4) 875mm Included in R2224 L6
AXXCBL950HDHD
1
1 or 2 cable lengths may be specified for a PCIe add-in card. Generally, if the cable connector of the add-in card is located on the back edge of the card, a shorter cable is specified.
Cable connectors on the top edge or near the front of the add-in card will require the longer cable length.
Drive Bay #3
