4.4 1U 8 x 2.5” – R1208WFxxx SAS/SATA/NVMe* Data Cable Guide

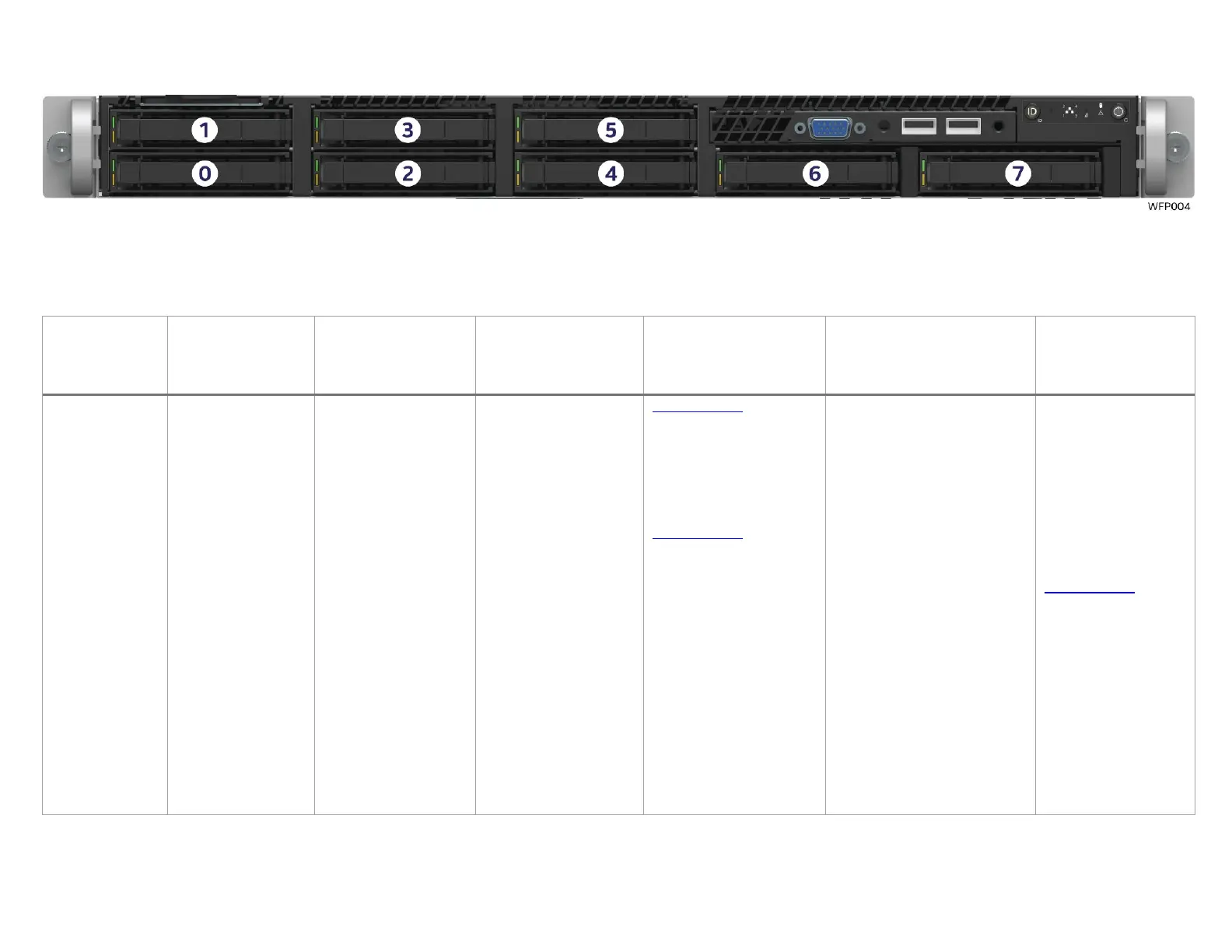

Figure 24. R1208WFxxx SAS/SATA backplane
Table 54. Data cable guide for Intel® Server System R1208WFxxx
System
Onboard Multi-port
SATA Ports to
Mezzanine 12 Gb SAS
ROC Module to
12 Gb SAS RAID PCIe*
Add-In card to
NVMe*
Onboard PCIe* OCuLink to
4 Port PCIe Switch
Card to Backplane
R1208WF…
8 x 2.5”
6Gb SATA all drives
12 Gb SAS all drives
PCIe NVMe SFF all
drives
SATA 0-3
BP 0-3
650 mm HR --- HD
AXXCBL650HDHRT
SATA 4-7
BP 4-7
850 mm HR --- HD
AXXCBL850HDHRS
L6 systems ship with 1
each cable
The following cables
are required for
Mezzanine SAS ROC
modules with
Horizontal connectors:
SAS Mezz
BP 0-3
650 mm HD --- HD
AXXCBL650HDHD
SAS Mezz
BP 4-7
800 mm HD --- HD
AXXCBL800HDHD
Mezzanine SAS ROC
Modules with vertical
connectors require the
following cable kit
AXXCBL850HDHRS for
backplane drives 0-3
SAS PCIe
BP 0-3
650 mm HD --- HD
SAS PCIe
BP 4-7
1
730 or 800 mm HD ---
HD
From Riser #2
SAS PCIe
BP 0-3
1
650 or 730mm HD --- HD
SAS PCIe
BP 4-7 **
800 or 875 mm HD ---
HD
From data above, select
appropriate cable kits
from list below:
See notes below
AXXCBL650HDHD
AXXCBL730HDHD
AXXCBL800HDHD
PCIe SSD 0 (CR)
BP 0 (CV)
470mm – AXXCBL470CVCR
PCIe SSD 1 (CR)
BP 1 (CV)
530mm – AXXCBL530CVCR
PCIe SSD 2 (CR)
BP 2 (CV)
800mm – AXXCBL800CVCR
PCIe SSD 3 (CR)
BP 3 (CV)
700mm – AXXCBL700CVCR
Switch Card
BP 4-7
890mm -
A1U4PSWCXCVK
From Riser #2
Retimer Card
BP 4-
7
945mm -
A1U4PRTCXCXK
1
1 or 2 cable lengths may be specified for a PCIe* add-in card. Generally, if the cable connector of the add-in card is located on the back edge of the card, a shorter cable is specified.
Cable connectors on the top edge or near the front of the add-in card will require the longer cable length.
