Intel® Server S2600WF Product Family Configuration Guide
91
4.3 1U 4 x 3.5” – R1304WFxxx SAS/SATA Data Cable Guide

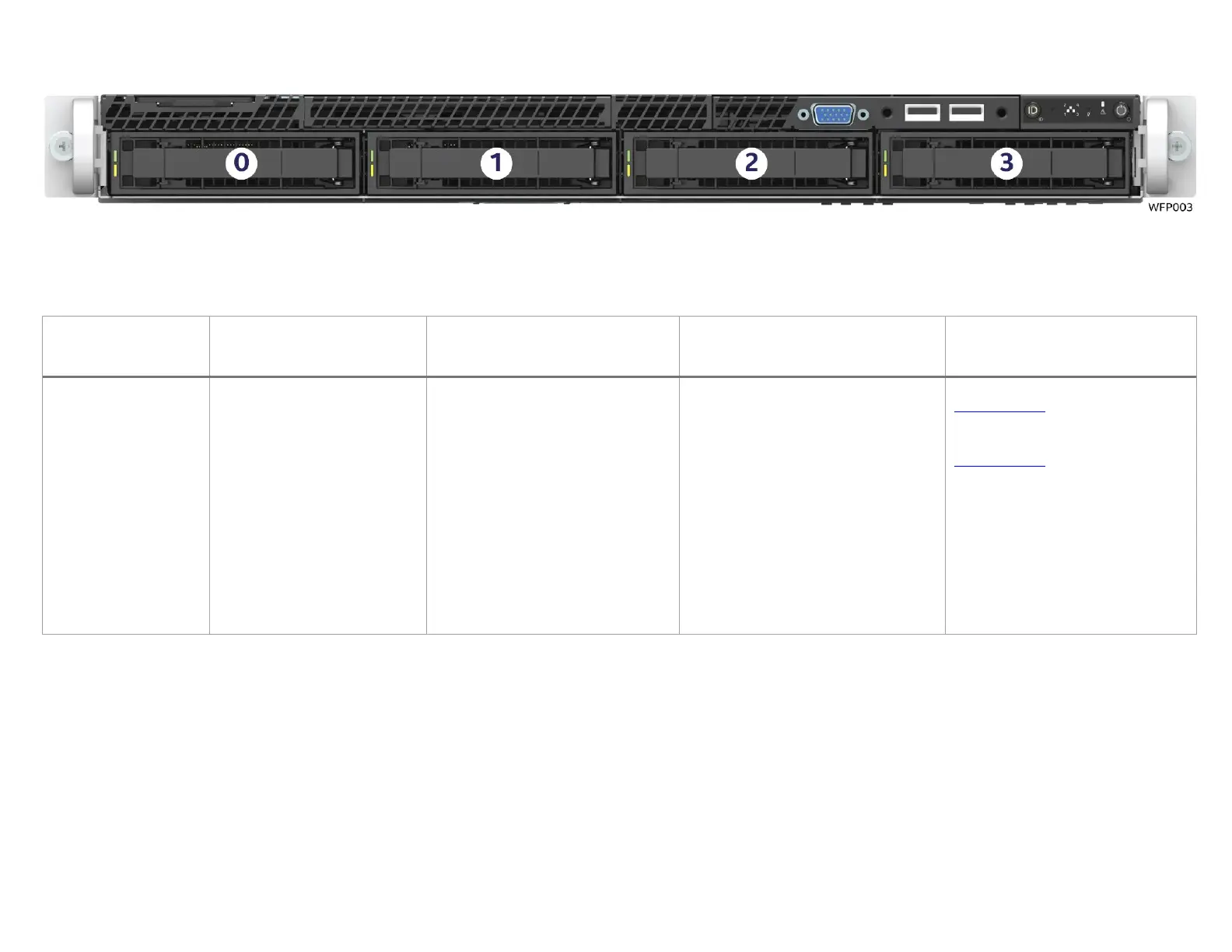

Figure 23. R1304WFxxx SAS/SATA backplane (no NVMe* drive support)
Table 53. Data cable guide for Intel® Server System R1304WFxxx
System Configuration
Drive Support
SATA
Onboard Mini-SAS HD SATA
Connector to Backplane (BP)
SAS
Mezzanine 12 Gb SAS ROC Module to
Backplane (BP)
SAS
12 Gb SAS RAID PCIe* add-in card
to Backplane (BP)
R1304WF…
4 x 3.5”
6 Gb SATA all drives
12 Gb SAS all drives
SATA 0-3

BP 0-3
850 mm HR --- HD
AXXCBL850HDHRT
L6 system ships with 1 cable
The following cable is required for
Mezzanine SAS ROC modules with
Horizontal connectors
SAS Mezz

BP 0-3
800 mm HD --- HD
AXXCBL800HDHD
The following cable is required for
Mezzanine SAS ROC modules with
Vertical connectors
AXXCBL850HDHRS
From Riser #1
SAS PCIe

BP 0-3
1
875 or 950 mm HD --- HD
From Riser #2
SAS PCIe

BP 0-3
1
730 or 875 mm HD --- HD
From data above, select appropriate
cable kits from list below:
See note below
AXXCBL730HDHD
AXXCBL875HDHD
AXXCBL950HDHD
1
1 or 2 cable lengths may be specified for a PCIe* add-in card. Generally, if the cable connector of the add-in card is located on the back edge of the card, a shorter cable is specified.
Cable connectors on the top edge or near the front of the add-in card will require the longer cable length.
