Intel® Server S2600WF Product Family Configuration Guide
93
4.5 2U 8 x 3.5” – R2308WFxxx SAS/SATA Data Cable Guide

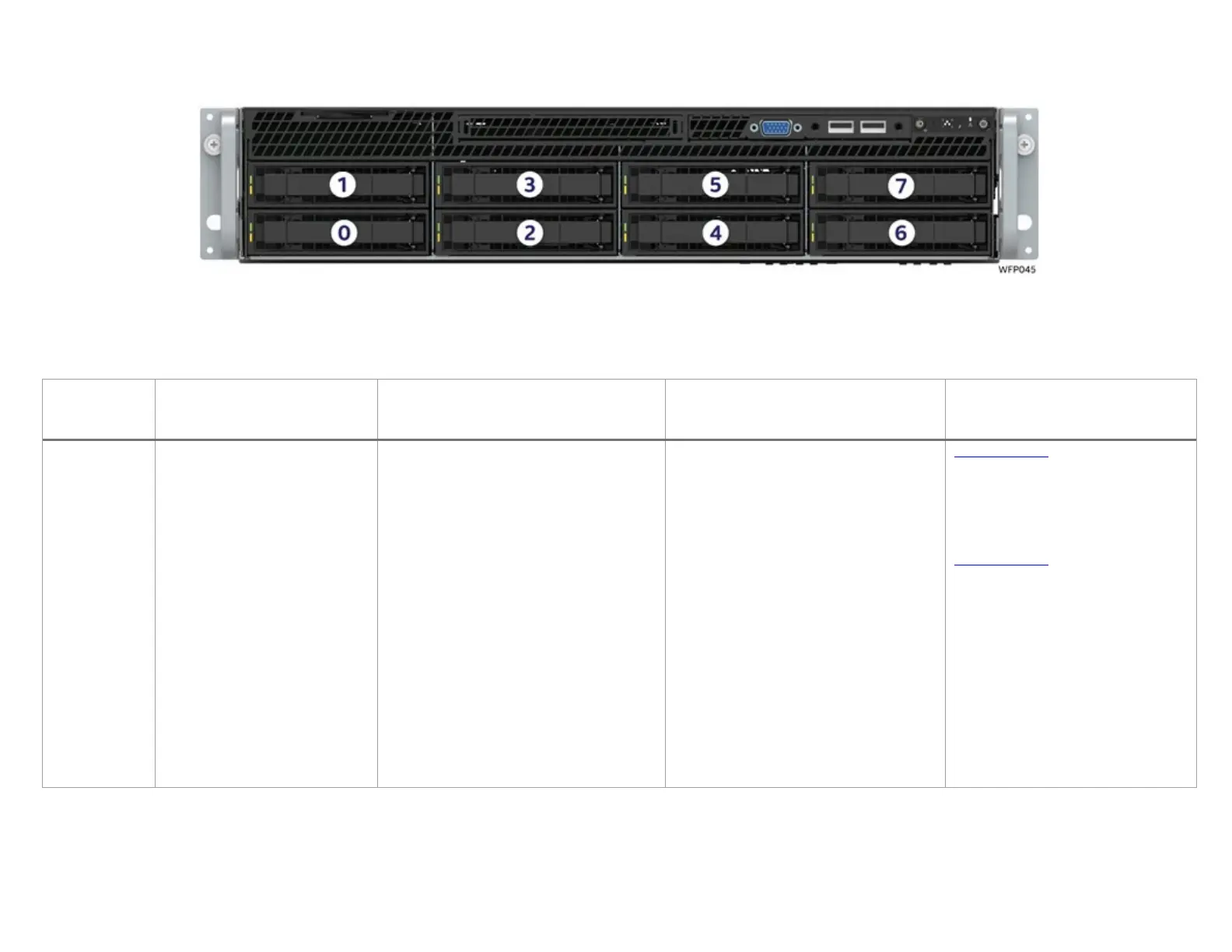

Figure 25. R2308WFxxx SAS/SATA backplane (no NVMe* support)
Table 55. Data cable guide for Intel® Server System R2308WFxxx
System
Configuration
Drive Support
SATA
Onboard Multi-port SATA Ports to
Backplane (BP)
SAS
Mezzanine 12 Gb SAS ROC Module to
Backplane (BP)
SAS
12 Gb SAS RAID PCIe* add-in card
to Backplane (BP)
R2308WF….
8 x 3.5”
6 Gb SATA all drives
12 Gb SAS all drives
SATA 0-3

BP 0-3
730 mm HD --- HD
AXXCBL730HDHD
SATA 4-7

BP 4-7
875 mm HD --- HD
AXXCBL875HDHD
L6 systems ship with 1 each cable
SAS Mezz

BP 0-3
730 mm HD --- HD
AXXCBL730HDHD
SAS Mezz

BP 4-7
875 mm HD --- HD
AXXCBL875HDHD
From Riser #1:
SAS PCIe

BP 0-3
1
650 or 730 mm HD --- HD
SAS PCIe

BP 4-7
1
800 or 950 mm HD --- HD
From Riser #2:
SAS PCIe

BP 0-3
1
730 or 800 mm HD --- HD
SAS PCIe

BP 4-7
1
730 or 800 mm HD --- HD
From data above, select appropriate
cable kits from list below:
See Notes below
AXXCBL650HDHD
AXXCBL730HDHD
AXXCBL800HDHD
AXXCBL950HDHD
1
1 or 2 cable lengths may be specified for a PCIe* add-in card. Generally, if the cable connector of the add-in card is located on the back edge of the card, a shorter cable is specified.
Cable connectors on the top edge or near the front of the add-in card will require the longer cable length.
