Intel® Server S2600WF Product Family Configuration Guide
83

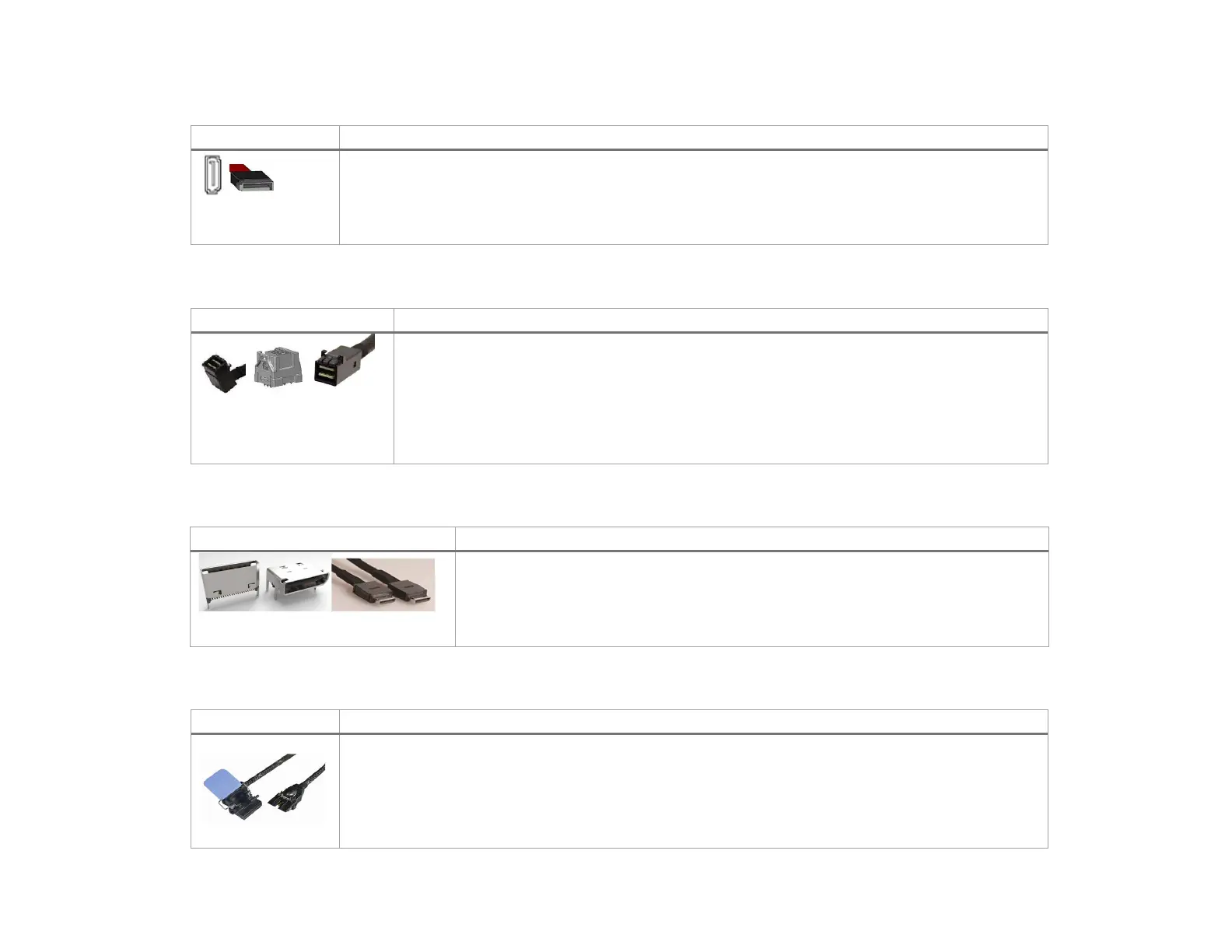

4.1 Cable Connector Types
Table 47. Single-port SATA cable connector
Description
7-pin Single Port SATA
Support for up to 6 GB/sec SATA devices
Where used:
• On the server board – (2) single port SATA connectors (sSATA 4, sSATA 5)
•
2U Rear Mount Hot-Swap Backplane (iPC A2UREARHSDK2)
Table 48. Multiport mini SAS HD cable connectors
Description
SFF-8643
Support for up to 12 Gb/Sec SAS
Where used:
• On the server board – (2) 4-port SATA connectors – (SATA 0-3 & SATA 4-7)
• All 12 Gb/sec SAS capable hot swap backplanes
• All 12 Gb/sec SAS RAID Controllers
•
All 12 Gb/sec SAS Expander Cards
Table 49. PCIe* OCuLink cable connectors
Description
OCuLink connector
Support for PCIe NVMe SFF (2.5”) SSDs
Where used:
• On the server board – 2 or 4 connectors (depending on the board model)
• All backplanes that include support for NVMe SFF SSDs
Table 50. Intel® Omni-Path cable connectors
Description
Fabric IFT Carrier connector
Support for fabric processors
Support for IFT Carrier/Mezzanine boards
Where Used:
• Connects a fabric processor to the SB Intel® Omni-Path IFT Carrier Kit Mezz (AWF1PFABKITM) or the SB
Intel Omni-Path IFT Carrier Kit PCIe* (AWF1PFABKITP)
