Intel® Server S2600WF Product Family Configuration Guide
53

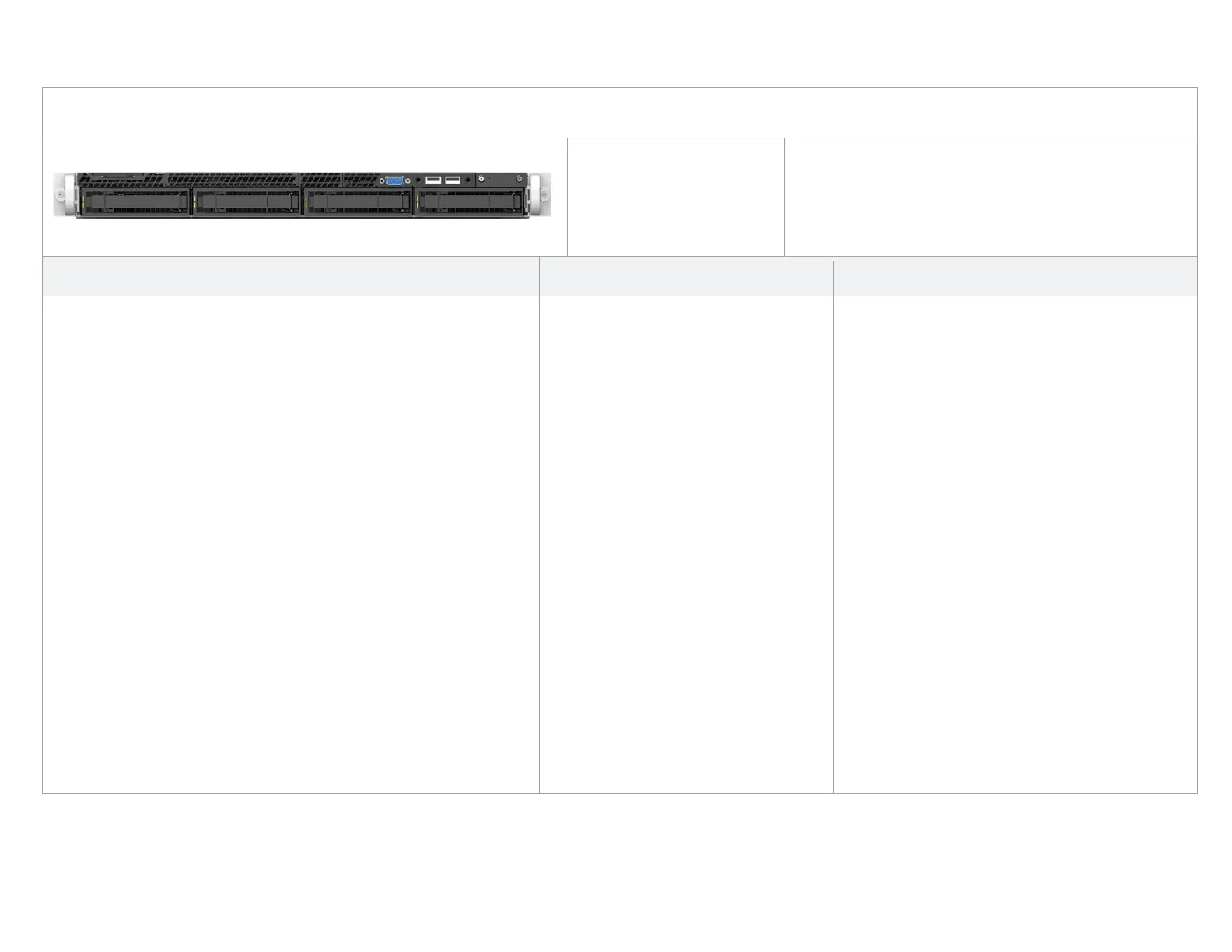

Table 19. Intel® Server System R1304WF0YSR product specifications and configuration requirements
Intel® Server System R1304WF0YSR
1U, Intel® Server Board S2600WF0R, 4 x 3.5” HDD or 4 x 2.5” SSD SAS/SATA front mount drives
iPC
R1304WF0YSR
MM#
986047
UPC
00735858406826
EAN
5032037151085
MOQ
1
Product type
L6 integrated system
Chassis form factor
1U rack mount
Packaged gross wt.
20.6 kg (45.3 lb)
Un-packaged net wt.
12.3 kg (27.1 lb)
Chassis dimensions
712 x 439 x 43.2 mm (L x W x H)
Package dimensions
983 x 577 x 260 mm (L x W x H)
Included
Required Items (sold separately)
Optional Accessories (sold separately)
(1) – 1U chassis with Quick Reference Label affixed to top cover
(1) – Intel® Server Board S2600WF0R (no onboard LAN) – iPC S2600WF0R
(2) – Riser card assembly with 1 slot PCIe x16 riser card –
iPC F1UL16RISER3
(4) – 3.5” hot-swap drive bays with drive carriers and drive blanks. Includes:
o (1) 12 Gb SAS backplane – iPC FR1304S3HSBP
o (4) 3.5” hot swap drive tool less carriers – iPC FXX35HSCAR2
(1) – Pre-installed standard control panel assembly
(board only – iPC FXXFPANEL2)
o 260 mm front panel cable – iPN J25698-xxx
(1) – Pre-installed front I/O panel assembly (1 x VGA and 2 x USB)
o 620 mm USB 3.0 cable – iPN H76899-xxx
o 400 mm video cable – iPN H62114-xxx
(1) – 150 mm backplane I2C cable – iPN H91171-xxx
(1) – 850 mm mini SAS HD cable – iPC AXXCBL850HDHRT
(1) – 350 mm backplane power cable – iPN H82100-xxx
(1) – Air duct – iPN H90054-xxx
(6) – Dual rotor system fans – iPC FR1UFAN10PW
(1) – 1100W power supply module - iPC AXX1100PCRPS
(2) – CPU heat sinks, 39 fin passive – iPN J39509-xxx
(2) – CPU heat sink “No CPU” label inserts – iPN J16115-xxx
(2) – Standard CPU Carriers – iPN H72851-xxx
(8) – DIMM slot blanks – iPN G75158-xxx
(1) – Chassis Stiffener Bar – iPN J16623-xxx
(1) – Power supply bay blank insert
(2) – AC power cord retention strap assembly – iPN H23961-00x
Spares for each screw type included
• Power cord(s) – See Section 5.6
• Rack mount kit – See Section 5.7
• (1) or (2) 1
st
or 2
nd
Intel® Xeon® processor
Scalable family
• ECC DDR4 memory (RDIMM or LRDIMM)
Note: By default the front drive bays are cabled to
onboard SATA only ports. An add-in SAS card or
module is needed to support SAS devices.
• Second 1100W AC power supply module to
support power redundancy – iPC AXX1100PCRPS
• Intel® Ethernet Network Adapter for OCP* - See
Chapter 5.4 for available options
• Intel® 12G SAS RAID module and Intel® RAID
Maintenance Free Backup unit - See Chapter 5.5 for
available options
• SAS Data cable – Depending on the location of the
SAS Data controller, a new data cable may be
necessary. See Chapter 4.
• SATA upgrade key for Intel® Embedded Server
Technology 2 RAID 5 support – iPC RKSATA4R5
• Storage drives
• DDR4-compatible Intel® Optane™ DC persistent
memory module (requires an installed 2
nd
Gen Intel
Xeon Scalable processor)
See Chapters 5 and 6 for all available accessory
options.
