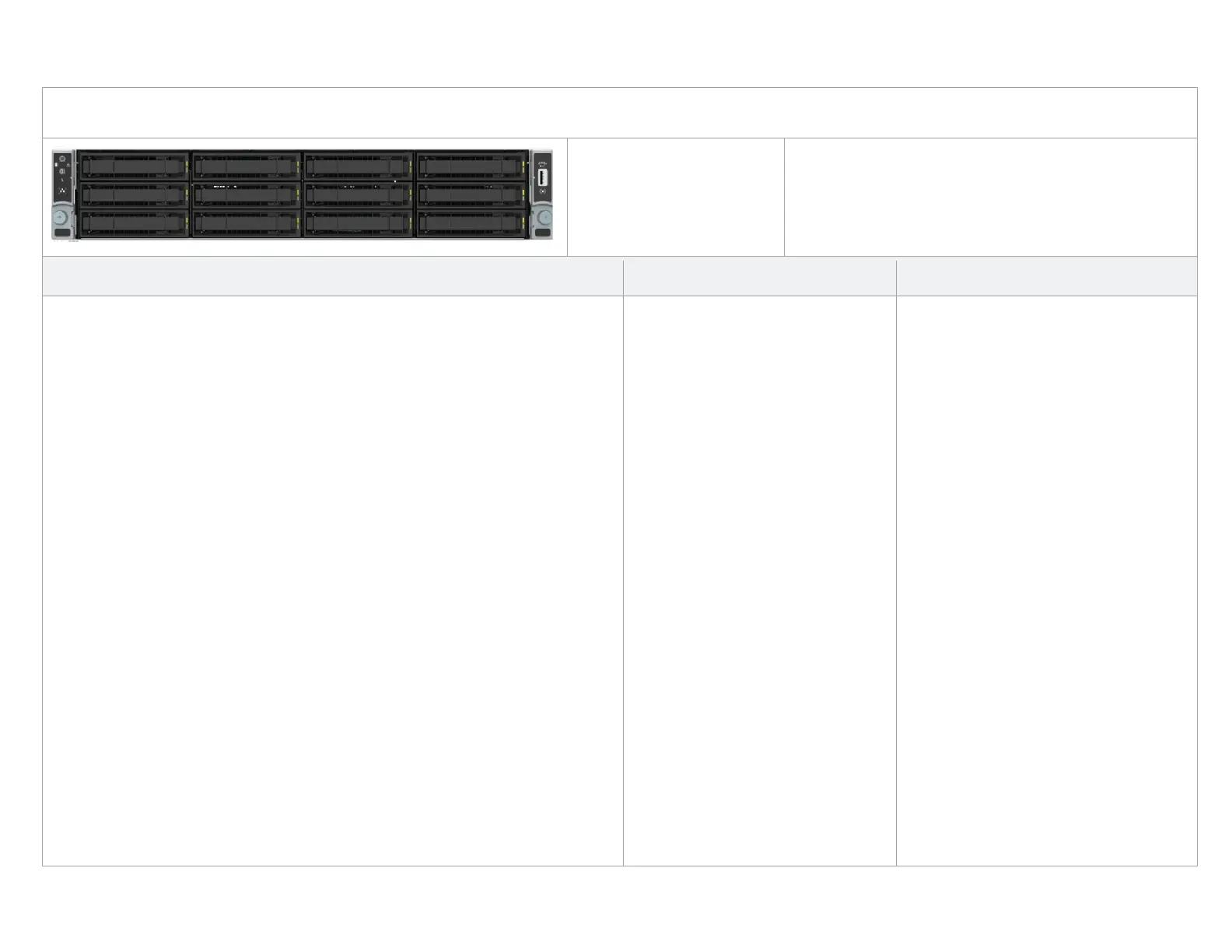

Table 42. Intel® Server System LFRB2312WFTF601 product specifications and configuration requirements
Intel® Server System LFRB2312WFTF601
2U, Intel® Server Board S2600WFTF, 12 x 3.5” HDD or 12 x 2.5” SSD SATA/SAS front mount drives (support for up to 2 NVMe* drives), Intel® Xeon® Gold 6130H processor
iPC
LFRB2312WFTF601
MM#
974990
UPC
00735858388771
EAN
5032037137324
MOQ
1
Product type
L9 integrated system
Chassis form factor
2U rack mount
Packaged gross wt.
25.0 kg (55.0 lb)
Un-packaged net wt.
17.9 kg (39.5 lb)
Chassis dimensions
712 x 439 x 89 mm (L x W x H)
Package dimensions
983 x 577 x 260 mm (L x W x H)
Included
Required Items (sold separately)
Optional Accessories (sold separately)
(1) – 2U Chassis with Quick Reference Label affixed to top cover
(1) – Intel® Server Board S2600WFTF (dual 10GbE LAN) – iPC S2600WFTF
(2) – Intel® Xeon® Gold 6130H processor
(2) – 16 GB, RDIMM, DDR4, 2666 memory module – iPN J26609-002
(1) – Intel® Remote Management Module 4 Lite 2 – iPC AXXRMM4LITE2
(2) – PCIe* riser card brackets. Includes:
o (2) 3-slot PCIe* riser cards – iPC A2UL8RISER2
o (1) 2-slot low profile PCIe* riser card – iPC A2UX8X4RISER
(12) – 3.5” hot-swap drive bays with drive carriers and blanks. Includes:
o (1) SAS/NVMe combo backplane – iPC F2U12X35S3PH
o (12) 3.5” hot-swap drive tool less carriers – iPC FXX35HSCAR2
(1) – Storage rack handles set – iPN H98453-001
(1) – Mini front panel (board only – iPN G28538-xxx)
(1) – 410 mm front panel cable – iPN H26893-xxx
(1)- 640 mm front panel USB 2.0 cable – iPN H20005-xxx
(1) – RFID antenna – iPN H69566-xxx
(1) – 175 mm backplane I2C cable – iPN H91172-xxx
(1) – 800 mm mini SAS HD cable – iPC AXXCBL800HDHD
(1) – 875 mm mini SAS HD cable – iPC AXXCBL875HDHD
(1) – 950 mm mini SAS HD cable – iPC AXXCBL950HDHD
(1) – 525/675 mm backplane power cable – iPN H82097-xxx
(1) – Standard 2U air duct – iPN H90554-xxx
(6) – Hot-swap system fans – iPC FR2UFAN60HSW
(16) – DIMM slot blanks – iPN G75158-00x
(2) – 1300W AC power supply module – iPC AXX1300TCRPS
(2) – AC power cord retention strap assembly – iPN H23961-00x
(2) – CPU heat sinks – iPC FXXCA78X108HS
(2) – Standard CPU carrier – iPN H72851-xxx
(1) – 3x Intel® RAID Maintenance Free Backup unit mounting bracket – iPN H18238-00x
(1) – 250 mm fixed mount SSD power cable – iPN J29245-xxx
Spares for each screw type included
• Power cord(s) – See Section 5.6
• Rack mount kit – See Section 5.7
Note: By default the front drive bays are
cabled to onboard SATA only ports. An add-
in SAS card or module is needed to support
SAS devices.
• Intel® Ethernet Network Adapter for OCP*
- See Chapter 5.4 for available options
• Intel® 12G SAS RAID module and Intel®
RAID Maintenance Free Backup unit - See
Chapter 5.5 for available options
• SAS data cables – Depending on the
location of the SAS data controller, new
data cables may be necessary. See
Chapter 4.
• PCIe* OCuLink data cables (1 per NVMe*
drive) - See Chapter 4
• SATA upgrade key for Intel® Embedded
Server Technology 2 RAID 5 support –
iPC RKSATA4R5
• Rear mount hot-swap drive bay accessory
kit – iPC A2UREARHSDK2
• ECC DDR4 memory (RDIMM or LRDIMM)
• Storage drives
See Chapters 5 and 6 for all available
accessory options.
