Intel® Server Board S1200SP Family Technical Product Specification
129
Appendix E. Supported Intel
®
Server Chassis
The Intel
®
Server Board S1200SP Family requires an active processor heat sink solution when integrated in the
Intel
®
pedestal server chassis listed below. The Intel
®
Server Board S1200SP supports up to 80W TDP Intel
®
Xeon
®
Processor.
Table 68. Compatible Intel
®
Server Chassis P4000S Family
Intel
®
Server Chassis SKU
System Fans
Storage Drives
Power Supply(s)
P4304XXSHCN
One fixed 92x38mm
rear system fan
Four 3.5” Hotswap Drive Bays
One 365W non-
redundant PSU
P4304XXSFCN
One fixed 92x38mm
rear system fan
Four 3.5” Fixed Drive Trays
One 365W non-
redundant PSU
P4000XXSFDR
One fixed 92x38mm
rear system fan
One fixed 92x32mm
PCI region fan
Four 3.5” Fixed Drive Trays
Two 460W CRPS
PSUs

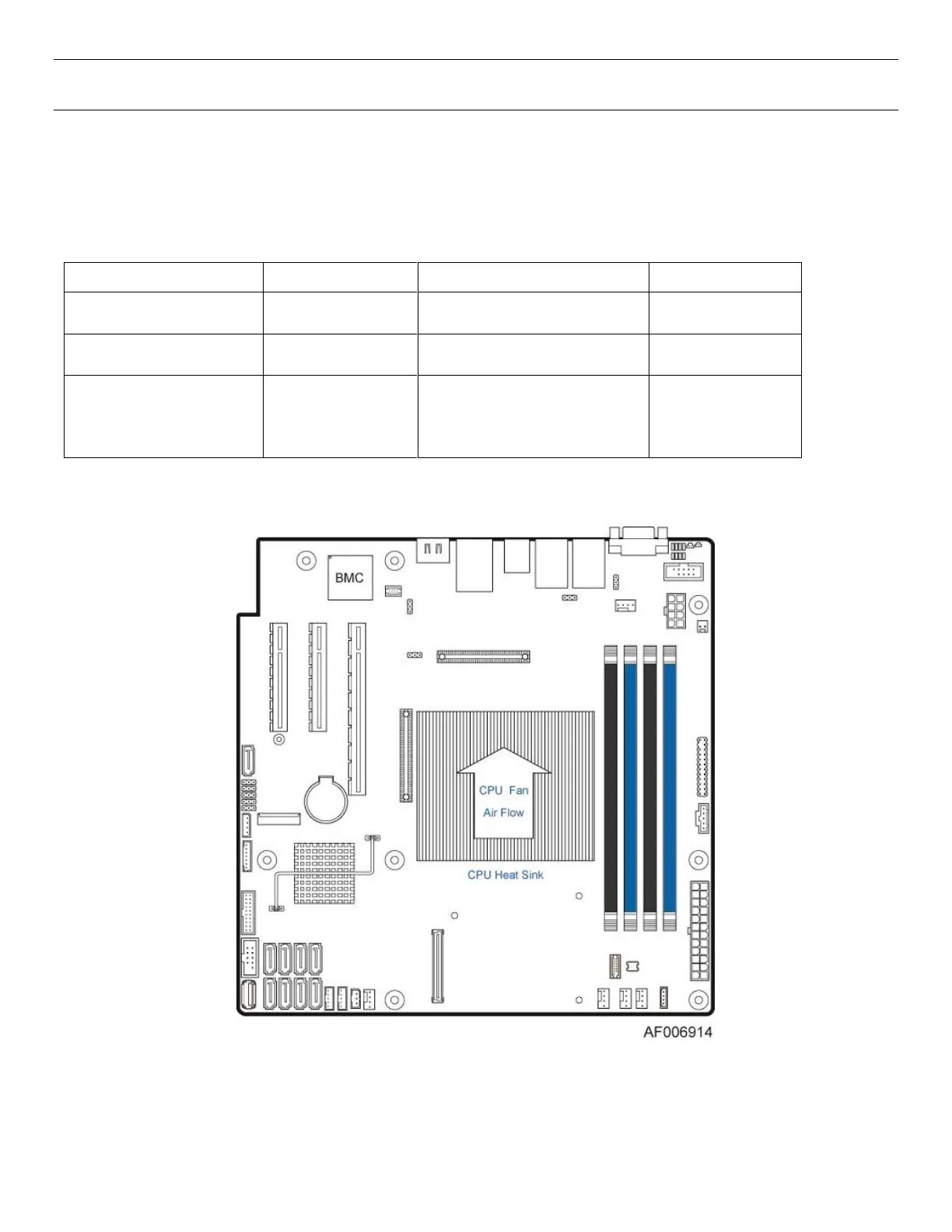

You must install the active processor heat sink with the airflow direction as shown in the following figure.
Figure 30. Processor Heatsink Installation
