2.2.1 Server Board Connector and Component Layout

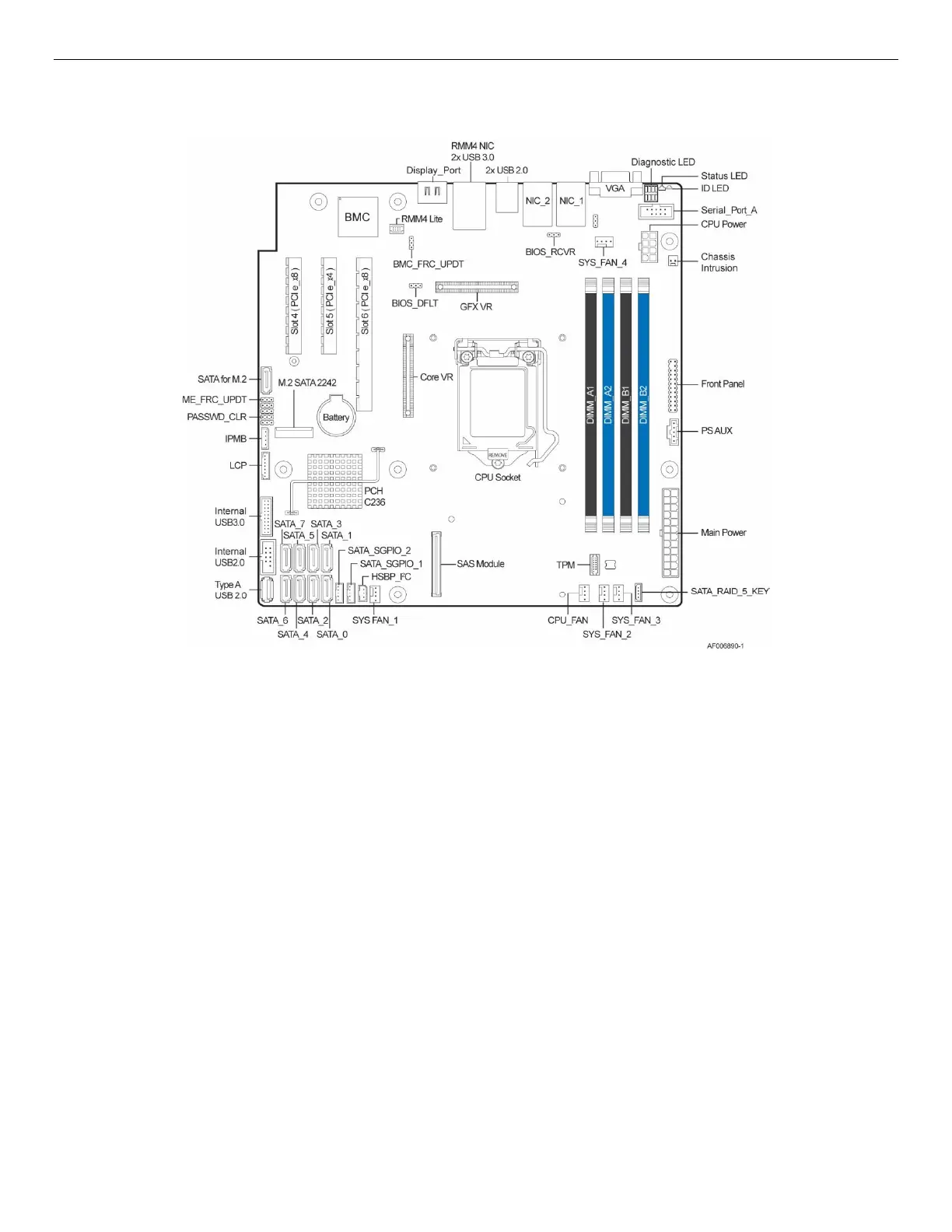

Each connector and major component is identified in the figure below.
Figure 2. Intel
®
Server Board S1200SPL Layout
