Intel® Server Board S1200SP Family Technical Product Specification
79

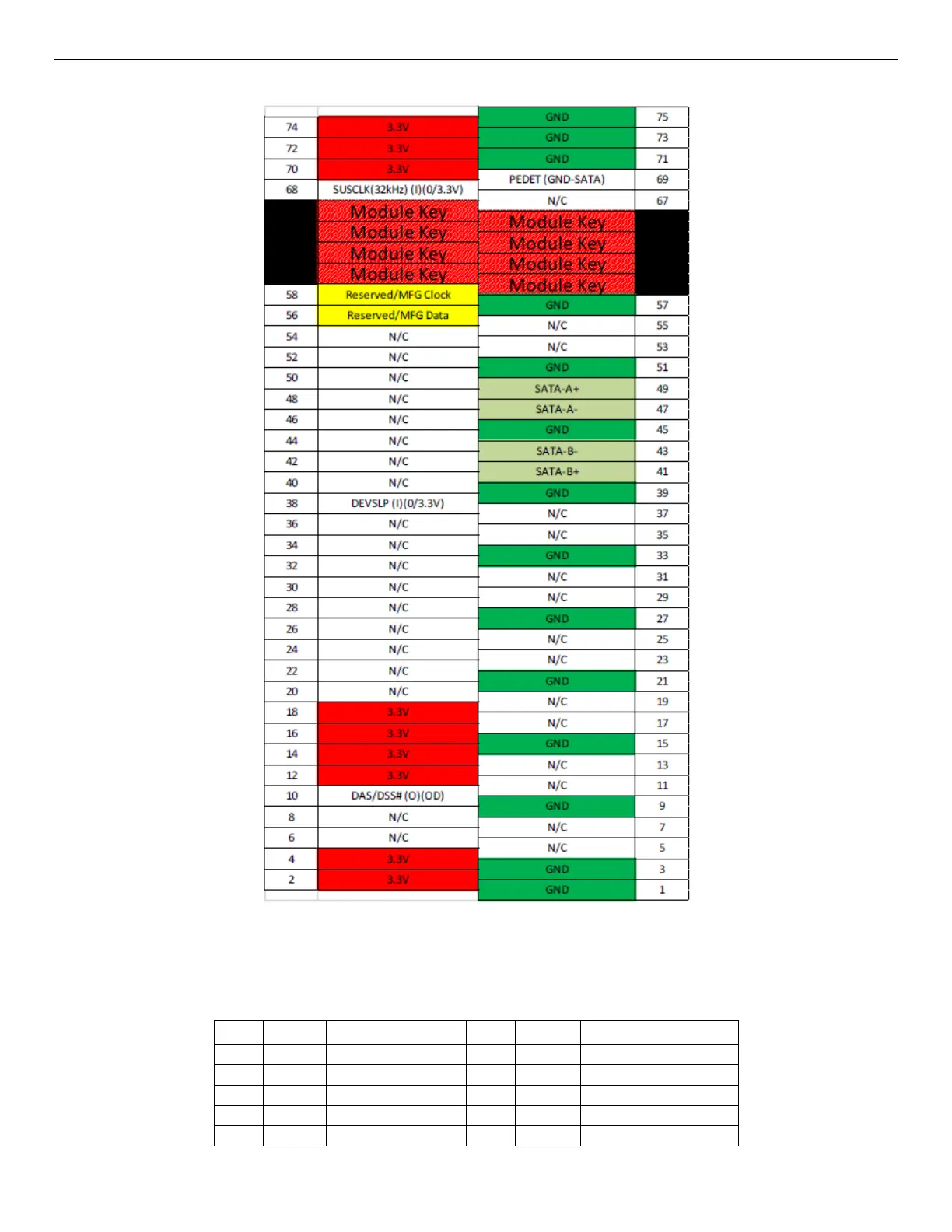

Table 39. M.2 SATA Connector Pinout
8.5.5 Serial Port Connector
The server board provides one internal 9-pin Serial header. The following tables define the pin-out.
Table 40. Internal 9-pin Serial Header Pin-out (J9A1)
Pin
IO
Signal Name
Pin
IO
Signal Name
1
O
SPA_DCD
2
O
SPA_DSR
3
O
SPA_SIN_N
4
I
SPA_RTS
5
I
SPA_SOUT_N
6
O
SPA_CTS
7
I
SPA_DTR
8
O
SPA_RI
9
GND
GND
