Intel® Server Board S1200SP Family Technical Product Specification
14

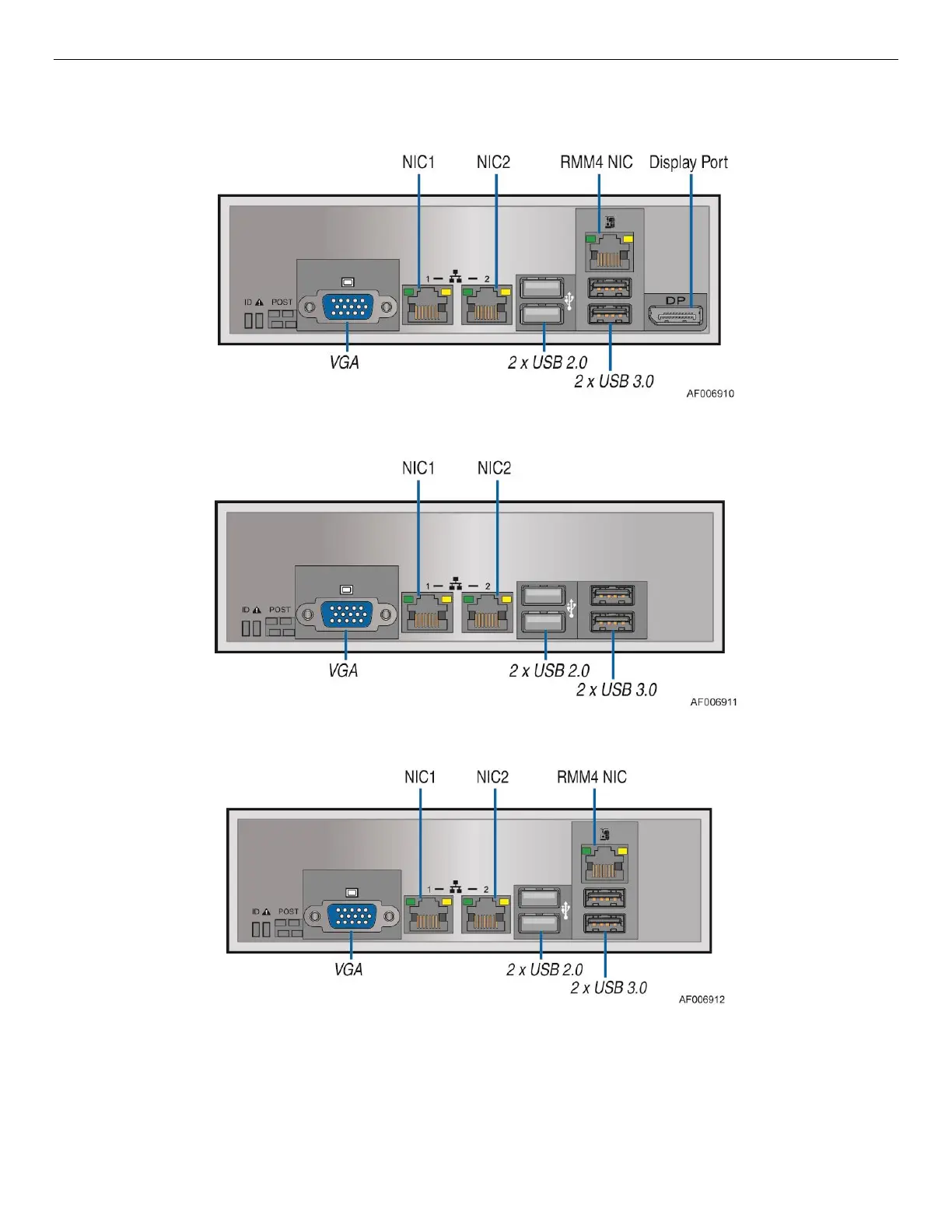

2.2.3 Server Board Rear I/O Layout
The following drawing shows the layout of the rear I/O components for the server boards.
Figure 11. Intel
®
Server Board S1200SPL Rear I/O Layout
Figure 12. Intel
®
Server Board S1200SPS Rear I/O Layout
Figure 13. Intel
®
Server Board S1200SPO Rear I/O Layout
