Intel® Server Board S2600CO Family TPS On-board Connector/Header Overview
Revision 1.4
Intel order number G42278-004
93
Pin Signal Name Pin Signal Name
5 GND 6 SPA_DSR
7 SPA_RTS 8 SPA_CTS
9 SPA_RI
8.6.2 Serial Port B Connector
Serial-B is an internal 10-pin DH-10 connector labeled as SERIAL_B and has the following pin-
out:
Table 51. Serial-B Connector Pin-out (SERIAL_B)
Pin Signal Name Pin Signal Name
1 SPA_DCD 2 SPA_DSR
3 SPA_SIN_N 4 SPA_RTS
5 SPA_SOUT_N 6 SPA_CTS
7 SPA_DTR 8 SPA_RI
9 GND
8.6.3 Video Connector
The following table details the pin-out definition of the external VGA connector:
Table 52. Rear VGA Video Connector Pinout (VGA)
Pin Signal Name
1 RED
2 GREEN
3 BLUE
4 N/C
5 GND
6 GND
7 GND
8 GND
9 P5V (fuse not populated)
10 GND
11 N/C
12 DDC_SDA
13 HSYNC
14 VSYNC
15 DDC_SCL

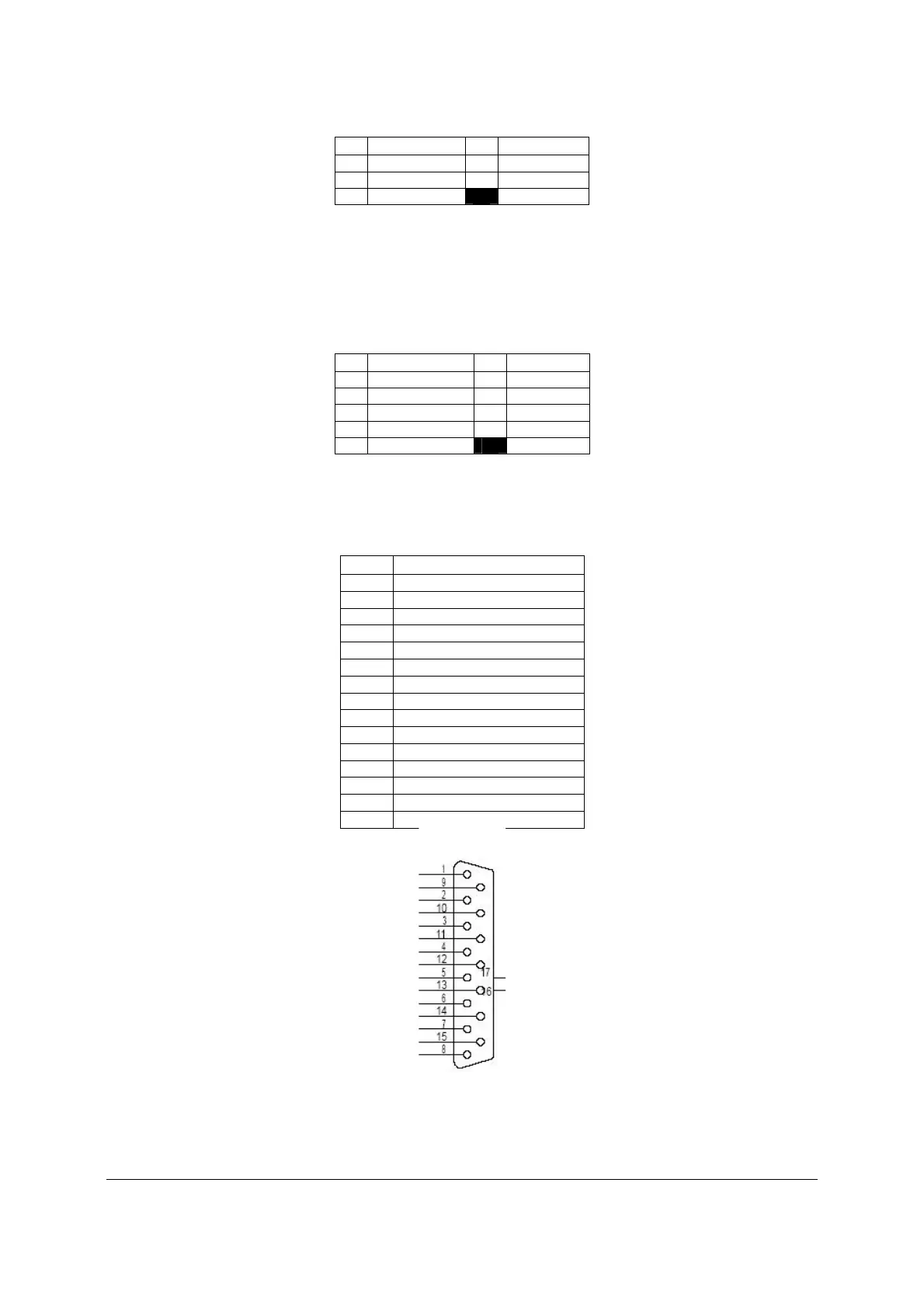

Figure 21. Other Connectors and Headers
