3.3.3.1 eUSB SSD Support
The server board provides support for a low profile eUSB SSD storage device. A 2mm 2x5-pin
connector labeled “eUSB SSD” is used to plug this small flash storage device into.
3.3.4 On-board Serial Attached SCSI (SAS)/Serial ATA (SATA)/RAID Support and
Options
The Intel
®
C600-A chipset provides storage support by two integrated controllers: Advanced
Host Controller Interface (AHCI) and SCU. By default the server board will support up to 6
SATA ports: Two single 6Gb/sec SATA ports routed from the AHCI controller to the two white
SATA connectors labeled “SATA_0” and “SATA_1”, and four 3Gb/sec SATA ports routed from
the SCU to the blue SATA/SAS port connectors labeled “SATA/SAS_0”, “SATA/SAS_1”,
“SATA/SAS_2”, “SATA/SAS_3”.
AHCI SATA_0 port also supports high profile, vertical SATA DOM header with onboard power.
Note: The connectors labeled “SATA/SAS_4” to “SATA/SAT_7” is NOT functional by default
and is only enabled with the addition of an Intel
®
RAID C600 Upgrade Key option supporting 8
SATA/SAS ports.
The server board is capable of supporting additional chipset embedded SAS, SATA, and RAID
options from the SCU controller when configured with one of several available Intel
®
RAID C600
Upgrade Keys. Upgrade keys install onto a 4-pin connector on the server board labeled
“STRO_UPG_KEY”.

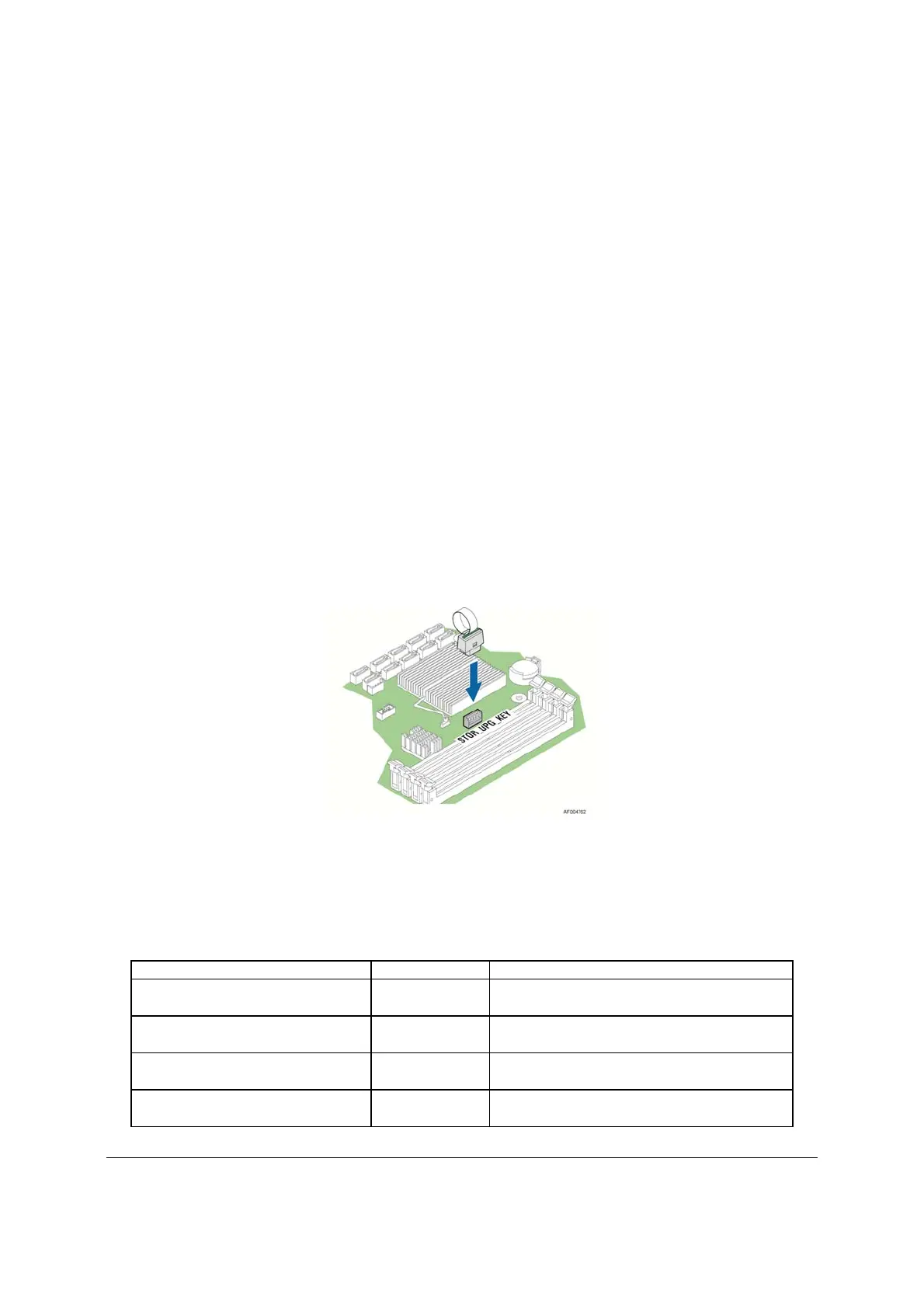

Figure 16. Intel
®
RAID C600 Upgrade Key Connector
The following table identifies available upgrade key options and their supported features.
Table 10. Intel
®
RAID C600 Upgrade Key Options
Intel
®
RAID C600 Upgrade Key Options Key Color Description
Default – No option key installed N/A
4 Port SATA with Intel
ESRT RAID 0,1,10 and
Intel
®
RSTe RAID 0,1,5,10
RKSATA4R5 Black
4 Port SATA with Intel
ESRT2 RAID 0,1, 5, 10
and Intel
®
RSTe RAID 0,1,5,10
RKSATA8 Blue
8 Port SATA with Intel
ESRT2 RAID 0,1, 10
and Intel
®
RSTe RAID 0,1,5,10
RKSATA8R5 White
8 Port SATA with Intel
ESRT2 RAID 0,1, 5, 10
and Intel
®
RSTe RAID 0,1,5,10
