Workstation Board Features
Intel® Workstation Board S5520SC Service Guide 24

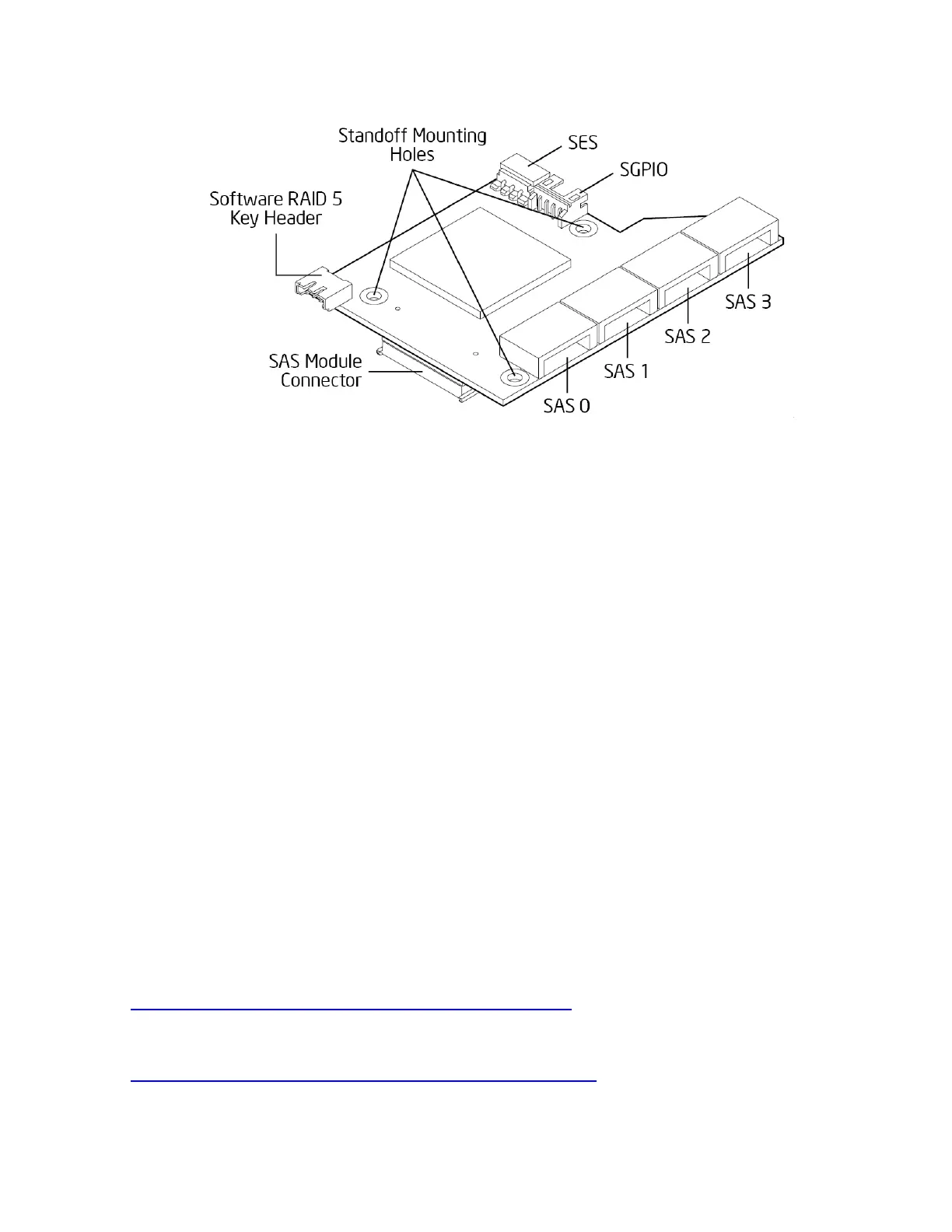

Figure 7. Intel
®
SAS Entry RAID Module
SAS RAID Support
The BIOS Setup Utility provides drive configuration options on the Advanced | Mass Storage Controller Configuration setup
page for the Intel
®
SAS Entry RAID Module AXX4SASMOD, some of which affect the ability to configure RAID.
The “Intel
®
SAS Entry RAID Module” option is enabled by default once the Intel
®
SAS Entry RAID Module AXX4SASMOD is
present. When enabled, you can set the “Configure Intel
®
SAS Entry RAID Module” to either “LSI* Integrated RAID” or “Intel
®
ESRTII” mode.
IT/IR RAID Mode
Supports entry hardware RAID 0, RAID 1, and RAID 10/10E, and native SAS pass through mode.
Intel
®
ESRTII Mode
Intel
®
Embedded Server RAID Technology II (Intel
®
ESRTII) feature provides RAID modes 0, 1, and 10. If RAID 5 is needed
with Intel
®
ESRTII, you must install the optional Intel
®
RAID Activation Key AXXRAKSW5 accessory. This activation key is
placed on the SAS Software RAID 5 connector located on the Intel
®
SAS Entry RAID Module AXX4SASMOD. For installation
instructions, see the documentation included with the SAS Module AXX4SASMOD and the activation key.
When Intel
®
Embedded Server RAID Technology II is enabled with the SAS Module AXX4SASMOD, enclosure management
is provided through the SAS_SGPIO or SES connector on the SAS Module AXX4SASMOD when a cable is attached
between this connector and the backplane or I
2
C interface.
✏
NOTE
For help with navigating the BIOS Setup utility, see the Intel
®
Workstation Board S5520SC Technical Product Specification.
For information on how to configure RAID, see the RAID software user’s guide at:
http://www.intel.com/support/motherboards/server/S5520SC/howto.htm
For help with enclosure management cabling, see the Enclosure Management Cabling Guide for Pedestal Systems with Hot-
swap Drive Backplanes. This guide is available at:
http://support.intel.com/support/motherboards/server/S5520SC/compat.htm
