Intel® Workstation Board S5520SC Service Guide 30
9. Power off the system and revert the BIOS recovery jumper position to default (pin 1-2).
10. Power on the system.
CAUTIONS
DO NOT interrupt the BIOS POST during the first boot after recovery!
Clearing the Password
If the user or administrator password(s) is lost or forgotten, moving the password clear jumper into the “clear” position clears
both passwords. Before setting a new password(s), you must restore the password clear jumper to its original position. The
password clear jumper is located on jumper block J1E4.
1. Power down the server. Do not disconnect the power cord.
2. Open the chassis. For instructions, see your server chassis documentation.
3. Move the jumper (J1E4) from the default operating position, covering pins 1 and 2, to the password clear position,
covering pins 2 and 3.

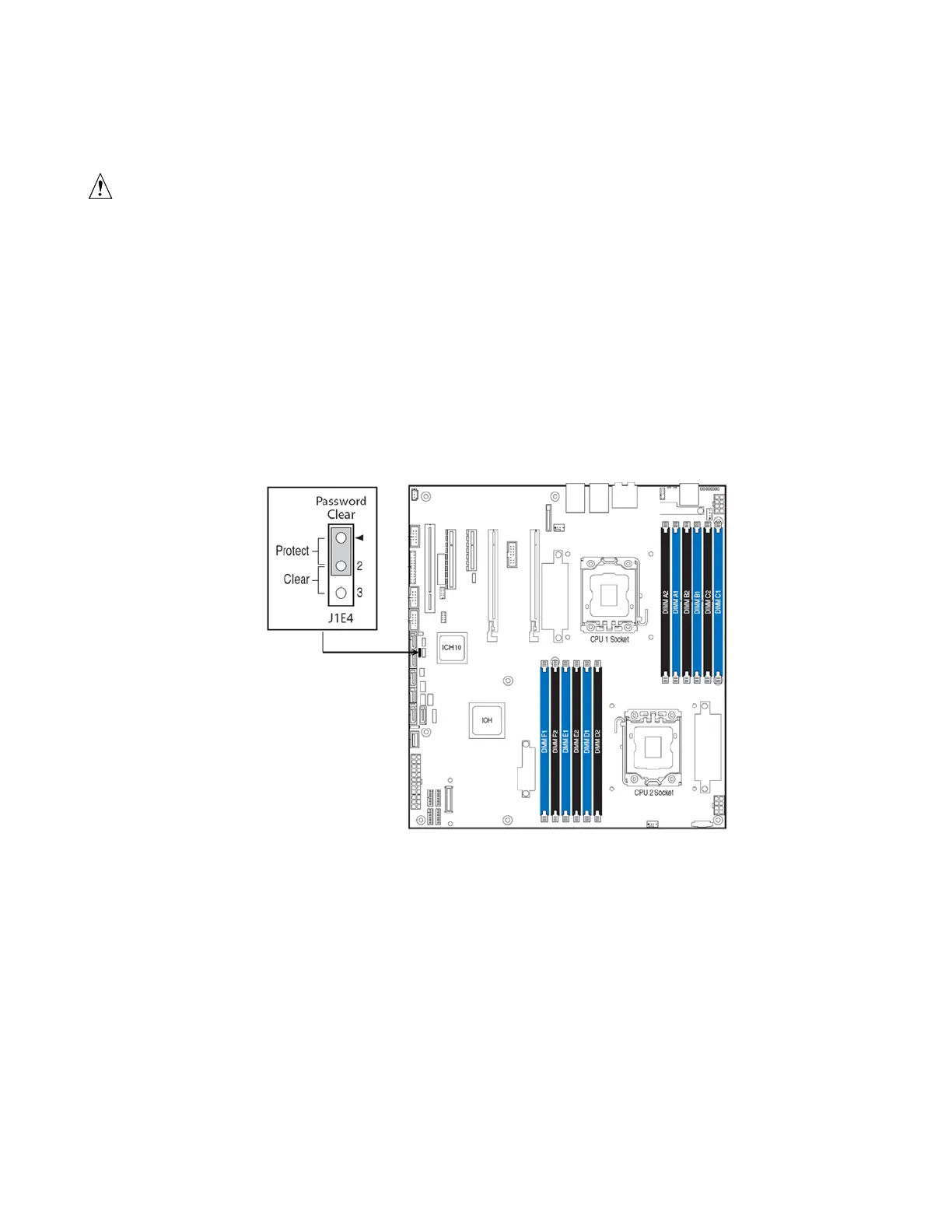

Figure 9. Password Clear Jumper
4. Close the server chassis.
5. Power up the server and then press <F2> to enter the BIOS menu to check if the password is cleared.
6. Power down the server.
7. Open the chassis and move the jumper back to its default position, covering pins 1 and 2.
8. Close the server chassis.
9. Power up the server.
The password is now cleared and you can reset it by going into the BIOS setup.
