Workstation Board Features
Intel® Workstation Board S5520SC Service Guide 13
Connector and Component Locations

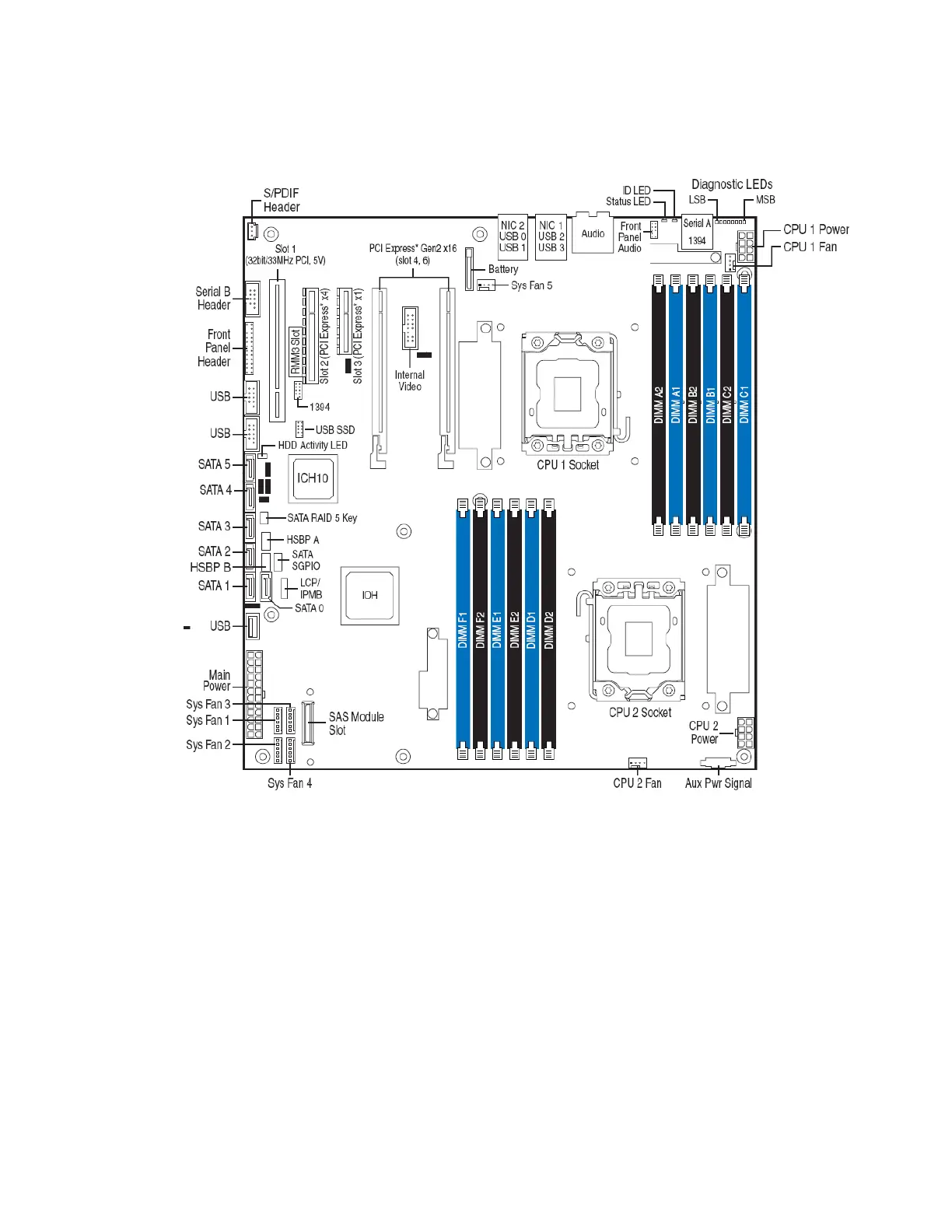

Figure 2. Intel
®
Workstation Board S5520SC Connector and Component Locations
