Intel® Storage System SSR212MA Feature Summary
Revision 1.4 15
1.8.1 Front/Rear Panel Controls and Indicators
The front/rear panel controls and indicators are defined below:
Table 3. Rear Control Button Functions
Power button Toggles the system power on/off.
Reset button Reboots the system.
Table 4. Front LED Indicator Status
Power On Continuous green light indicates the system has power applied to it.
No light indicates the system does not have power applied to it (other than 5 V
standby power).
Fault Continuous amber light indicates fault present.
Enclosure ID The blue system identification LED is used to help identify a system for servicing.
This is especially useful when the system is installed within a high density rack or
cabinet that is populated with several similar systems.

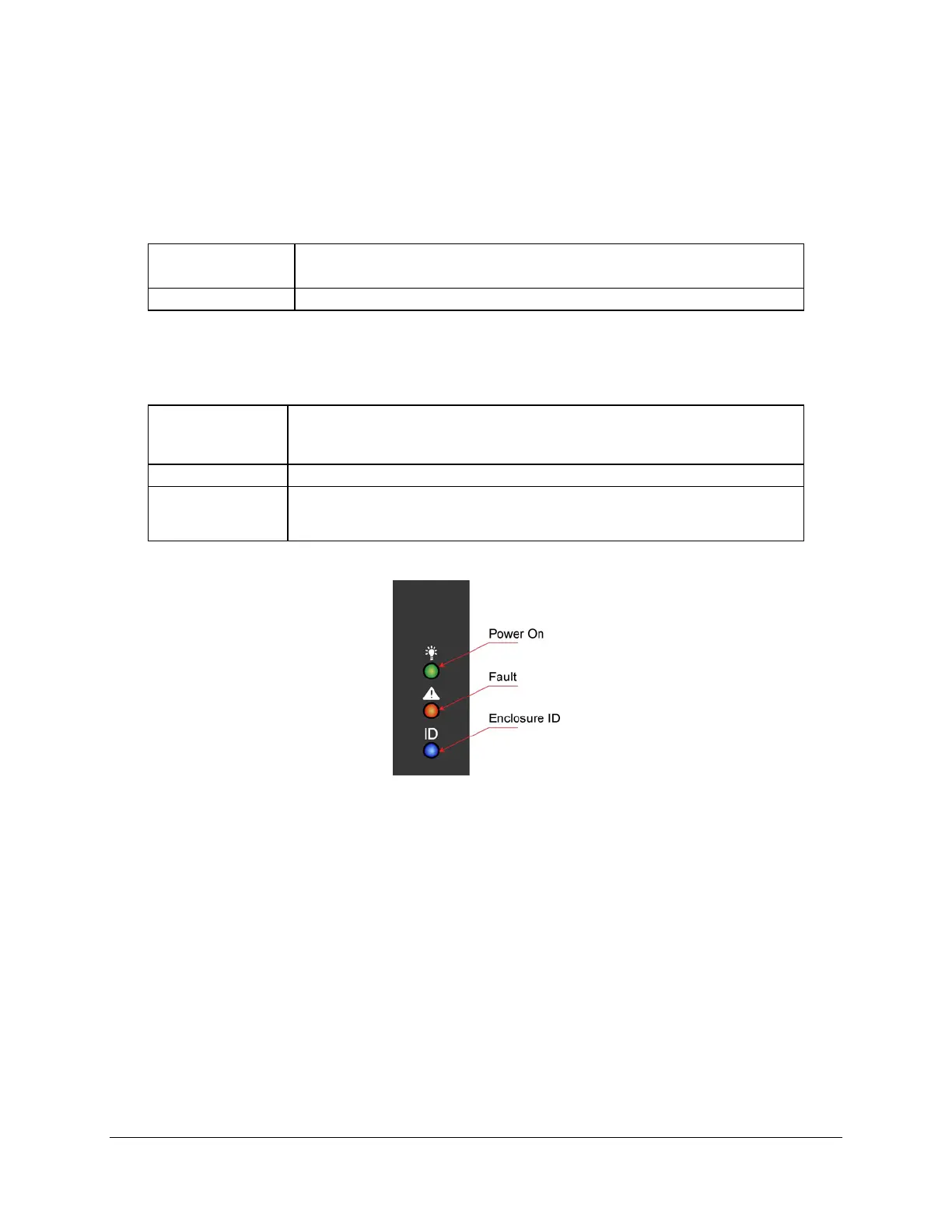

Figure 8. Front Panel
1.9 Fan Monitoring
The fans provided in the Storage System SSR212MA contain a tachometer signal that can be
monitored by the SAN management software.
1.10 Storage System Security
The storage system includes a preinstalled intrusion switch that can be monitored by SAN
management software. When the cover is opened, the switch, located on the left side of the
chassis transmits a signal to the Intel Management Module (IMM) on the system board. Through
SAN management software, the system can be programmed to respond to an intrusion by
powering down or by sending an alert.
